| Prod Model: |
ISO U(A)-P-F Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
0-1kHz/0-5kHz/0-10kHz |
| Output: |
0-75mv/0-2.5V/0-5V/0-10V/0-10mA/0-20mA/4-20mA |
| Isolation Mothod: |
Photoelectricity Isolation |
| Isolation Voltage: |
3000VDC |
| Package: |
SIP16pin |
Product Description

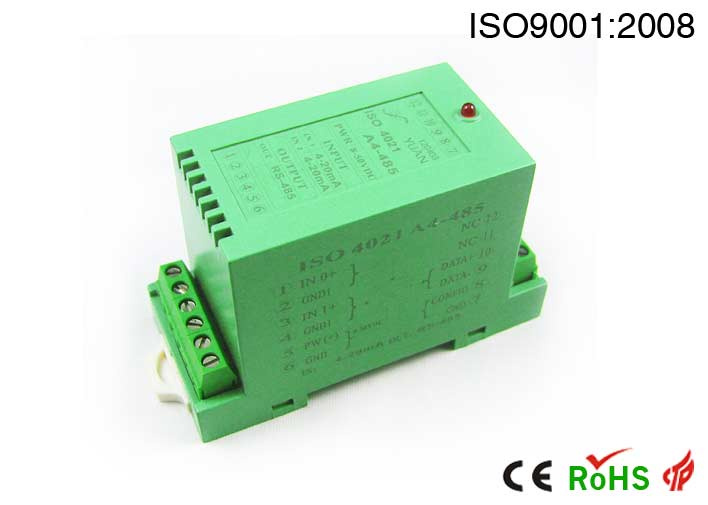

Analog (Voltage / Current) to Frequency Signal Converter
Features:
Precision level: 0.1 0.2 0.5
Very high linearity value(nonlinearity < 0.1%)
APS/signal input/ signal output: 3OOOVDC tri-isolation
APS: 5VDC, 12VDC, 24VDC single power supply
0-1KHz/0-5KHz/0-10KHz frequency signal isolation converting to standard 0-75mV/0-2.5V/0-5V/0-10V Voltage signal or 0-10mA/0-20mA/4-20mA current signal
Provide input isolation power: 5VDC/10mA
Small size, standard SIP-16PIN (UL94V-0)
Industrial temp. Range: -20~+85 º C
Applications:
Sine wave, square wave and saw tooth wave signal isolation amplification and conversion
Sensor signal acquisition, isolation and conversion
Transducer ( FA ) frequency signal acquisition and control
Generator, motor and other rotating equipment speed monitoring
Transformer operating frequency detection
Instrument and sensor signal transmitting & sending
Non-electric quantity signal transferring
Brief introduction:
ISO series frequency signal isolation converter is hybrid integfrequencyd circuits for an isolation frequency signal in proportion to convert the standard signal. These product integ frequencys a group of multi-channel high-isolation DC / DC power supply and a high-speed frequency signal isolation converter, applicable to any frequency signal isolation transform. SMD process structures and new isolation technologies allow the device to achieve: 3000VDC isolation between the auxiliary power supply, signal input, signal output. And to meet the industrial wide temperature, humidity, vibration scene adverse work environment requirements. ISO series frequency signal isolation converter is very easy to use, with minimal external components to the frequency signal isolation transmitter.
|
|
Signal Input |
Signal output
(Hz) |
Assistant Power
Supply (VDC) |
Power
Consumption |
Isolation
(DC) |
Accuracy
(%) |
Temp.
Drift |
Operating
Temp. |
Non-
Linearity
(%) |
Response
Time |
|
V |
0-5V
0-10V |
0-5K
0-10K
1-5K
(5V impulse) |
5/12
15/24 |
1W |
3000V |
0.1 0.2 0.5 |
50 |
-25-+70
Celsius
degree |
less than
0.2 |
less than
50mS
|
|
I |
0-1Ma
0-10mA
0-20Ma 04-20mA |
1-5K 0-5K
0-10K
(open collector) |
|
|
|
|
|
|
|
|
