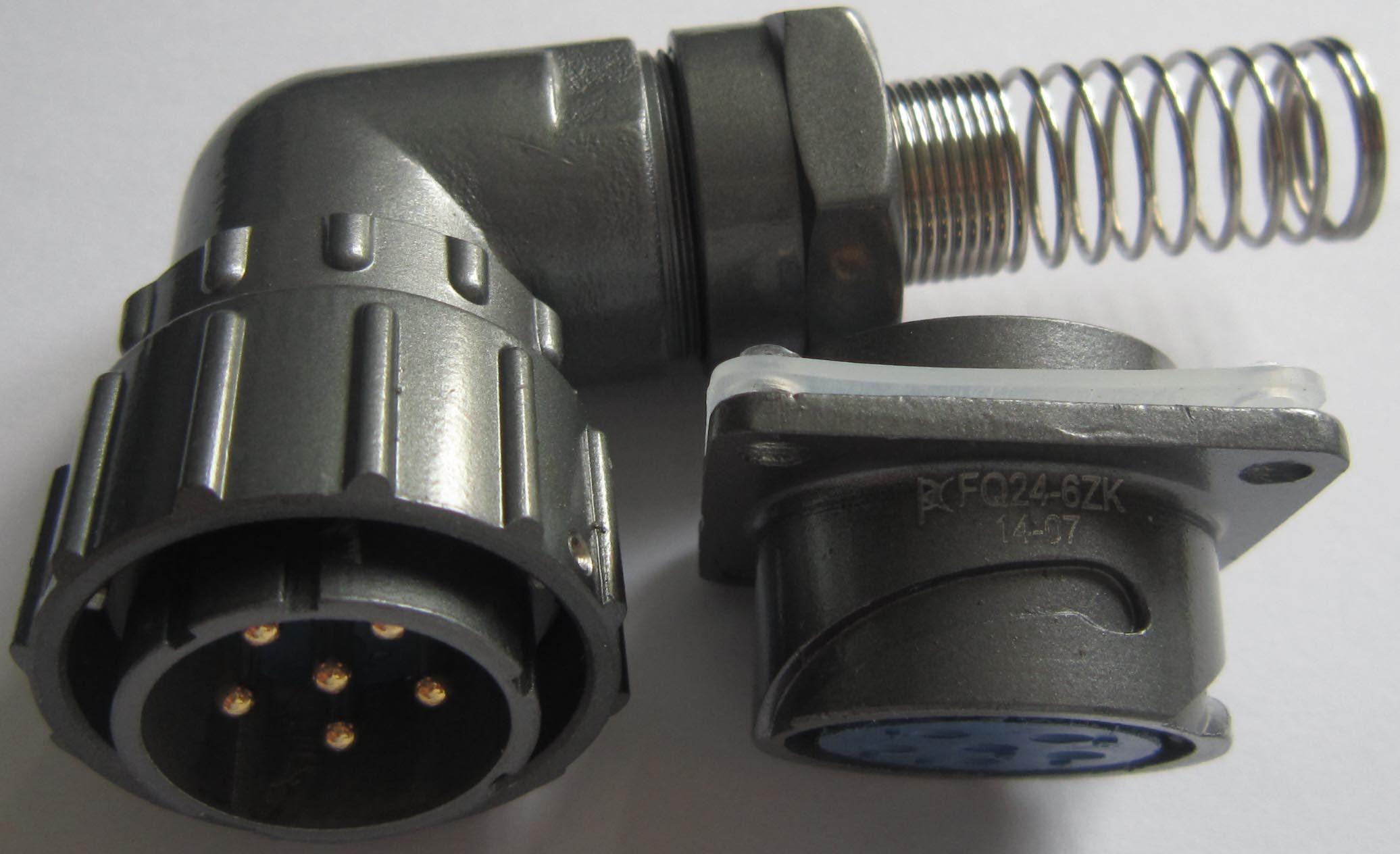

Angle Water Proof Connector

Name: Angle Water Proof Connector
Brand: all-electronics-online.com
SKU: 780218495
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 8.9-11.98/Set
Trade Terms:	FOB
Min Order:	10/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Water proof connector, FQ series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. IP67 water tight.
Product Ordering
FQ 24 - 6 TR J - 12
1. Name of series: FQ
2. Shell size: 24
3. Number of contacts: 1,2,3,4, 6,10, 19, 26
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle,
Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Wire gauge: 6, 7, 8, 9, 10, 12, 14, 16
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min. (IP67)

Temperature	Relative humidity		Atmosphere		Vibration		Shock
-55° C~+85° C	(90~96)% at40° C		4.4KPa		10~200Hz, 150m/s²		490m/s²
Current		Voltage		Contact resistance		Endurance
2A~5A		250V		≤ 10mΩ		500cycles
10A-25A		400V		≤ 5mΩ		500cycles

Environment	Voltage proof	Insulation resistance
Normal	1200V	≥ 1000MΩ
High temperature	1000V	≥ 500MΩ
Moisture	800V	≥ 100MΩ
Low pressure	400V	-

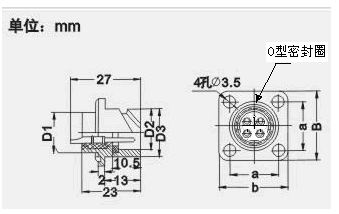

FQ24 dimensions:

Prod Model:	FQ24-6TRJ+ZK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Value:	Cheaper Cost
Item:	Fq24-6trj+Zk
Size:	Fq24-2
Size1:	Fq24-19
Out Look:	Angle Plug
Size2:	Fq24-10

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
