DIN45326 Item Circular Water Tight Connector (FS1)

Name: DIN45326 Item Circular Water Tight Connector (FS1)
Brand: all-electronics-online.com
SKU: 622287822
Availability: InStock
Rating: 4.7 (44 reviews)

Price:	US $ 9.9-12/Set
Trade Terms:	FOB
Min Order:	100/Set
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

DIN45326 connectors, The connectors of series FS1 are available with 3-8 contacts, screw coupling, can interchange with Amphenol C 091 A /B/D & Binder 423 series. Meet DIN45326. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application. Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.

Product Ordering

FS1 6 T J - 8 C

1 2 3 4 5 6

1.Name: FS1 type water proof connector

2.Number of contacts: 3,4,5,6,7,8 pcs

3.Connector type: T:Plug; Z1:circular receptacle,Z2:hexangular receptacle,

Z3:square receptacle,ZA: PCB mount receptacle

4.Contacts type: J:pin; K:socket,J1:Crimp pin,K1:crimp socket

5.Meet cable diameter: 6-9 mm

6.Protect cap: C:metal cap,C1:Hard Plastic cap,C2:soft plastic cap

Technical characteristics:

Temperature	Relative humidity	Vibration	Shock	Endurance
-55°C~ +85°C	90-95% at 40 ºC	10~1000Hz 196m/s²	490m/s²	1000 cycles
Contacts	Current	Voltage	Contacts resistance
1.5	5A	60-250VAC	≤3mΩ

Dimensions and outlook:

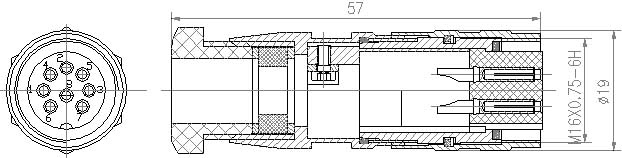

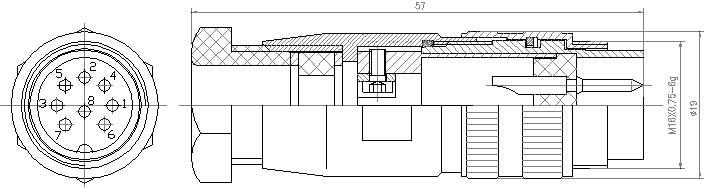

1.Plug:Solder contacts plug:FS1-8TK/FS1-8TJ:

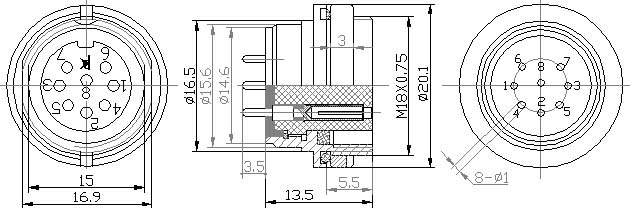

Circular Receptacle with PCB mount contacts:PCB-Z1JA/Z1KA:

Prod Model:	FS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Small M16
Value:	Cheaper
Shell Plating:	Nickel Plated
Contacts Plating:	Gold Plated
Sum Of Contacts:	8 Pins
Size1:	Fs1-8tk-8
Size2:	Fs1-8tj-8
Application:	Battery
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Round
Contact Termination Form:	Welding Connection
Production Process:	Machinizing
Brand:	Kaipu

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.
