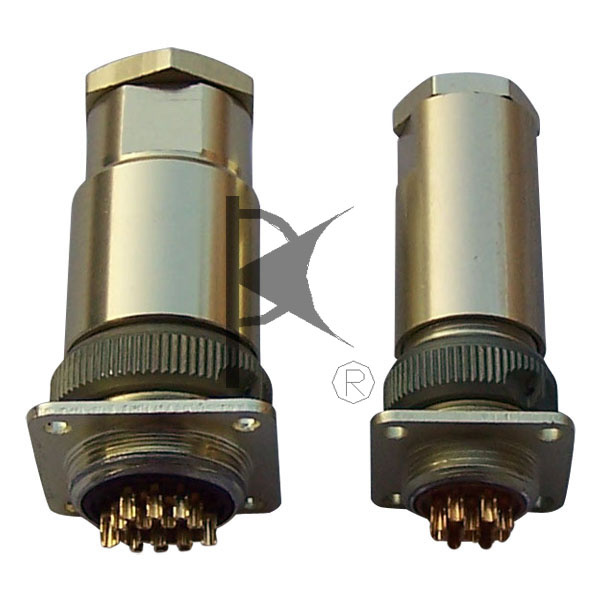

Circular Connectors (PC-10 Type)

Name: Circular Connectors (PC-10 Type)
Brand: all-electronics-online.com
SKU: 640816005
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	US $ 3-3.7/Set
Trade Terms:	FOB
Min Order:	100/Set
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

PC type circular connectors have the features of small size, light weight, convenient application with threaded-coupling connection. It can be interchanged with Russian type PC, They are widely used for the electrical connection between electrical equipments and instruments.

Product Ordering
PC -- 4 Z
1 2 3
1. Name: PC series connectors
2. Number of contacts: 4, 7, 10, 19, 32, 50
3. T-plug, Z-receptacle, P-Cable shell, ZP- cable receptacle

Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40°C~ +105°C	(92~98)%, at40+2°C	101.33KPa~6.67Pa	10~2000Hz, 196m/s²	392m/s²	500 cycles

Current	Voltage	Contact resistance	Contact Ø
3A	200V	≤8mΩ	Ø1mm

Environment	Voltage proof	Insulation resistance
Normal	1000V	≥1000MΩ
High temperature	700V	≥500MΩ
Moisture	500V	≥50MΩ
Low pressure	200V	-

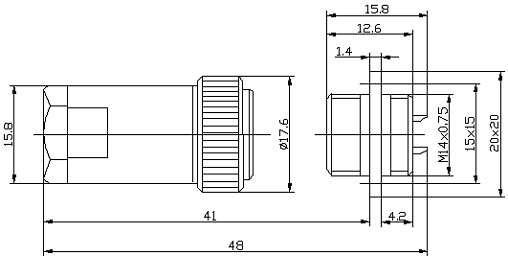

Dimensions

PC-10T/Z

Prod Model:	PC-10TB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	PC-10
Size1:	PC-10tpk
Size2:	PC-10zj
Size3:	PC-10zpj
Volume:	Small
Weight:	Light
Connecting:	Thread Coupling
Application:	Mobile Phone
Environmental Protection:	General
Connection Mode:	Threaded Connection
Shape:	Round
Contact Termination Form:	Welding Connection
Character:	Normal
Production Process:	Machinizing
Brand:	Kaipu
