ANSI 52-1 Porcelain Disc Suspension Insulator

Name: ANSI 52-1 Porcelain Disc Suspension Insulator
Brand: all-electronics-online.com
SKU: 838227535
Availability: InStock
Rating: 4.4 (142 reviews)

Price:	US $ 3-3.1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Porcelain disc suspension insulator is designed to be assembled together to be insulator strings (also called strain insulators), which can divide into Ball & Socket Type and Clevis & Tongue Type.
This structure enables them form the insulator string by fitting into themselves one another as per voltage requirement.

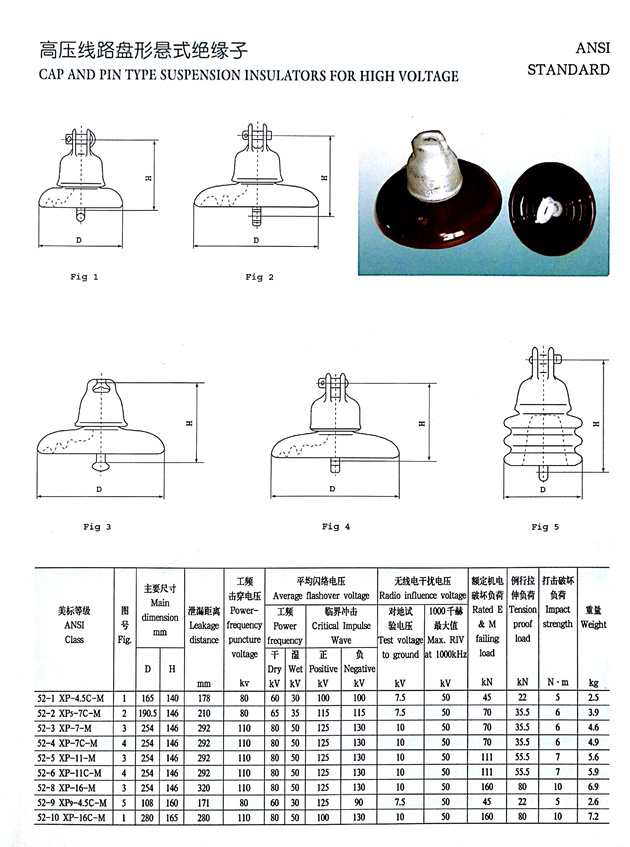

ANSI Class/Standard		ANSI 52-1
Unit Spacing (H) - mm		140mm
Nominal Diameter (D) -mm		165mm
Creepage Distance		178mm
Power frequency puncture voltage		80kV
Power frequency flashover voltage	Dry	60kV
	Wet	30kV
Critical impulse flashover voltage	Positive	100kV
	Negative	100kV
Radio influence voltage	Test voltage to ground	7.5kV
	Max. RIV at 1000kHz	50kV
Rated E & M failing load		45kN
Tension proof load		22kN
Impact strength		5N.m
Weight		2.5kg

Technical Specifications:

A ceramic suspension insulator set complete with the fittings is used to carry a line conductor or conductors at its lower end.
The top of the ceramic suspension insulator is fixed to the crossarm of the tower.
Glaze Color: Brown, Gray, White

Under standard ANSI C29.2 , IEC60383
ANSI 52-1 / ANSI 52-2 / ANSI 52-3 / ANSI 52-4 / ANSI 52-5 / ANSI 52-6 / ANSI 52-8 / ANSI 52-9 / ANSI 52-10

Certificates:

FAQ:

Q1. What's the payment term ?
A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy.
    Or 100% irrevocable LC at sight.

Q2. How to buy your ideal products?
A. You can provide us with your drawings with specifications, we will produce as per your drawing.
     Or we can design as your requirements if you do not have a clear plan.

Q3. What is your Packing/Package ?
A. Standard export packing or Customized packing as your request.

Q4. Would you accept to use our logo ?
A.  OEM/ODM can be acceptable.

Q5. What kind of certificate you have ?
A. Our company already achieve ISO9001 certificates and we have test reports.

Q6. What else can I do for you?
A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique
    & other aspects.

Contact Us:

Nanjing Rainbow Electric Co., Ltd
Add:No.396 Heyan Road, Nanjing, Jiangsu China
Tel: +86-025-86705902
Fax: +86-025-86705902
Post: 210028
Website:http//www.insulatormfg.com

Prod Model:	ANSI 52-1
Unit Spacing:	140mm
Norminal Diameter:	165mm
Creepage Distance:	178mm
E&M Failing Load:	45kn
Net Weight:	2.5kg
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	A Type Insulator
