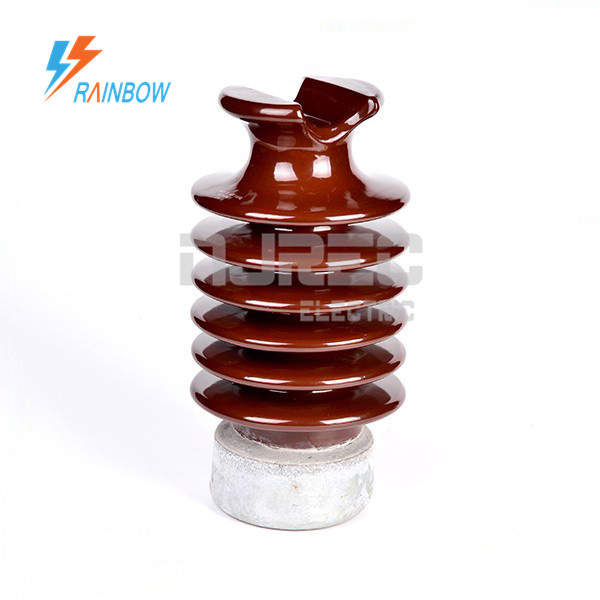

ANSI 57-2 Porcelain Line Post Insulators

Name: ANSI 57-2 Porcelain Line Post Insulators
Brand: all-electronics-online.com
SKU: 838858165
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	US $ 6.5-6.82/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Nanjing Rainbow Electric Co.,Ltd manufactures a complete line of wet process porcelain line post insulators for application through 88 kV.
All insulators are solid core wet process porcelain and are manufactured and tested in conformance with ANSI Standard C29.7.

ANSI Class/Standard		ANSI 57-2
Dimensions(ln)
Dring Arcing Distance		7.8
Leakage Distance		11-1/2
Mechanical Values(kV)
Cantilever Strength(lbs)		2800lbs
Electrical Values(kV)
Typical Voltage Class		35kV
Low frequency flashover	Dry	110kV
	Wet	80kV
Impluse flashover voltage	Positive	180kV
	Negative	205kV
Radio influence voltage	Test voltage to ground	22kV
	Max. RIV at 1000kHz	100kV
Net Weight(lb)		19.1 lbs

Technical Specifications:
1-Tie Top type with Stud Base (Horizontal & Vertical Application):

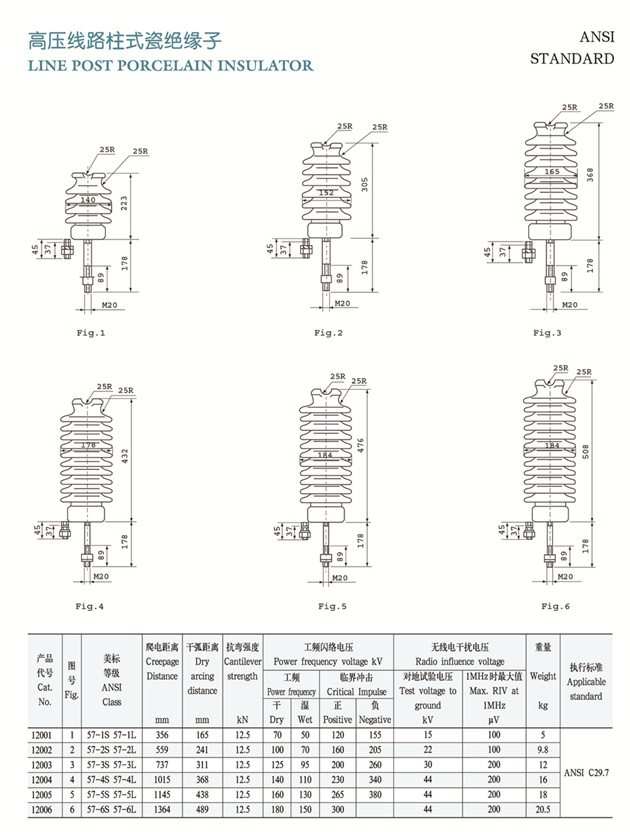

Porcelain Line Post Insulators of ANSI 57-1, 57-2, 57-3, 57-4, 57-5, 57-6

Glaze Color: Brown, Sky Gray, White, with Chocolate

Certificates:

FAQ:

Q1. What's the payment term ?
A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy.
    Or 100% irrevocable LC at sight.

Q2. How to buy your ideal products?
A. You can provide us with your drawings with specifications, we will produce as per your drawing.
     Or we can design as your requirements if you do not have a clear plan.

Q3. What is your Packing/Package ?
A. Standard export packing or Customized packing as your request.

Q4. Would you accept to use our logo ?
A.  OEM/ODM can be acceptable.

Q5. What kind of certificate you have ?
A. Our company already achieve ISO9001 certificates and we have test reports.

Q6. What else can I do for you?
A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique
    & other aspects.

Contact Us:

Nanjing Rainbow Electric Co., Ltd
Add:No.396 Heyan Road, Nanjing, Jiangsu China
Tel: +86-025-86705902
Fax: +86-025-86705902
Post: 210028
Website: http//www.insulatormfg.com

Prod Model:	ANSI 57-2
Cantilever:	2800lbs.
Neck Type:	F
Kv Rating:	34.5
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
