ANSI Standard Pin Type Insulators for Transmission Lines

Name: ANSI Standard Pin Type Insulators for Transmission Lines
Brand: all-electronics-online.com
SKU: 831072345
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 3-30/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

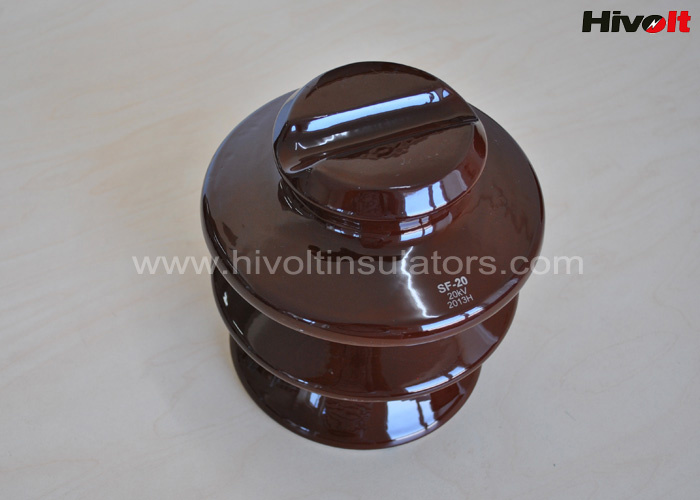

1) We offer high quality pin type insulators according to IEC, ANSI, BS standards and customers' specifications .

2) The colour of Pin type Insulator can be made as brown, light gray, white.

3) Voltage class of pin type insulator can be made upto 33 KV,10 KN.

4) Plain type or radio free type insulators are all available.

5) Insulator Spindle is available if needed.

6) Especially ANSI Standard pin insulator are in very good finish and high cantilever strength.

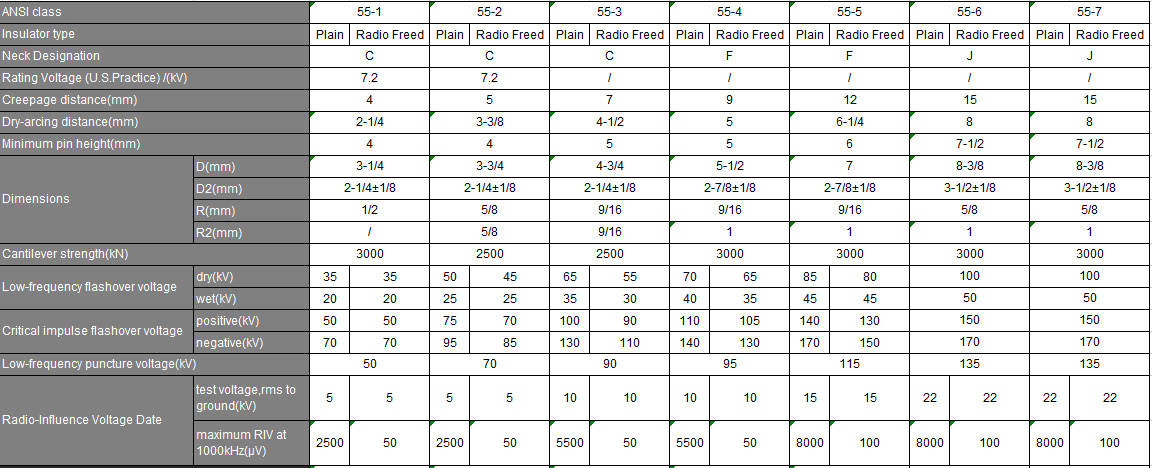

for example : 55-2, 55-3, 55-4, 55-5, 56-1, 56-2, 56-3, 56-4, 56-5 etc.

Prod Model:	ANSI 56-1
Type 1:	ANSI Standard
Type 2:	DIN Standard
Type 3:	ANSI HDPE
Type 4:	Pin Insulator
Application:	Low-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	12.5kn
Color:	Grey & Brown
Brand:	Hivolt

Dalian Hivolt Power System Co., Ltd. ( the former Hivolt Insulators Co., Ltd. ) is a reputable insulator manufacturer. It was set up in year 1990 with product range of porcelain insulators, composite insulators, and relevant metal fittings for transmission & distribution lines.

We look the quality as our company Life, and keep improving products quality. We strictly control the whole manufacturing process according to ISO 9001: 2008 edition, and focus on each quality details from raw material to insulators performance test. The powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards, BS standards or customer specifications. Porcelain glaze can be brown, light gray, white or blue. Composite insulators' shed colour can be light grey or red. In the mean time, we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co., Ltd. is a reputable supplier, we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price. We promise if any insulator from our company has quality defect, we will replace them at free charge in 12 months after receipt. We hope to set up a long term cooperation with you and enjoy the course together.
