Anti-corrosive Piezoresistive OEM Pressure Sensor MPM280
Features:
1. Anti-corrosive;
2. SS316L;
3. Constant power voltage supply;
Applications:
1,Level measurement;
2.Aviation;
3.Ocean;
4.Liquid pressure system;
5.Pressure meter;
6.Industrial process control;
7.Air conditioner
Options:
1.Sealed gauge, gauge, absolute;
2.Flush diaphragm type;
3.Assembled type;
4.Welded type;
5.Anti-corrosive type;
6.Tantalum diaphragm;
7.Titanium construction;
8.Different male thread connection
Specifications:
| Item* | Min. | Typ. | Max. | Units |
| Linearity | | ±0.15 | ±0.25 | %FS,BFSL |
| Repeatability | | ±0.05 | ±0.075 | %FS |
| Hysteresis | | ±0.05 | ±0.075 | %FS |
| Zero output | | ±1 | ±2 | mV DC |
| FS output** | 70 | | | mV DC |
| Zero thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
| FS thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
| Compensated temp. range | 0~50 | ºC |
| Working temp. range | -40~125 | ºC |
| Storage temp. range | -40~125 | ºC |
| Stability | | ±0.2 | ±0.3 | %FS/year |
*Testing at basic condition,G: Gauge; A: Absolute; S: Sealed gauge
** 0BG, FS output ≥45mV
0AG, FS output ≥60mV
02A, 03A, 02GY, 03GY, FS output ≥45mV
07A, 08A, 07GY, 08GY, FS output ≥60mV |

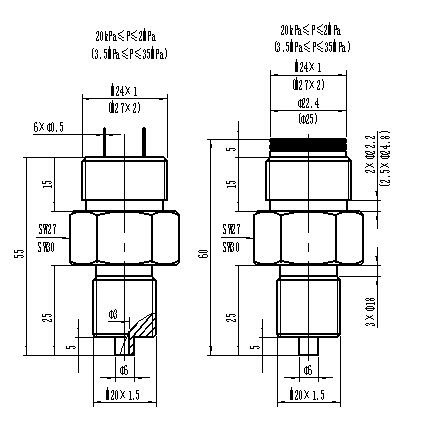

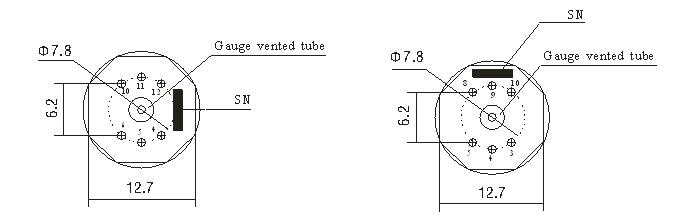

Outline Construction:
(Unit:mm)
Order guide:
MPM280(TH/TS/HHTi)* | Piezoresistive OEM Pressure Sensor |
| | Range code | Pressure range | Ref. | Range code | Pressure range | Ref. |
0B | 0kPa~20kPa | G | 12 | 0MPa~2MPa | G.A |
0A | 0kPa~35kPa | G.A | 13 | 0MPa~3.5MPa | G.S.A |
02 | 0kPa~70kPa | G.A | 14 | 0MPa~7MPa | S.A |
03 | 0kPa~100kPa | G.A | 15 | 0MPa~10MPa | S.A |
07 | 0kPa~200kPa | G.A | 17 | 0MPa~20MPa | S.A |
08 | 0kPa~350kPa | G.A | 18 | 0MPa~35MPa | S.A |
09 | 0kPa~700kPa | G.A | 19 | 0MPa~70MPa | S.A |
10 | 0kPa~1000kPa | G.A | 20 | 0MPa~100MPa | S.A |
| | Code | Pressure type |
G | Gauge |
A | Absolute |
S | Sealed gauge |
| | Code | Pressure connection | Installation |
0 or null | O-ring |
H1 | M24×1 male (assembled, P≤2MPa) | C1~C11 are available for pressure connections for both assembled and welded type |
H2 | M27×2 male (assembled, P≤70MPa) |
H3 | M24×1 male (welded, P≤2MPa) |
H4 | M27×2 male (welded, P≤35MPa) |
C1 | M20×1.5 male, face type seal | Pressure connection options for assembled or welded type |
C2 | G1/4 male |
C3 | G1/2 male |
C4 | G1/4 female |
C5 | M20X1.5male waterline seal |
C6 | 1/4NPT male |
C7 | 1/4NPT female |
C8 | 1/2NPT male |
C9 | 1/2NPTfemale |
C10 | R1/4 male |
C11 | R1/2 male |
PC1 | Flush diaphragm M20×1.5 male, | Top: M24×1 female |
PC2 | Flush diaphragm R1/2 male, |
PC3 | Flush diaphragm G1/2 male, |
PD1 | DN25 clamp |
| | Code | Compensation |
L | Laser trimming |
M | Outer compensated resistor (providing resistor value) |
| | | | | | | Code | Electric connection |
1 | Kovar pin(default) |
2** | 100mm silicon rubber flexible wires |
| | Code | Special measurement |
Y | Gauge sensor to measure vacuum(0kPa~-100kPa) |
| |
MPM280 09 G 0 L 1 Y The whole spec |
