MPM4730 Intelligent Pressure Transmitter RS485

Features:
1.     RS485&HART communicator;
2.     Full stainless steel;
3.     Special requirement available;
4.     Netting available

Certificates:
1.   RoHS;
2.   Exia IIBT6 Ga;
3.   CCS;
4.   ISO

Application:
1.   Precise measurement;
2.   Flow pressure;
3.   Chemical industry;
4.   Water

Options:
1.     Sealed gauge, gauge, absolute;
2.     Flush diaphragm type;
3.     Intrinsic safe version;
4.     4~20 m ADC output;

Description:
MPM4730 is an intelligent pressure measuring product with high accuracy and stability. Compact size, light weight and wider pressure range making this transmitter suit every occasion where needs to measure fluid pressure precisely.

Specifications

Total accuracy	±0.075%FS(min.) ±0.15%FS(typ.) ±0.25%FS(max.)
Stability	±0.2%FS/year
Compensated temp.	(-10~80)ºC
Operation/storage temp.	(-40~80)ºC
Power supply	(10~28)VDC(RS485)/(12~30)VDC(HART)
Output	(4~20)mADC
Output	RS485/HART(optional)
Load	(4~20)mADC output,(U-10V/12V)/0.02A(Ω)
Load	RS485 bus line could connect with 99 transmitters

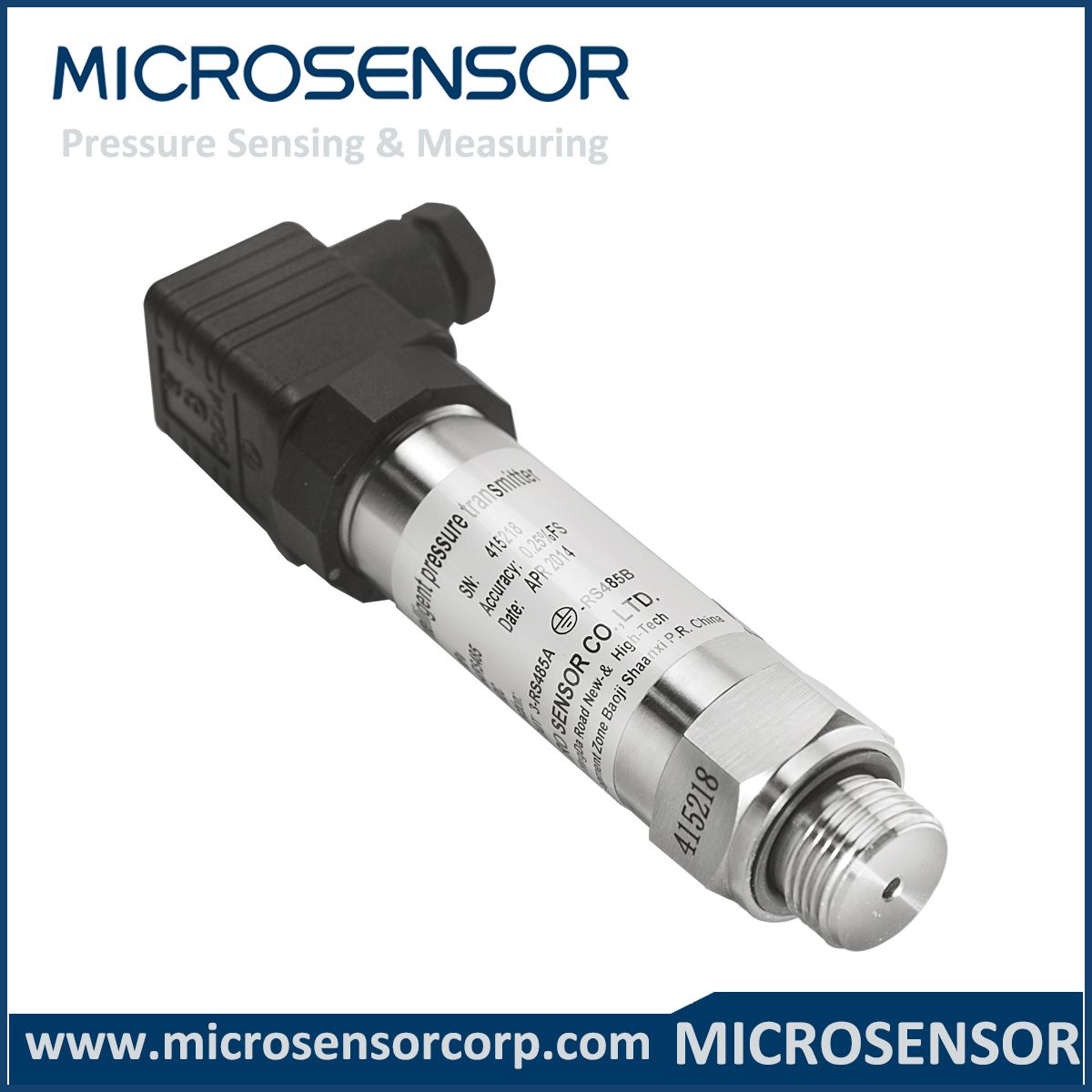

Electric connection	DIN43650 4-pin plug(RS485 socket inside)
	7-pin plug(for RS485 interface output at local place)
	Φ7.2mm shielding cable
Insulation	100MΩ/50V
Shock	20g,(20~5000)Hz
Impact	20g,11ms
Protection	IP65(B1,B2) IP63(B3)
Media compatibility	Diaphragm: SS 316L
	Housing: SS 1Cr18Ni9Ti
	O-ring: Viton
Weight	~160g

Order guide:

MPM4730

Intelligent Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa
MPa

,X=actual pressure range

Code

Output signal

4~20mADC

RS485 communication interface

HARTâ communication protocol

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Code

Others

4-pin Hirschmann plug connection

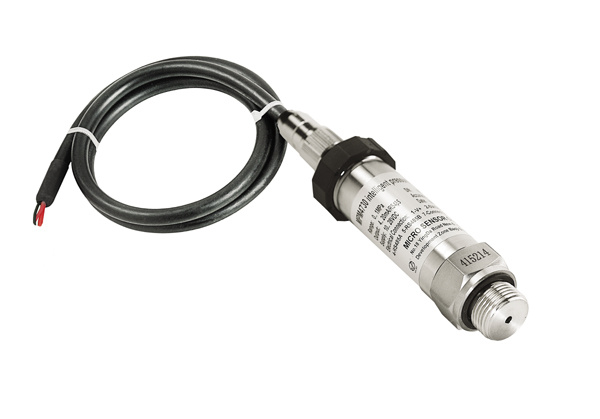

Cable connection, default cable length: 1.5m

7-pin plug connection

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

M20×1.5 male, face type seal

G1/2 male

G1/4 female

M20×1.5 male, waterline seal

Gauge

Sealed gauge

Absolute

Intrinsic safe version ExiaIIBT6 Ga

MPM4730 [0~100]kPa ER4 22 B3C1G the whole spec

Prod Model:	MPM4730 Pressure Transmitter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1MPa...0~0.01MPa...100MPa
Accuracy:	0.15%Fs(Typ.)
Output Signal:	4~20madc
Protection:	IP65
Key Word:	Intelligent Pressure Transmitter RS485
Storage Temp:	-40~80c
Compensated Temp:	-10~80c
Long Term Stability:	+-0.2%Fs/Y
Housing:	Stainless Steel
Operation Temp:	-40~80c
