Shenzhen Coban Electronics Co., Ltd. >> Anti Theft Car Vehicle Tracker GPS, Tk303G Vehicle GPS Tracking System with Free Google Map Tracking Software

Anti Theft Car Vehicle Tracker GPS, Tk303G Vehicle GPS Tracking System with Free Google Map Tracking Software

Anti Theft Car Vehicle Tracker GPS, Tk303G Vehicle GPS Tracking System with Free Google Map Tracking Software
Price: US $ 23/Piece
Trade Terms: CFR
Min Order: 10/Piece
Pay Type: T/T,Western Union

  GPS Tracker 303

1, Product Description:



Working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety. This product can locate and monitor any remote targets by SMS or internet.



2, Applications:



Used for vehicle and other moving objects tracking.



3, Features and Functions:



-Change Password

-Authorization

-Single Locating

-Auto track continuously

-Automatic update positions of vehicle turns

-GPS drift suppression

-Absolute street address by SMS

-Location based service (LBS)

-Voice Monitor -Data logging

-Data Load

-Forward the third partiesmessage

-Charges Inquiry

-Alarm Function

-Low battery alarm

-GPS blind Spot alert

-SOS

-Geo-fence

-Multi-area management

-Movement alarm

-Over speed alarm

-Arm

-Silent Mode

-DISARM

-Alarms under Arm State

-Shock Sensor alarm

-Check the Vehicle State

-Reset Hardware

-Sleep Mode

-Sleep by time

-Sleep by shock sensor

-No sleep mode

-Check IMEI

-Set up Terminal (local) Time

-TCP / UDP Switch

-Configure parameters by USB

-GPRS setting

-Setting up APN

-GPRS User ID and password Setup

-IP and port setup

-Less GPRS traffic

-Modes Switch between "SMSand "GPRS"

-Set up monitor center number



4,Specifications:





Content

Specification

DIM

9.6×5.3×1.6cm

Weight

70g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GPS sensitivity

-159dBm

GPS accuracy

5m

GPS start time

Cold status  45s

Warm status  35s

 Hot status  1s

Car power supply

12 V -24V

Back up battery

Chargeable 3.7V 700mAh Li-ion battery

Storage Temp

-40°C to +85°C

Operation Temp.

-20°C to +65°C

Humidity

5%--95% non-condensing






5, Packaging Detail:

GPS unit
12PIN harness
Microphone
Relay
Remote control
Screwer
CD
Manual
Giftbox
Optional
MicroSD
Alarm sire(big or small both ok)
Fuel sensor
Extra remote control


  6, Detailed Images:

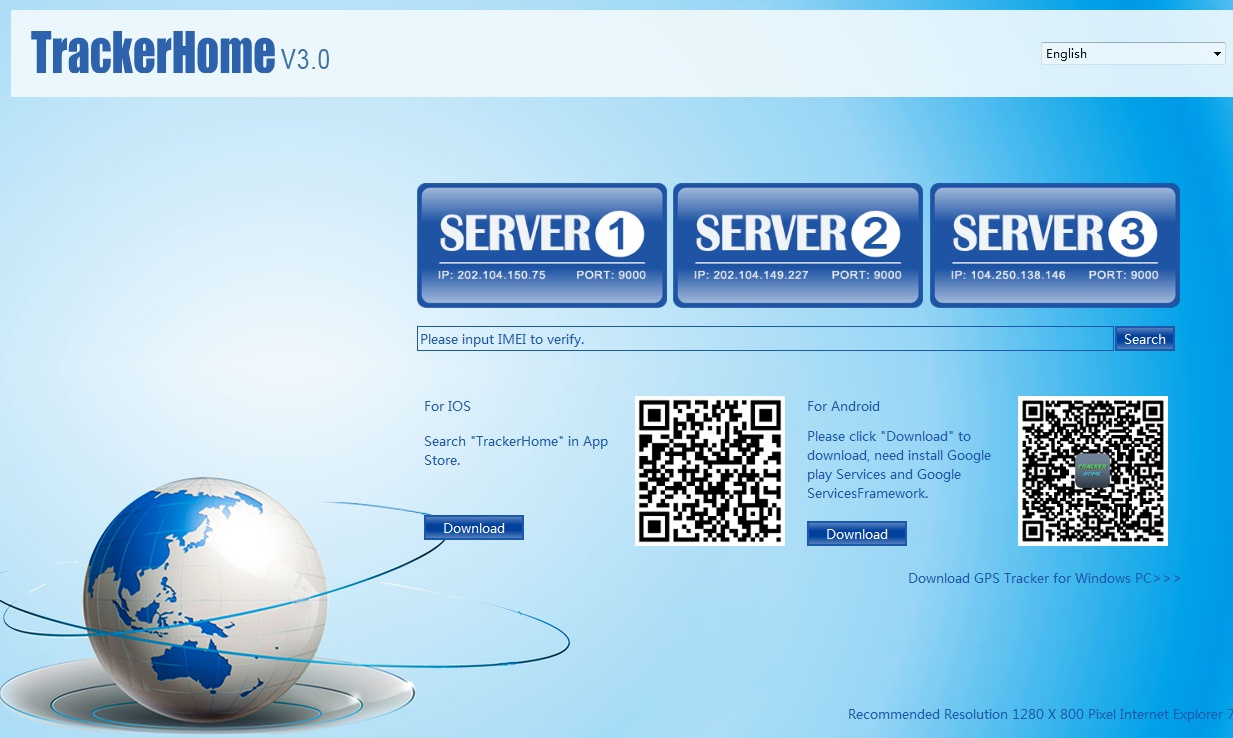

7, Web Platform Tracking:



8, Andriod and IOS Apps for GPS trackers:


Prod Model: 303g Vehicle Tracker gps
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Modes: Tracker, Monitor
Apllication: Vehicle Fleet/Logistics/Vehicle Rental (6-40V)
Frequency Band: 850/900/1800/1900MHz
OEM Or Not: Yes
Weight: 65g
Size: 89*50*16mm
Shipment: by Express or by Air
Delivery Time: 2-3 Business Days
Network: GSM/GPRS
Feature: Waterproof, Door, Shock, Fuel, Geo-Fence
Type: GPS Tracker
Use: Automotive
Carrier Frequency: Dual-Frequency
Chip: SiRF
Operating Principle: GPS GPRS GSM Tracking
Port Number: 20
Model: 303G
Screen Size: No Screen
Brand: Coban Tk303
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.

As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.

Our company specialized in GPS tracker, car anti-theft alarm system.

Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
