Shenzhen E-Flourish Technology Co., Ltd. >> APC Switched Rack PDU Ap8958

APC Switched Rack PDU Ap8958

APC Switched Rack PDU Ap8958
Price: US $ 805-850/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union

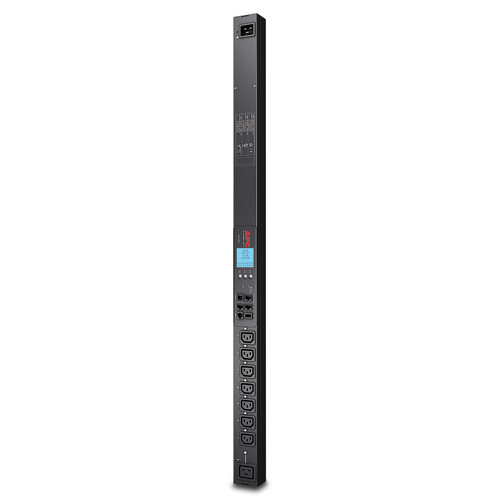

Rack PDU 2G, Switched, ZeroU, 20A/208V, 16A/230V, (7) C13 & (1) C19

AP8958

Output

  • Nominal Output Voltage
    100V , 200V , 208V , 230V
  • Overload Protection
    No
  • Maximum Total Current Draw
    16
  • Output Connections
    (7) IEC 320 C13 (Battery Backup)
    (1) IEC 320 C19 (Battery Backup)

Input

  • Nominal Input Voltage
    200V , 208V , 230V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC-320 C20
  • Acceptable Input Voltage
    100-240VAC
  • Maximum Input Current
    20A
  • Regulatory Derated Input Current (North America)
    16A

Physical

  • Maximum Height
    988mm , 98.8cm
  • Maximum Width
    56mm , 5.6cm
  • Maximum Depth
    46mm , 4.6cm
  • Net Weight
    3.23kg
  • Shipping weight
    4.77kg
  • Shipping Height
    1125mm , 112.5cm
  • Shipping Width
    165mm , 16.5cm
  • Shipping Depth
    114mm , 11.4cm
  • Color
    Black

Environmental

  • Operating Environment
    -5 - 45 °C
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0-15000meters

Conformance

  • Approvals
    cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE
  • Standard warranty
    2 years repair or replace



Prod Model: AP8958
Warranty: 1 Year
RoHS: Compliant
Reach: Reach: Contains No Svhcs
Voltage: 230V
Grounding: Standard Grounding
Shell Material: Copper
Application: Industrial
Cable Length: 2 Meter
Color: Black
IP Rating: IP20
Certification: UL
Customized: Non-Customized
Condition: New
We supply UPS power supplier and batteries of APC, Emerson, Santak, Panosonic, CSB, YUASA, LEOCH and etc. With high quality, favorable price, thinkful service, we are trying utmost to give you a pleasant and satisfactory experience of contacting with us.

Our products has been shipped to Russian, USA, Malaysia, Arab, India and etc, and also got good positive feedback from customers.

We sincerely wish to work business with the customers all over the world. And we make sure that will offer the satisfactory products with reasonal price and give nice service for you.
