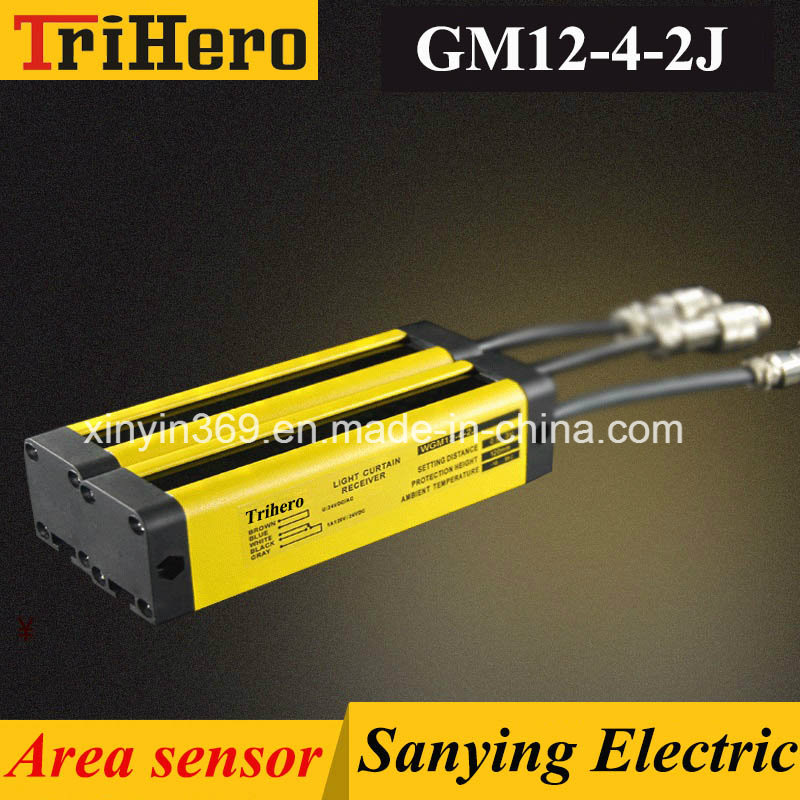

Area Secure Optical Sensor (Picking Sensors)

Name: Area Secure Optical Sensor (Picking Sensors)
Brand: all-electronics-online.com
SKU: 819408975
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Sensors
Sensors are the most basic, commonly used components in automation. Autonics provides a wide variety of sensors including proximity sensors, photoelectric sensors, fiber optic sensors, and pressure sensors, for maximum user efficiency.

Area sensors
Area sensors are general purpose, easy-to-use, non-safety light screen that emit multi light beams for detection of objects moving in specified areas. Autonics area sensors have thin, small sized and compact designs and offer more reliable sensing solutions equipped with long sensing distance with more advanced and various easy-to-use functions at the most reasonable price. Autonics picking sensors, categorized under area sensor products, are ideal for precise detection and assembly applications.

Technical Specifications:

Sensing height	60-2000mm	Ambient temerature	-10ºC~55ºC
Optical axis pitch	5mm,10mm,20mm,40mm	Storage temperature	-25ºC~70ºC
Resolution	10mm,15mm,25mm,45mm	Ambient humidity	35~85%RH
Number of optical axis	4,6,8,10...	Output current	≤200mA
Power supply	DC24V ± 20%	Ambient illuminance limit	10,000Lux
Power	<5W	Dielectric strength	AC1500V for 1 minute
Response time	Max. 10ms	Sensing type	through-beam
Insulation resistance	≥100MΩ	Section size	35x50mm
Control output	NPN or PNP / relay NO / relay NC
Sensing distance	A:0.1-5m; B:0.1-10m; C:0.1-15m; D:0.1-20m

Applications:

Prod Model:	GM
Sensing Type:	Through Beam
Sensing Height:	60-2000mm
Optical Axis Pitch:	5mm,10mm,20mm,40mm
Power Supply:	DC24V ± 20%
Power:	5W

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
