Automotive Atc HRC AC Assorted Block Fuse Set Holder

Name: Automotive Atc HRC AC Assorted Block Fuse Set Holder
Brand: all-electronics-online.com
SKU: 835812145
Availability: InStock
Rating: 4.7 (105 reviews)

Price:	US $ 1.5-25/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fuse Base
Rated Current:	8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100,
Rated Voltage:	AC 400V,AC 500V
Color:	White
Breaking Capacity:	Low
Usaga:	Low Voltage
Type:	Low Voltage Fuse
Standard:	ISO9000, CCC, Ce, CB

Product Description

Automotive standard power amp spare hrc fuses link

Specifications

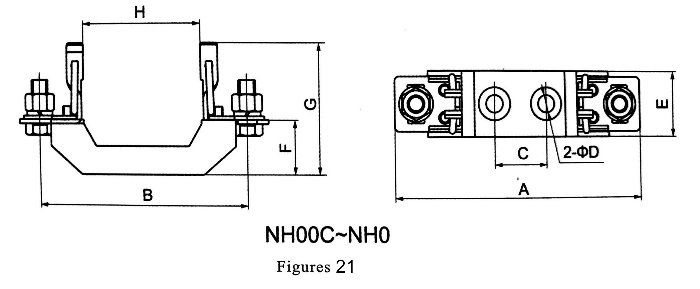

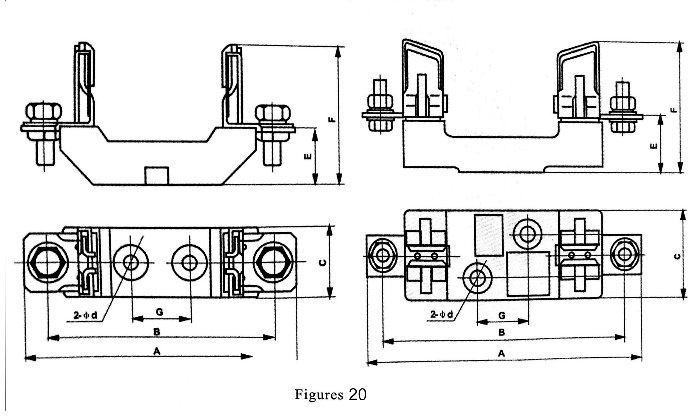

BLADE TYPE CONTACT FUSE LINK- GENERAL TYPE FUSE BASE

TYPE	RATED CURRENT(A)	A	B	C	D	E	F	G	H	WIGHT(g)
NH00C, NT00, RT16-00	160	121	100	25	7.5	24	60	25		195/225
NT0, RT16-0	160	166	146	30	7.5	35	75	25		330/410
NT1, RT16-1	250	197	171	58	10.5	35	80	25	30	560/740
NT2, RT16-2	400	223	200	61	10.5	35	96 .5	25	30	830/1110
NT3, RT16-3	630	257	68	30	6	48	61			15
NT4, RT17	300		68	48	6	48	61			20

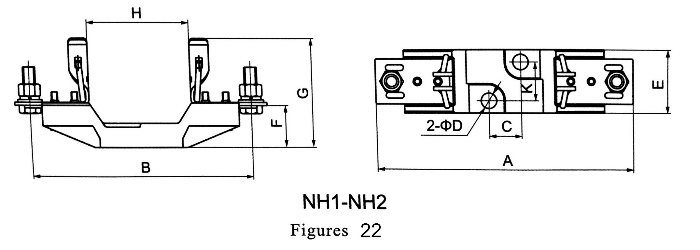

BLADE TYPE CONTACT FUSE LINK- DUAL INDICATOR TYPE FUSE BASE

TYPE	RATED VOLTA GE(V)	RATED CURR ENT(A)	A	B	C	D	E	F	G	H	K
NH00C, NH00,	AC500/ 690, DC440	160	121	100	25	8	30	25	60	56
NH0	AC500/ 690, DC440	160	170	150	25	8	35	30	64	74
NH1	AC500/ 690, DC440	250	200	175	25	12	50	35	83	80	30
NH2	AC500/ 690, DC440	400	225	200	25	12	50	35	85	80	30

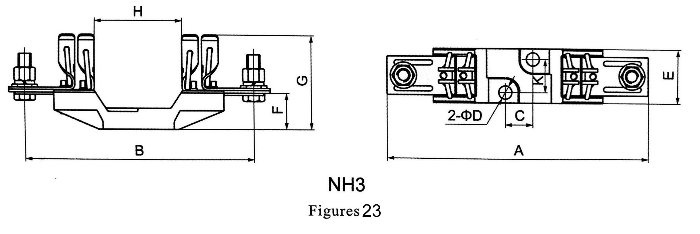

NH3	AC500/ 690, DC440	630	240	210	25	12	50	35	88	80	30

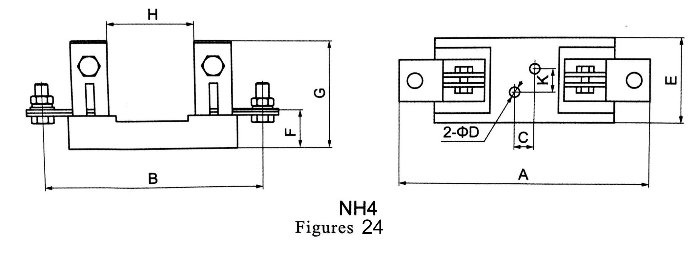

NH4	AC500, DC440	1250	304	270	25	13	102	51	144	100	50

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage

electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Contact Us

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
