Micro Cartridge Ceramic Midget Plug Fuses

Name: Micro Cartridge Ceramic Midget Plug Fuses
Brand: all-electronics-online.com
SKU: 835826585
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 1-3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

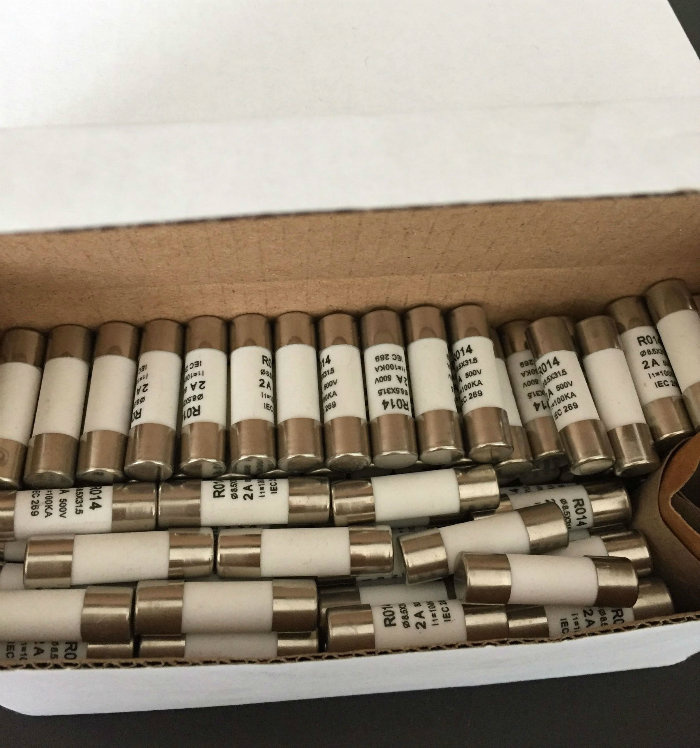

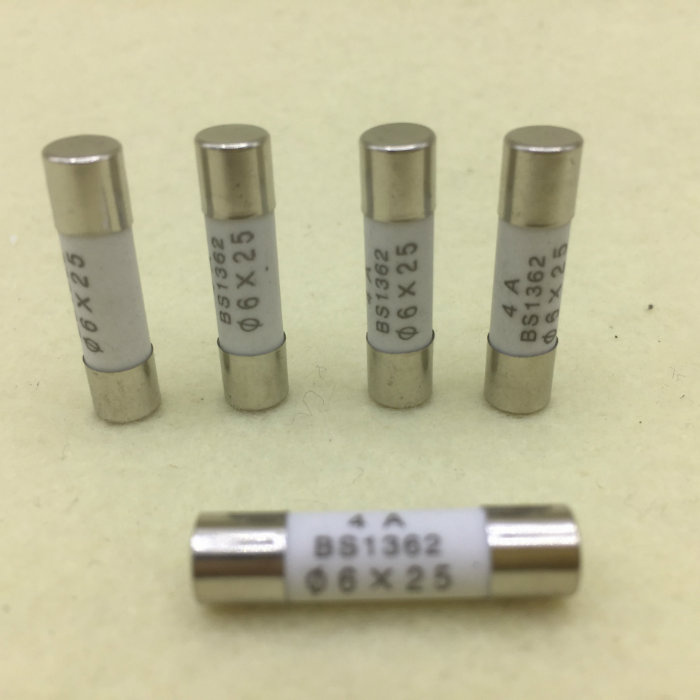

Micro Cartridge ceramic midget plug Fuses

SPECIFICATION

TYPE	RATED VOLTAGE	RATED CURRENT	SIZE	WEIGHT
R006	250/380	1~32	φ12.7×29	6.5
R007	600	10~100	φ30×57	7.5
R008	600	2~63	φ20.5×40	40
R009	500	2~63	φ18×37	17.4
R010	500	2~63	φ18×50	23.5
R011	600	2~32	φ21×58	51.5
R012	600	35~100	φ27×60	90
R013	500	2~40	φ15×50	23.2
R014	500	0.5~20	φ8.5×31.5	4.4
R014A	250	0.5~20	φ8.5×23	3.5
R014B	380/500	0.5~20	φ8.5×36	5.0
R015	380/500	0.5~32	φ10.3×38	7.7
R015A	250	0.5~16	φ10.3×25.8	4.8
R015B	250/500	0.5~25	φ10.3×31.5	5.8
R015C	380/500	0.5~32	φ10.3×34	6.2
R015D	600	2~32	φ10.3×57	11
R016	380/660	2~50	φ14.3×51	20.5
R016A	500	2~50	φ14.3×38	15.6
R016B	500	2~50	φ14.3×45	18.5
R016C	500	2~50	φ14.3×67	27.5
R017	380/660	10~125	φ22.2×58	58
R018	380	0.5~25	φ9.6×30	4.8
R019	600	0.5~32	φ20.5×127	91.2
R019A	250/500	0.5~63	φ20.5×76	63
R019B	600	0.5~32	φ20.5×114	85
R019C	600	32~63	φ27×139	172.4
R019D	600	32~63	φ27×147	160
R054	250	0.5~16	φ5×20	1
R055	250	0.5~16	φ5×25	1.3
R056	250	0.5~16	φ6×20	1.7
R057	250	0.5~16	φ6.3×25	2.1
R058	250/500	0.5~16	φ6.3×31.5	2.5

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Trading Process

Contact Us

Prod Model:	RT18, RT14, RS15, R015
Cap Materials:	Nickel-Plated Brass
Leads Materials:	Tin-Plated Copper
Breaking Capacity:	Low
Type:	Current Fuse
Usaga:	Low Voltage
Standard:	GB13539

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
