Membrane switch is an electrical switch for turning a circuit on and off Differs from mechanical switch
Membrane switch is very thin and soft Touch surface material usually is PET or PC Circuit can be PET, FPC or even PCB Membrane switches are user-equipment interface utilities that allow for the communication of commands from users to electronic devices
> Construction:Membrane switch typically has 6 or more or less layers;
Top layer of a membrane switch is the graphic overlay interface between the user and the machine;
Other critical layer is a the circuit layer;
Can also be PET, FPC or PCB;
All the layers are normally assembled using pressure-sensitive adhesives;
Contact between two traces can be made through a printed shorting pad or through a metal dome that stands on legs;
> What kind of membrane switches we can produce?Super big size membrane switches, membrane keypads, graphic overlays, membrane circuits, LED backlighting membrane switches, LGF backlighting membrane switches, EL backlighting membrane switches, capacitive membrane switches, rubber keypad membrane switches, FPC circuit membrane switches, PCB circuit membrane switches, metal back panel membrane switches, acrylic/PC back panel membrane switches, waterproof membrane switch, anti-UV membrane switch, anti-scratch membrane switch, digital printing membrane switch
> Applications:Classic applications of membrane switches include consumer electronics like the microwave oven panel, air conditioner control panel, TV remote control, machinery, test instrument, meters, medical industry, energy industry, auto industry, aviation industry, healthcare industry;
Tactile feedback of keys can be provided by embossing the top PET/PC layer or embedding metal snap domes, polyester domes or forming the graphic layer;
> Our advantages:1. ISO 9001:2008 and ISO 13485 certified
2. Over 8 years OEM experiences for overseas market
3. Engineering supports: design support and raw materials, components selection suggestions
4. High quality imported raw materials, like the Autotype PET, 3M adhesive, nicomatic connector, Kingbright/LITEON LEDs
5. LUPHI tech has our own PCBA factory, can provide the PCB assembly, FPC assembly, PET circuit assembly service
6. On time delivery, good pre-sales and after-sales service and best shipping method suggestion to save your logistics cost
7. Can design and manufacture special keypads, like capacitive touch membrane keypads, LGF backlighting keypads, integrated touchscreen display module, rigid and flex copper keypads, fingerprint touch keypads, OCA full lamination, displays assembly
| Max size | 1100 x 2000mm |
| Overlay materials | PET: autotype (autotex F150,F200,F280, V150,V200,V280,
autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250)
autotex : XEV150, XEF200
autostat CT3, CT4, CT5, CT7
DuPont, Toray PET
Domestic Brand PET (Sichuan Dongfang)
PC: GE LEXAN--8010 8B35 8B35F HP92S HP40 FR700 FR60
bayer PC-Makrofol, /Bayfol, Marnot/ProTek
domestic brand PC |
| Spacer | 3m adhesive, Nitto, Tesa, Sony, Sekisui, Domestic adhesive |
| Back adhesive | 3m (mainly), others (little) |
| Silver paste | Changsung: CSP-3163, CSP-3352,CSP-5150
Acheson: ED 725A (6S-61),ED 427SS,ED 479SS,ED 976SS HV
Fujikura and OTTI |
| Oil Ink | Seiko, Jujo, Dubuit, Proell, Norcote UV |
| Carbon paste | fujikura, acheson ED 581SS, OTTI |
| Contact resistance | 0.5-10Ω |
| Insulation resistance | ≥10MΩ (100VDC) |
| Base material voltage durable | 2000V DC |
| Bounce time | ≤5ms |
| Working current | ≤100mA |
| Working voltage | ≤50VDC |
| Life | ≥1,000,000 times |
| Key travel | flat type: 0.05mm-0.5mm, tactile type: 0.1-1.5mm |
| Working temperature | -40 to +80ºC |
| Actuation force | 20-550g |
| Storage Condition | temperature: -40 to+85ºC
humidity: ≤98% RH |
| PET circuit tail flexible feature | 180° to any angle |
| Support FPC and PCB circuit | yes |
Dongguan LuPhi Electronics Technology Co., Ltd. (short for LUPHI bellow) is established in 2008. It located in Ziliang High-Tech Industrial Park, Huaide, Humen of Dongguan. The factory area is about 3500 square meters. It close neighbors to Shenzhen, Guangzhou and Hongkong. To Shenzhen airport is just about 30 minutes and to Guangzhou Baiyun Airport is just about 1 hour. LUPHI is a newly high-tech enterprise for human interface technology and metal, plastic molding, electronics product development, design and assembly.
Our main business and products include designing and manufacturing various kinds of super big size membrane switches, membrane keypads, graphic overlays, membrane circuits, various kinds of backlit membrane keypads like the LED backlit membrane switches, EL backlit membrane switches, LGF backlit membrane switches, the high-tech capacitive membrane switches and nameplates, labels, PCBA, prototype to middle volume metal + plastic + electronics turnkey project assembly.

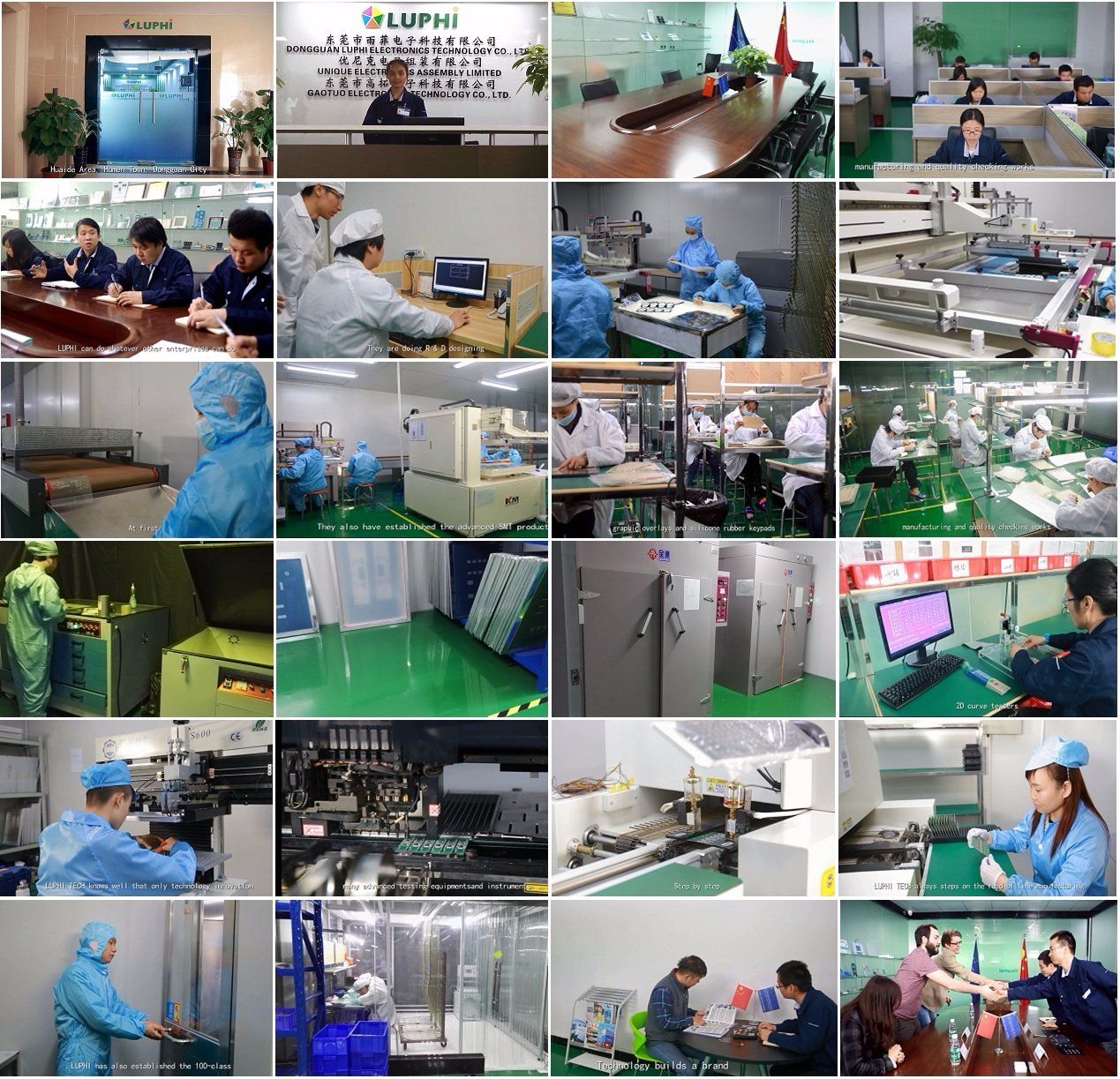

At the beginning of establishing of LUPHI, we made the factory planning as per the requirements of our customers from USA and Europe, and the international standard. We invested big money to get many new and high accuracy big size semi-auto silk screen printing machines, high-performance pneumatic punching machines, hot embossing machine, high accuracy laser cutting machine, auto die cutting machine etc. LUPHI always regards the quality as our life. We established our inner testing room. We have many high-grade testing machines and equipments in our testing room, like the life testing instruments, 2D measurement instrument, high-low temperature environment test equipment, friction tester, dropping tester, electrical function testing instruments, ink adhesion tester etc. In addition, we also have the high clean room and anti-static clean booth to ensure the product reliability and stability for those high-accuracy and anti-static required products. By such kind of advanced hardware facilities and our experienced quality management team to ensure that each batch delivery to meet our customers' high quality requirements.
