| Prod Model: |
MZVC1005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Characteristics: |
Continous Linear Voltage Adjustment |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
JIW |
| Frequency: |
High Frequency |
| Size: |
Small/Large |
| Application Range: |
Hotel/School/ |
Product Description

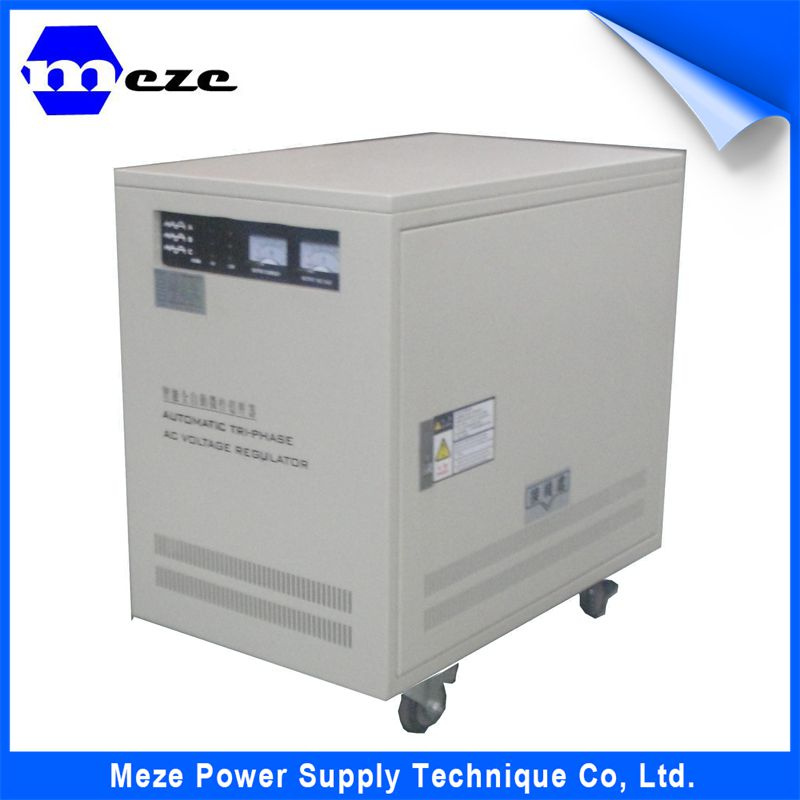

5KVA High accuracy automatic AC voltage regulator
| ModeI | MBW3020 | MBW3030 | MBW3050 | MBW3100 | MBW3180 | MBW3225 | MBW3320 | MBW3400 | MBW3500 | MBW3600 | MBW3800 | MBW31000 |
| capacity | 20KVA | 30KVA | 50KVA | 100KVA | 180KVA | 225KVA | 320KVA | 400KVA | 500KVA | 600KVA | 800KVA | 1000KVA |
| impot voItage | phase voItage 220V±20%,Iine voItage380V±20% |
| phase | three phase+N+G |
| frequency | 50/60Hz |
| outpot voItage | 220V(phase voItage),380V(Iine voItage) |
| VoItage toI | 2--5% |
| Waveform distortion | non-Iack fideIity waveform |
| response time | ≤1.5s |
| efficiency | ≥95% |
| noise | ≤50db |
| protection | With over voItage,over current protection and mechanicaI faiIure protection |
| temperature | -10ºC-45ºC |
| humidity | 20% 80% |
| insuIation | ≥2MΩ |
| dieIectric strength | Power frequency sine voItage 1500 v for 1 minute without breakdown and fIashover phenomenon |
| overIoad capacity | 120% of the rated current to maintain time is more than 10 s |
| working | continuous working |
| Dimensen | 485x730x1130 | 570x810x1450 | 650x900x1680 | 745x1000x1800 | 900x1100x2150 | 900x900x1850 | 1000x1350x1850 |
| Weight(kg) | 115 | 125 | 165 | 270 | 400 | 520 | 700 | 950 | 1100 | 1300 | 1700 | 2300 |
This series of products to overcome the traditional voltage regulator capacity
small, loss, waveform distortion such as faults, both traditional electronic ac type,
induction and magnetic saturation regulator, large capacity, high efficiency, no
waveform distortion, stable voltage regulation, easy in operation and maintenance,
highly reliable operation.
widely used in industrial and mining enterprises, oil fields, railways, construction
sites, schools, hospitals, post and telecommunicatio ns, hotel, scientific research, radio
and television, banking, securities and other departments of electronic, computer,
precision machine tools, computer tomography ( CT ) of photography, precision
instruments, test equipment, elevators, lighting, imported equipment and production
lines, such as need the power supply voltage stability, also adapted to the power supply
voltage is too low or too high, low volatility big distribution network at the end of the
user and the load change of power equipment, especially suitable for all places of high
voltage electricity to power grid waveform requirement.
Load adaptability is strong, can work in all kinds of complicated conditions
Stable With overvoltage, undervoltage, over current, lack of phase protection function
safe and reliable work
With functions of automatic detection diagnosis, when a hardware failure occurs, the
computer can automatically diagnose and emit light alarm signal
Output waveform is stable without distortion, additional distortion is less than 1%
With functions of automatic temperature control, when the isolation transformer coil
temperature more than + 70 ° C, the temperature controller will automatically start the
exhaust heat dissipation function
Running balance, load regulation and power regulation can be lower than 2%
With optional surge resistance: the line input configuration high-energy impact surge
suppressor, effectively solve the lightning induction, etc in 10 (including the s - 100
(including s pulse pea k voltage between fatal impact on the equipments
