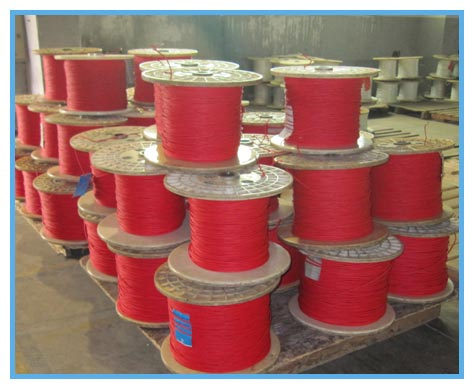

Awm3271 XLPE Cross Linking Compound PE Insulated Wire

Name: Awm3271 XLPE Cross Linking Compound PE Insulated Wire
Brand: all-electronics-online.com
SKU: 830597655
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	Negotiable/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Rated Volt.:600V
Test Voltage: 2000V. 1Min
Rated Temp.:125ºC

Mechanical properties:
Un-aged condition:

Tensile strength: ≥13.79N/mm²

Elongation at break of insulation: ≥300%

Min.Bending radius: 7×OD

Standards: Standard: UL758, UL62, And UL1581
Meet with RoHS, REACH rules.
Characteristics:
XLPE wire has good performance in corrosion resistant and anti chemical liquid, acid, alkali, excellent thermal stability. It is light weight and competitive price for customer's choice.

We adopted good quality raw materials of PVC to assure our extruded wire can meet with strict quality control.

Application:
PVC wire & cable are used very popularly in the home electric appliance, lighting, AUTO wire harness, aviation, military, instruments, plug etc.

Size	Cross section	Conductor		Insulation thickness	Wire OD		Resistance
		structure	OD	Nominal	Nominal	Toler.	20ºC Max.
AWG	mm²	No./mm	mm	mm	mm	mm	Ω/KM
26	0.128	7/0.16	0.48	0.76	2.00	±0.10	148
25	0.162	9/0.16	0.56	0.76	2.10	±0.10	116
24	0.205	7/0.20	0.60	0.76	2.15	±0.10	93
		11/0.16
		12/0.15
23	0.259	11/0.18	0.70	0.76	2.25	±0.10	74.5
22	0.324	13/0.18	0.75	0.76	2.30	±0.10	55
		7/0.25
		17/0.15
21	0.412	17/0.18	0.88	0.76	2.40	±0.10	46.9
20	0.519	21/0.18	0.96	0.76	2.45	±0.10	34.6
		10/0.254
		26/0.16
		7/0.31
19	0.653	26/0.18	1.10	0.76	2.65	±0.10	29.1
18	0.823	33/0.18	1.20	0.76	2.75	±0.10	23.2
		16/0.254
		7/0.39
		24/0.20
17	1.04	21/0.254	1.38	0.76	2.90	±0.10	20
		40/0.18
		32/0.20
16	1.31	26/0.254	1.55	0.76	3.10	±0.20	14.6
		7/0.49
		52/0.18
15	1.65	33/0.254	1.75	0.76	3.30	±0.20	11.3
14	2.08	41/0.254	1.95	0.76	3.50	±0.20	8.96
		7/0.62
13	2.63	52/0.254	2.19	0.76	3.75	±0.20	7.10
12	3.31	65/0.254	2.44	0.76	4.00	±0.20	5.64
11	4.17	83/0.254	2.74	0.76	4.30	±0.20	4.48
10	5.261	105/0.254	3.43	0.76	4.95	±0.20	3.55
9	6.631	53/0.40	3.98	0.76	5.50	+0.30	2.81
						-0.20

Prod Model:	AWM3271
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS

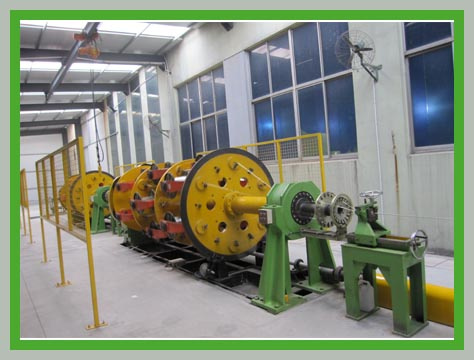

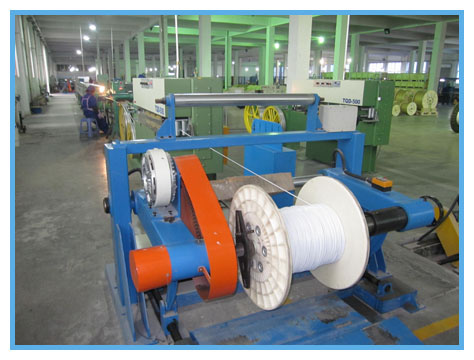

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
