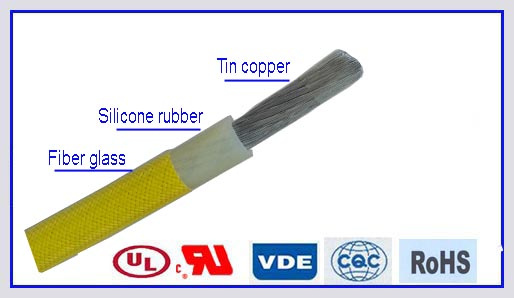

AWM3573 High Voltage Silicone Rubber Wire

Name: AWM3573 High Voltage Silicone Rubber Wire
Brand: all-electronics-online.com
SKU: 667215105
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	Negotiable/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Competitive price, Fast Delivery
Good quality and after sales services
UL/cUL approved wire, file No.: E206992
Strong supply capability

Rated Voltage: 300V
Rated temperature: -60+180C DEGREE
Conductor: Tin-coated, nickel-coated or silver-coated copper wire
Insulator: Silicone rubber

Applicable for high temperature environment such as electron, electrical household appliance internal leading wire, wire harness

Different packing ways for safe sea freight or air shipment.
1. Physical performance
a,Excellent mechanical properties
b,Excellent thermal stability
c,Low temperature soft good performance
d,Good flame retardancy
e,Good resistance to chemicals
f,Chemistry stability is good
g,Good resistance to high temperature of the engine fluid
h,Excellent resistance to impact ability

2. Electrical Properties
a,Electrical insulation good
b,Good on dielectric properties
c,Excellent in high voltage test

3. Processing properties
a,Using the hot extrusion processing
b,Can be twisted pair and multi-core
c,Good processing properties Harness
d,Harness processing process good compatibility
e,According to UL standard design

4. Environmental protection
Meet with ROHS/REACH compliant
SHOULD BE USED: As internal wiring or external interconnection of high temperature environment

Items			Technical datas	Applied standard
Outer appearance			Smooth, even, without loose	UL 758 UL 62 UL 1581
Spark test			AC20KV/ 0.15 S
Vol. test			AC21KV/1 min
mechanical properties of insulation material	Before aging	Tensile strength	≥3.45N/mm²
		elongation at break	≥100%
	After aging	Tensile strength	60% of the tensile strength before aging
	(210±1 C×1440h)	elongation at break	25% of the elongation before aging
Poisonous substance control			Comply with ROHS rule	EU-2002/95/EC

Prod Model:	AWM3573
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Wire Harness
Conductor Material:	Copper
Certification:	VDE
Insulation Material:	Silicone Rubber , PVC
Brand:	Hoochan

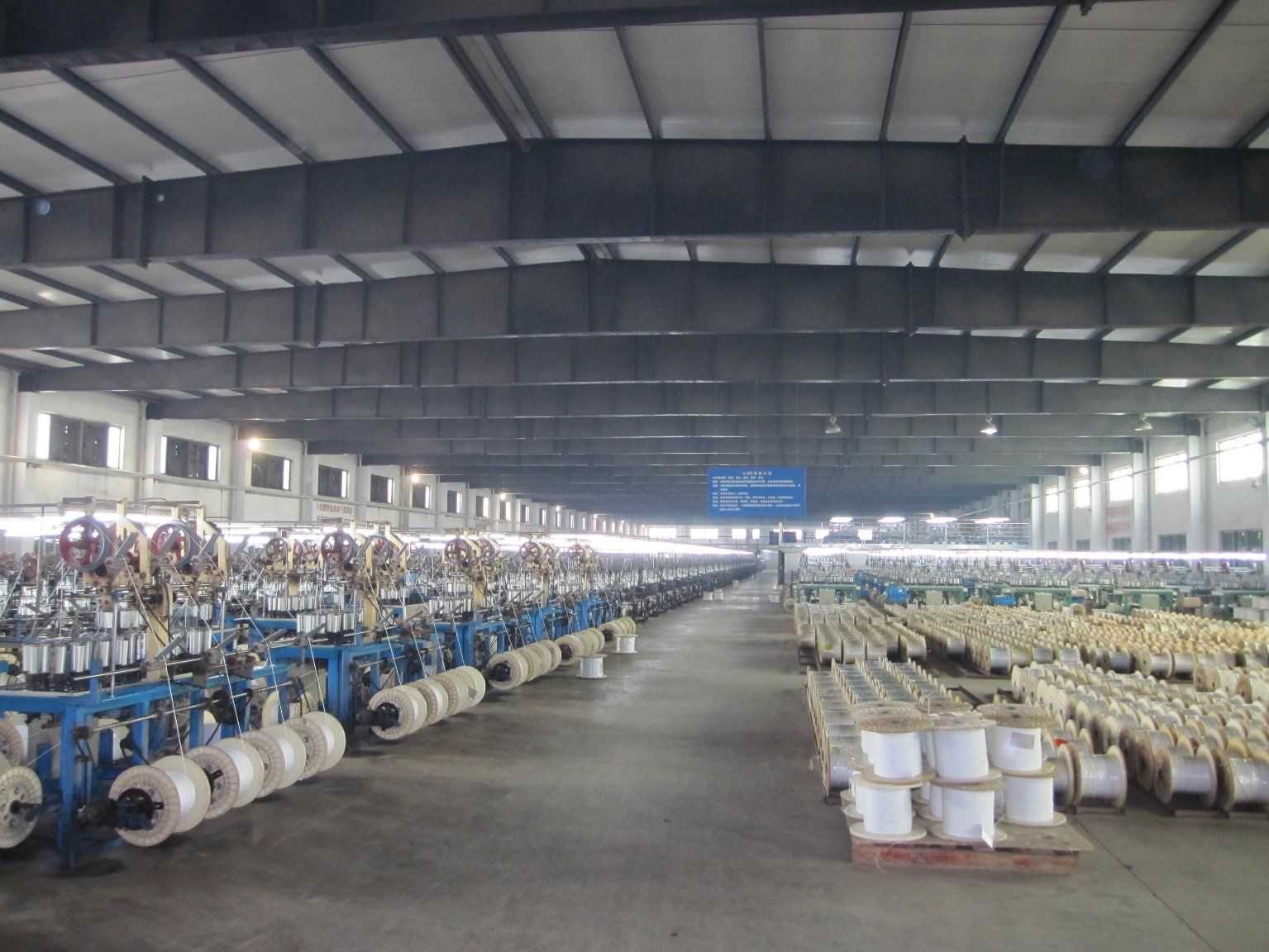

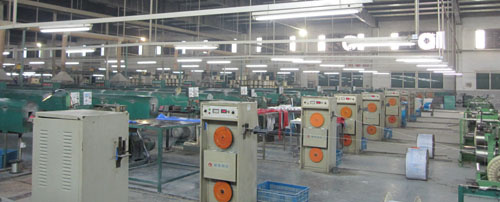

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
