Specifications
Rotary Switches with electrical rating: 13A-120V AC, 10(3)A-250V AC

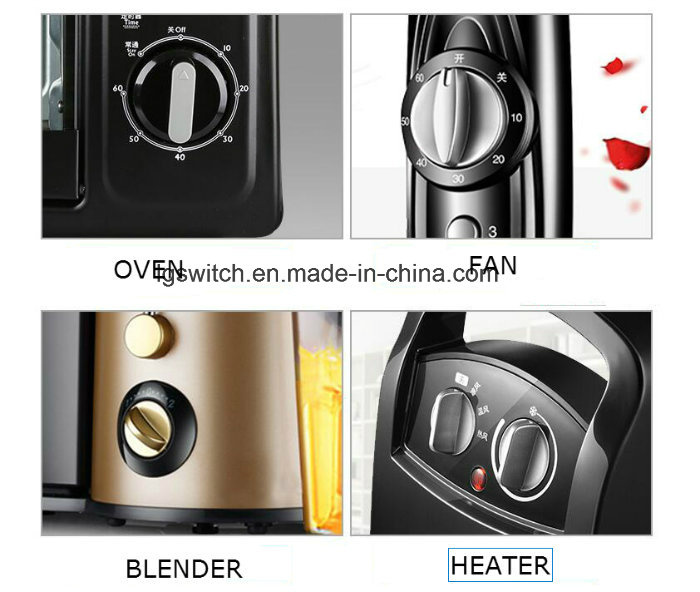

Apply to Oven, Electric Heater etc. High power home appliance
Rotary Switch
Technical Parameter| Electrical Rating | 13A-120V AC, 10(3)A-250V HZ 60/50 |
| Load | Res/ Mot |
| Temp(C) | 105° C |
| Pol/Thr | 1/2 or M |
| Rotation Angle | 22.5° Other available angle: 30° , 18 ° , 45 ° , 60° , 90° |
| SPCOA 22-14AWG UL1015 | PP/Circuit --/A |
| | |

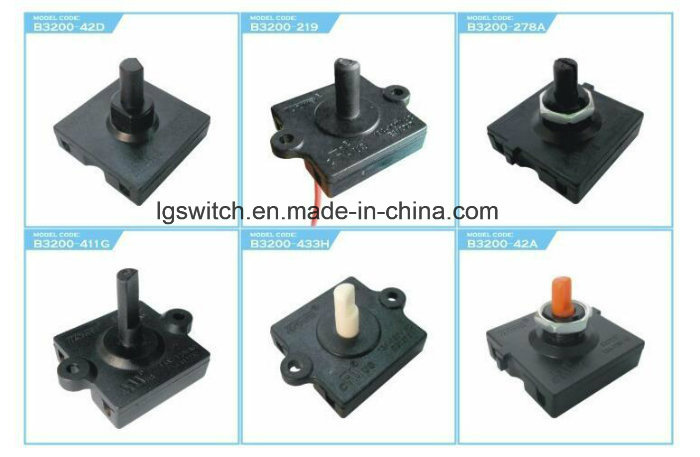

1) #B3400-24A: Nut Mounted
2) #B3400-24B: Jockey for position
3) #B3400-24: Pair of mounting holes

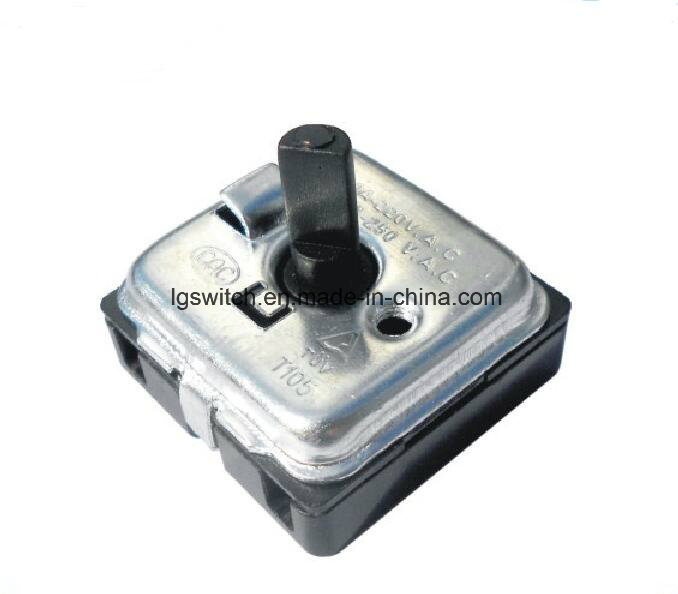

Material:
Cover: Zinc plating Iron
Insulating piece: PF Grade: Pfcp207(XPC)
Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130° C Grade: Dupont
Movable Contract: Copper
Terminals: Brass
Base: Bakelite Flame rating: V0 Temperature: 130° C Grade: Dupont
Apply to:

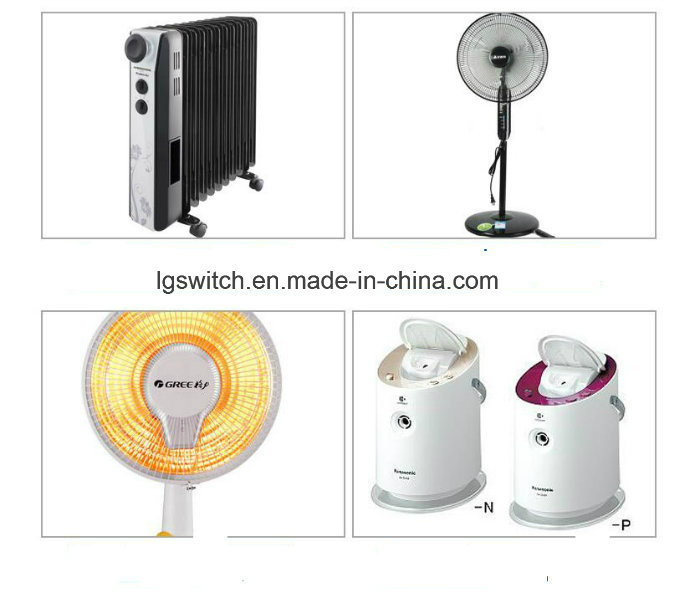

Oven, Electric Heater, Electric Cooker etc. High-Power home appliancesProduct Description
Item | B3200-42 |
Material | V0 fireproof PC and cooper and metal |
Rating | 13A-120V AC 10(3)A-250V AC |
Life cycles | 10000 |
Certificates | TUV,UL,CUL,CB,PSE,CQC |
Color | Black and customized |
Size | And assemble distance is 36 mm |
| |
Moq | 1000pcs |
Service type | OEM and ODM are welcome |
NW&GW of products | NW 16.01g/pcs GW 17.2g/pcs |
Package details | The carton size for exporting is 33*29*24cm. |
Production capacity | 20000pcs/day ,the material prepare for 7-10 days |
Lead time | According to the order quantity ,as usual,15-20days for regular products |
Payment terms | T/T,L/C |
Loading port | Shenzhen or customized |
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.
Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
