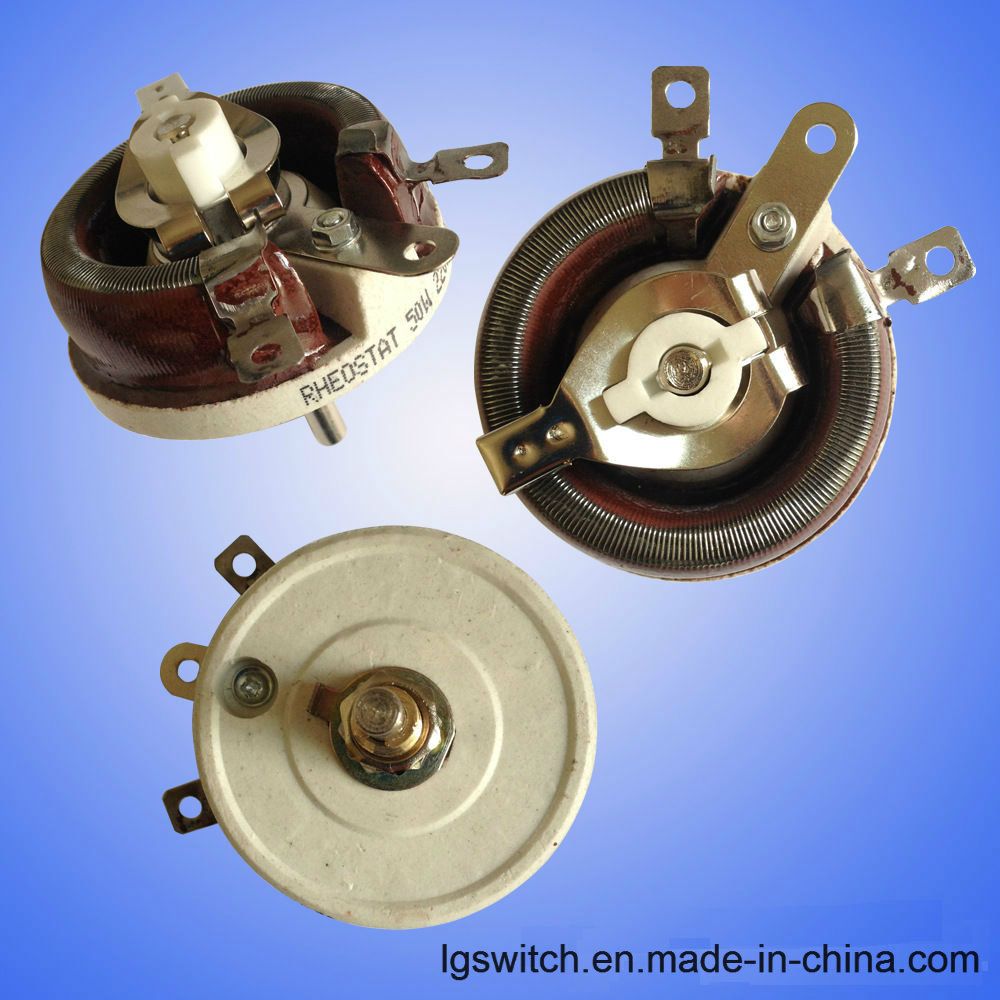

Lgswitch 50ohm 50 W 1/4" Roud Shaft Rheostat Guitar Amplifier Rotary Resistor Potentiometer
| Price: |
US $ 0.1-0.3/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Specifications:
Standard resistance tolerance: K (±10%)
Closer tolerances are available upon customers request
Wattage rating styles to choose: 25, 50 and 100W
Wide resistance range: 5Ω to 5KΩ (maximum)
Applications:
Use BC1 series as rheostats or potentiometer to control thespeed of a motor by limiting the flow of current through them
They are used in many small appliances such as blenders,mixers, fans and power tools
BC1 Rheostats series are also used as test instruments toprovide an accurate resistance value
While BC1 can be used to control electric ovens and cooktops,thermostats are preferred because they have additional parts whichautomatically adjust the current flow to maintain a constanttemperature
Specifications
Rotary Variable Resistor,Adjustable Load Resistor
1.Professional resistor manufacturer
2.Strict production process
3.OEM&ODM
Rotary Variable Resistance /Adjustable Load Resistor/Slide Rheostat
Production
name |
BC1 variable resistor,variable wirewound resistor ,power potentiometer |
Power rating |
25W-3000W |
Resistance value |
1Ω-10KΩ |
Resistance tolerance |
±5%,±10% |
Features
|
1.High power rating,resistance to humidity, resistance value in great adjustable range.
2.Widely used in educational modeling,load simulations,industiral machinery RPM adjustment,
voltage and current adjustment,instruments,and automated control installations, ect.
3.Can provide the knob with customers requirement.
|
Common
specification |
12.5W,25W,50W,100W,150W,300W,500W ect. |
Performance
|
Test item |
Test condition |
performance |
Insulation
resistance |
JIS-C-5261 6-1
500V DC |
100 MΩ Min |
Dielectric
withstanding
voltage |
JIS-C-5261 7-1 1000V DC
60s Between terminal and axis |
Free or appearance or
structural irregularity |
Terminal
strength |
JIS-C-5261 6-5 3kg 30s |
Free or appearance or
structural irregularity
ΔR≤±(2%+0.1Ω) |
Vibration |
JIS-C-5261 6-6 1.5m/m
10-50-10 HZ/min 2H each |
Free or appearance or
structural irregularity
ΔR≤±(2%+0.1Ω) |
Load life |
JIS-C-5261 7-7
|
Free or appearance or
structural irregularity
ΔR≤±(5%+0.1Ω) |
Full gyration
angle |
JIS-C-5261 6-1 |
300±5°C |
Flame
retardation |
100%-600% rated power load |
US UL-94 flame retardation
test V-0 grade noncombustible |
Cooperation partner |
SAMSUNG,LG, TAIDA,CHANGHONG,TCL,KONKA ,ECT |
NOTE |
1. For customer specifications,please contact us to discuss the details.
2. Different power rating owning multi weight ,dimension and packing .
3. More details, please contact us. |
Sample:
1. Free charge sample: Could provide(less than 5 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 10~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
| Guanjun (L&G) Electronics specialize in this field more than 20 years,with good quality and pretty competitive price |
| . Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs |
| . Original manufacturer with direct factory price, Competitive & Fashionable |
| . High management Standard for quality control |
| . Small order acceptable: 500pcs are welcome |
| . Safe payment terms: T/T, Western Union, are available |
| . Prompt Delivery & Lowest shipping cost : We can ship out within 30 days for general order |
| . OEM available, Customers' designs are warmly welcome |
1.Once we get your inquire for our switches, we will reply you within 30 min
2.Checking the drawing and all details of our switches with you, if you think it is ok, then we need your signature on our drawing for final confirmation.
3.Quotation will be sent to you accordingly.
4.After getting your signed quotation, samples will be sent to you immediately.
5.If our switches passed your testing, you may release to us.
6.Receiving your official order, we will let you know our shipping date soon.
7.Paying 50% for us, we will start to proceed your order to keep the goods finished on-time.
8.Balance 50% payment before shipment.
9.Getting all payment from you, goods will be shipped to you per your requested shipping way
Samples & Packaging & Shipping:
1)Samples:
A.Free for you, Quantity less than 6 pcs, freight collected.
B.Lead time for samples: 3~7 days for preparing samples.
2) Shipping
A.Couriers:Fedex, DHL, UPS, TNT
B.Other: Air or by Sea
As we have a long time cooperation with Courier agent, we can get a priority price for you. We can quote you the transportation charges at first for your comparasion.
FAQ
Q1--What is your MOQ?
In general ,our MOQ is 500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 1~10 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, CQC, Nemko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

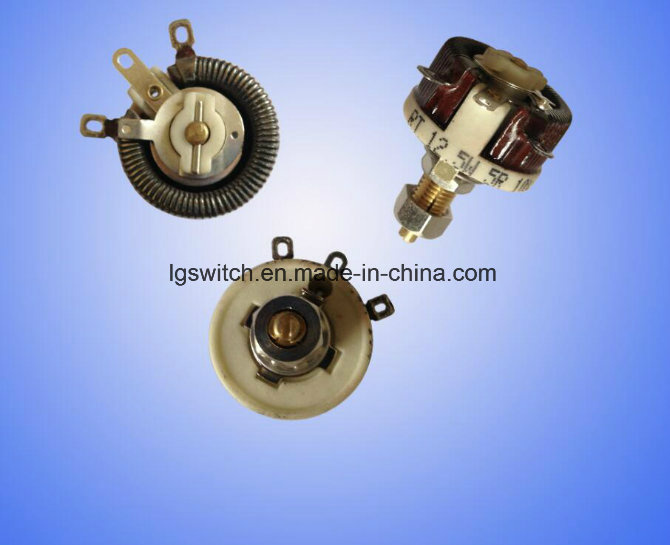

| Prod Model: |
RT |
| Wattage Rating Styles To Choose: |
25, 50 and 100W |
| The Temperature: |
55c to 350c |
| Wide Resistance Range: |
5ohm to 5kohm (Maximu) |
| Colour Of Variable Resistor: |
Green or Brown |
| Rated Power: |
12.5-300W |
| Resistance: |
Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
SMD Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Type: |
Fuse Resistor |
| Shape: |
Round |
| Brand: |
L&G |
