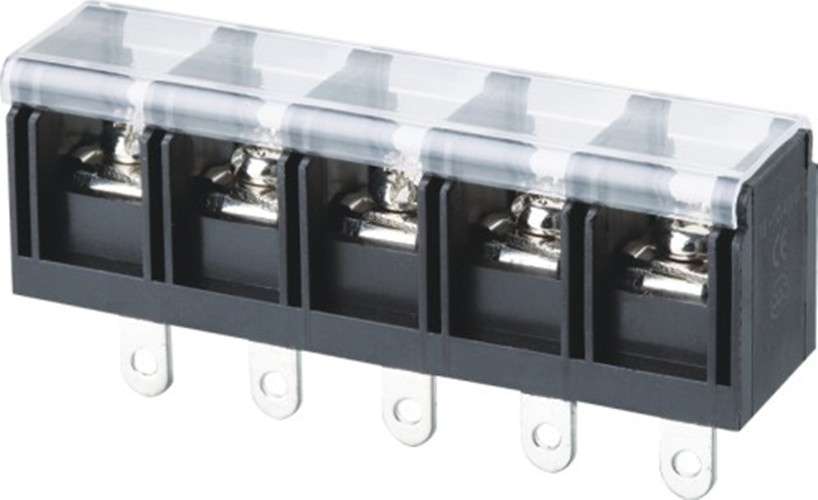

Barrier Terminal Block with Protective Cover for Motor Control (WJ78H-13.0)
| Price: |
US $ 0.2-0.21/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WJ78H-13.0mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
13.0mm |
| Screws: |
M4.0 Steel Ni Plated |
| Pin Header: |
Brass Sn Plated |
| Housing: |
PA66 UL94V-0 |
| Application: |
PCB |
| Environmental Protection: |
Resistance to Environmental |
| Connection Mode: |
In-Line Connector |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
Wanjie |
Product Description
CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.
Because of advanced production and test equipment, we could offer high quality and more competitive products. With many years development, we also have own R&D center. Therefore, perfect OEM/ODM service can be supplied.
Of course, quality must come first under any circumstances.
Hope to cooperate with you!
www.china-wj.com
Why choose us:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback
General Order Information:
1. Payment
A. T/T in advance
B. FOB SHANGHAI(NINGBO) price
C. Accept RMB or USD
2. Packing
A. Plastic bag + box + carton
B. Special package requirements acceptable
C. All products are protected by standard export carton.
3. Shipping
A. DHL, TNT, UPS, Fedex, EMS, SF, other service acceptable
B. Small order delivered within one week
4.Lead time
A. One week after receiving your payment
WJ78H-13.0| MATERIAL |
|
|
| Screws |
| M4.0 Steel Ni Plated |
| Pin Header |
| Brass Sn Plated |
| Housing |
| PA66 UL94V-0 |
|
|
|
| ELECTRICAL |
|
|
| Standard |
| UL | IEC |
| Rated voltage |
| 600V | 750V |
| Rated current |
| 40A | 41A |
| Wire range |
| 18-10AWG | 6.0mm² |
| Contact Resistance |
| 20mΩ |
| Insulation resistance |
| 500mΩ /DC500V |
| Withstanding volatge |
| AC 2000V/1 min |
|
|
|
| MECHANICAL |
|
|
| Temp.range |
| -40º C ~ +105º C |
| Torque |
| 12.24kgf-cm/1.2Nm/10.6Lbin |
If you can't find the exact product you need in the pictures, please don't go away.
Just contact me freely or send your sample and drawing to us.
We will reply you as soon as possible.
Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.
With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.
We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.
With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.
All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
