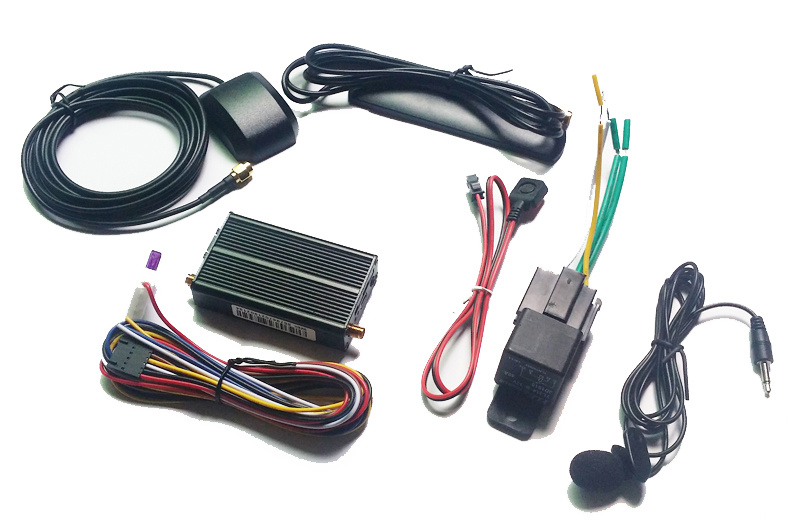

Battery Powered GPS GSM Car Tracker with SMS Remote Engine Stop

Name: Battery Powered GPS GSM Car Tracker with SMS Remote Engine Stop
Brand: all-electronics-online.com
SKU: 725128272
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1. Key Features:

- SMS/GPRS Communication
- Wide Power range: 9-36V DC/1.5A
- I/O Ports: Ignition, Immobilizer, Panic, Door Status detection
- Low Power consumption with Open CPU technology
- Internal memory store for GPRS null zone data 2000waypoints
- Time based/Distance based position report
- Mileage Report
- Alarm alerts: GEO Fence, Speed over, Power tamper and Panic
- Voice Listen-in
- Backup Internal battery included
- OTA

2. Description:

TR-11E is a GSM/GPS tracker for car tracking application. It's with superior GPS receiver sensitivity, fast TTFF and Quad bands (850/900/1800/1900MHz) design. And it can continuously report current position to backend server.TR-11E is developed by "openCPU" technology which brought lower cost, lower power consumption and fast response speed advantages.

- Hardware features:

. OpenCPU Technology
. 2000Waypoints for GPRS Null zone data storage
. External GSM/GPS Antenna
. Internal backup battery with 350mAH
. USB Port for configuration and firmware program

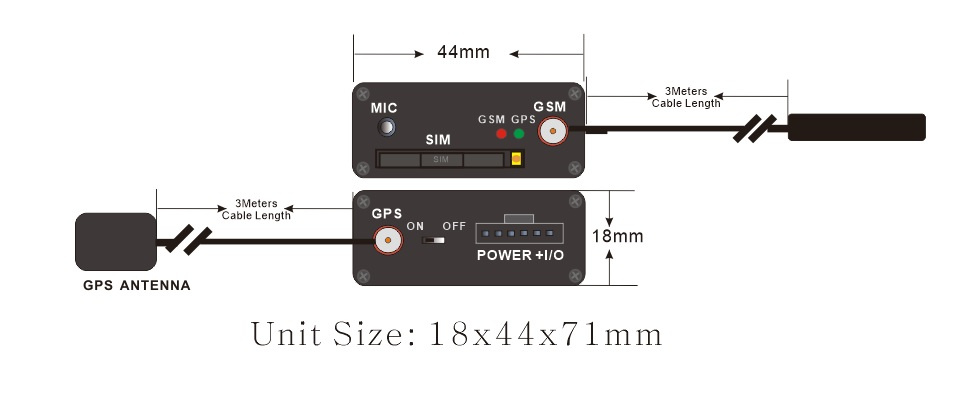

- Mechanical Size:

- I/O Interface Introduction:

Item	Pin No.	Wire Color	Remark
Power	5	Black	Power Ground
Power	6	Red	Power +(12-36V DC)
I/O	1	Blue	Door Status detection(=0V Effective)
	2	Brown	High Trigger Input
	3	Yellow	Cut-off, Digital output
	4	White	Ignition Detection(ACC)

Prod Model:	TR-11E
GSM Frequency:	Quad Bands (850/900/1800/1900MHz)
Antenna:	External Type with SMA Connector
Type:	GPS Tracker
Use:	Automotive
Port Number:	Multiplex Multi-purpose Channel
Model:	Integration Type
Operating Principle:	GSM/GPS
Screen Size:	No Screen
Carrier Frequency:	Quad Bands
Chip:	Sirf + Queclink Open CPU
Brand:	7-24telematics
