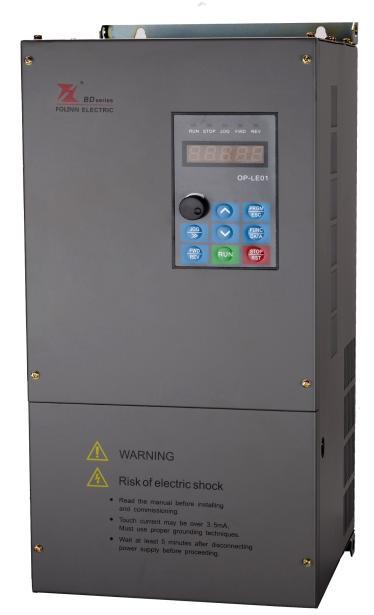

Bd341 Special Inverter for Pipe Pile Machine High Performance Vector Control Frequency Inverter VFD Variable Frequency Drive AC Driv

Name: Bd341 Special Inverter for Pipe Pile Machine High Performance Vector Control Frequency Inverter VFD Variable Frequency Drive AC Driv
Brand: all-electronics-online.com
SKU: 759624485
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

product overview

BD341 series high performance special frequency converter for pipe pile machine is a tailor-made product for pipe pile machine characteristics, its hardware and software platforms represent cutting edge technology, with superior performance and perfect function can fully meet requirements of pipe pile production. Large starting torque, strong overload capacity and various default modes are the outstanding features.

Product features

Advanced current limiting technology can guarantee the equipment starting smoothly

self-motion and manual operation functions conversion

Five kinds of working modes can meet the production of various specifications of pipe pile, 4 period of frequency and time can be set up in each mode

functions of power lost memories

Display current selected mode and running time, there' re add timing and reduction of timing two kinds of timing ways

Improve the starting torque of converter by adjusting V/F curve and the automatic torque appreciation

make the product be competitive in price by eliminating the traditional PLC + text display control

Good structure design and production technology, improve the ability of moisture-proof and ensure the operation reliability

Perfect protection function: input overvoltage, undervoltage, overload, accelerated flow, constant speed over current, slow flow over current, short circuit, real-time monitoring to protect and ensure safe operation of motor

Technical parameters

Input voltage:3AC380V±15%

Input frequency:47~63Hz,power factor≥95%

Power range:30kW~200kW

Control mode:Non-PG vector control,V/F control

Source of operation instruction::given by panel, terminal and RS485 communication

Source of given frequency:given by panel figure, analog quantity, RS485 serial communications, multi-speed simple PLC and PID etc.

Overload capacity:type B :180% rated current10s, 200% rated current10s,

Pull-in torque:0.5Hz/150%(non-PG vector control(SVC)),range of speed 1:100(SVC),control accuracy of speed : ±0.5%

Carrier frequency:1.0kHz~15.0kHz,and can be automatically adjusted according to temperature and load characteristic.

Frequency resolution:the given digital value is 0.01Hz,and the analog quantity is given as the highest frequency plus 0.1%

Torque elevation:Manual torque can elevate 0~30%

Brake:DC braking when starting and closing down.

Five kinds of modes can be selected, time and frequency setting can be programmed separately in each mode

With power storage function, it will continue working according to last running mode when power on.

With manual/automatic mode selection, easy transformation

With pre-reverse function, it can reverse according to setting time and then turn to forward which guarantee pipe pile forming technology

LED can display set frequency, output frequency, output voltage, current output etc

Applications

Pipe pile machine molding machine, tube drawing machine

Why choose Folinn?

1. One of earliest inverter (AC Drive) manufacturer in China since 1994

(more than 20 years history)

2.TOP 10 inverter manufacturer in China many years continuous

3. CEEIA Council Member of Inverter Industry in China

4. National Torch Program

5. National High-tech Enterprise

Our customer

LSIS Co., Ltd -(Top of industrial electrical automation products manufacturer in Korea)

2008 Beijing Olympic stadium (National stadium)

Coca Cola Company Qingdao branch

SLOF ( Shengli Oil Field---Second largest oil production base in China)

Tsingtao Beer-(one of the global top 500 companies)

Shanghai East Pump(Group)-(Top pump brand in china)

etc......

Our AC drive have export to all over the world.Such as USA,Canada,Malaysia,Russia,Australia,Portugal,

Switzerland,Korea,Poland,United Arab Emirates,Viet Nam,Korea,,Pakistan,Kazakhstan,India,

Mexico,etc.

1. Payment

For small order by air or by express, it is 100% T/T in advance. For large order by sea, 30% deposit of the order value should be paid, 70%

of the balance payment should be done against the copy of bill of lading.

2. Delivery terms
Sample order: 3-7 working days for delivery. Large order: 14-20 working days for delivery.

3. Packing
Folinn standard packing (carton or wooden case), OEM packing (≥10,000usd per order)

4. Warranty
24 months from shipping date of B/L and lifetime technical support services.

Main component:

IGBT: Infineon-Germany (We are Infineon Technologies Global "best strategic partner"), Fuji Electric-Japan

Capacitor: Nichicon-Janpan,EPCOS-Germay,Jianghai& Yipin(World-class brand in China)

CPU: Texas Instruments-Germany,Avago Technologies-USA,SHARP-Japan,TOSHIBA-Japan

Bridge rectifier: SEMIKRON-Germany,SanRex-Japan,Microsemi-USA,SILING(World-class brand in China)

Contact person:

Daisy
Sales department

Zhejiang New Folinn Electric Co.,Ltd

Add: No.2.Jinhuan Road,Chengbei Street,

Wenling City,Zhejiang,China
Mobile:+86-15757626107
Tel:+86-576-86421218

Fax:+86-576-86421168

web:http://www.chinafolinn.com

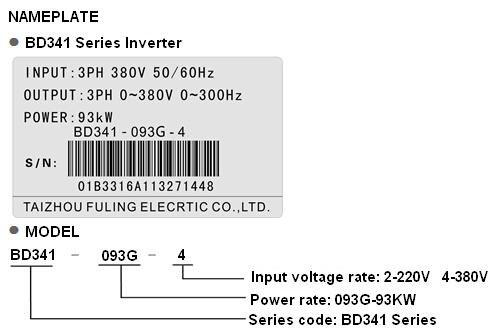

Prod Model:	BD341
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Dark Grey
Communications:	RS485
Certifications:	ISO9001:2008, CE
Motor Control:	Sensorless Vector Control
Enclosures:	IP20
OEM Service:	Accept
Export Markets:	Global
Application:	Single-phase Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Folinn
