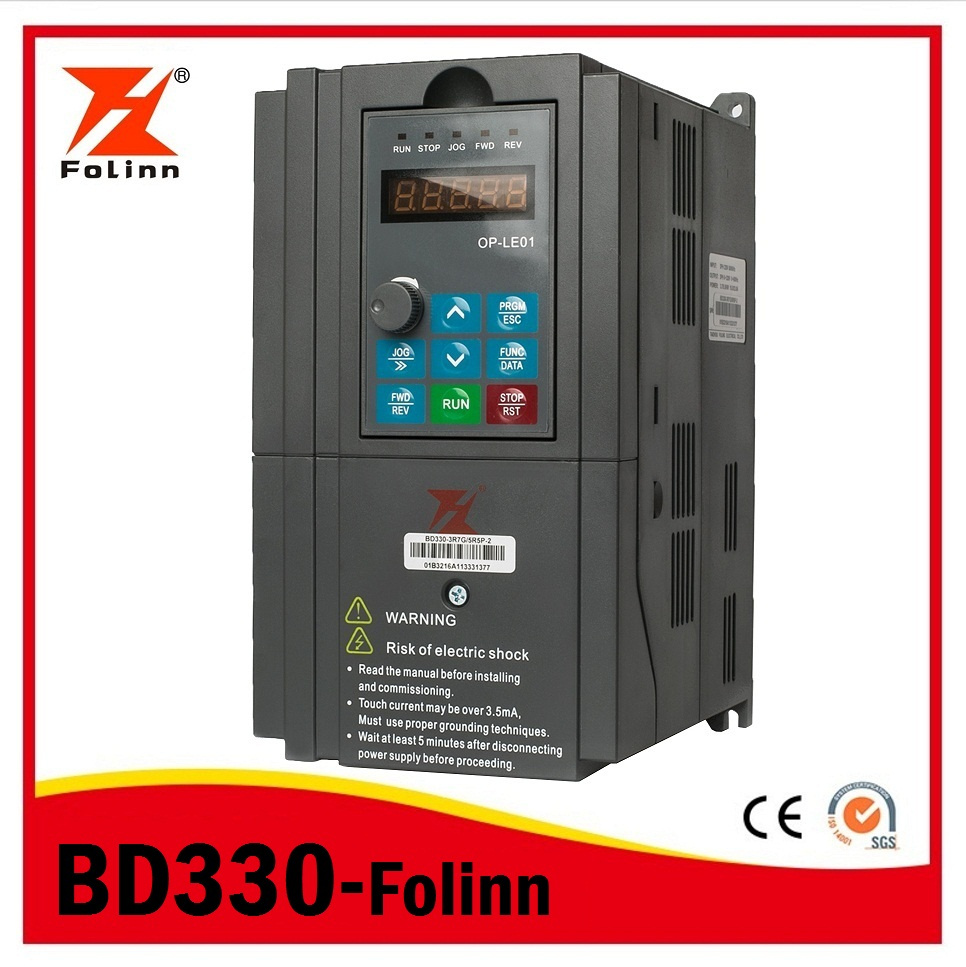

BD330  Series High Performance Vector Control General Purpose Inverters

Specification
1AC220V±15%  0.5kW~3.7kW
3AC220V±15%  0.75kW~55kW
3AC380V±15%    0.75kW~800kW

Technical Features
I/O Features	Input Voltage Range	1AC220V±15% 3AC220V±15% 3AC380V±15%
	Input Frequency Range	47-63Hz
	Output Voltage Range	0~rated input voltage
	Output Frequency Range	0~200Hz

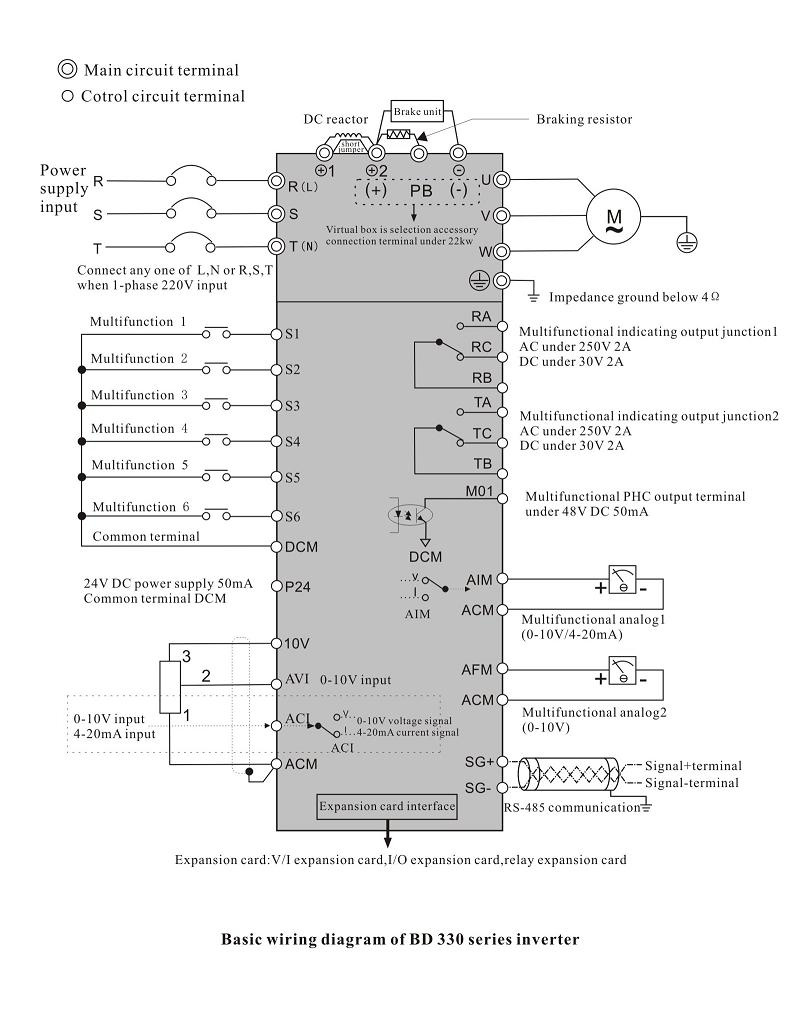

I/O Terminals	Input Terminals	6 programmable digital inputs,it can be extended to 3 digital inputs,1 high speed pulse input; 1 analog volatge input, 0~10VDC; 1 volatge input 0~10VDC or current input 4~20mA
	Out Terminals	1 open collector output ,it can be extened to 1 high speed pulse output ; 2 relay outputs,it can be extended 4 relay outputs; 2 analog output: 1 volatge output 0~10VDC,it can be extended to current output 4~20mA ,1 volatage output 0~10VDC or current output 4~20mA
Control function	Control system:	High performance vector control inverter based on DSP
	Control Mode	V/F Control ,sensorless vector control(SVC)
	Frequency Reference Source	Digital,analog,pulse frequency,serial communication,multi-step speed,simple PLC and PID, The combinaton of multi-modes and the different modes can be switched.
	Overload Capacity	G type: 150% rated current-60s,180% rated current-10s P type: 120% rated current-60s, 150% rated current-10s
	Start Torque	0.5Hz/150%(SVC)
	Speed Adjusting Range	1:100 (SVC)
	Speed Accuracy	±0.5%(SVC)
	Carrier Frequency	1.0 to 15.0kHz;automatically adjust carrier frequency according to the load characteristics.
	Resolution of Frequency setting	Digital setting:0.01Hz Anolog setting:maximum frequency x 0.1%
	Torque Boost	Automatic torque boost;manual torque boost 0~30%
	Acc/Dec Mode	Linear,2 types Acc/Dec times
	DC Braking	Supports starting and stopping DC braking
	Jogging control	Jog frequency range:0.0Hz to max.frequency; Jog Acc/Dec time:0~3600.0s
	Simple PLC and Multi-speed operation	Built-in PLC or control terminal,16 steps speed can be set
	Built-in PID	Easy to realize closed-loop control system for the process control.
	Automatic voltage regulation(AVR)	Automatically maintain a constant output voltage when the voltage of electricity grid changes
	Other Functions	Traverse control function:multiple triangular pulse frequency control
		Over-torque and under-torque detection function
		Switchover function: switch main / auxiliary frequency,run command, local / remote
		None-stop when instantaneous power off
		Common DC bus function: multiple inverters can use a common DC bus
		Speed traking function: Smoothly start the running motor
		Timing control: timing setting range 0~65535h
		Jump frequency function,which prevents mechanical resonance and makes the system more stable and reliable;
		Protection function: overvolatge,undervoltage,overcurrent,overload,overheat,overcurrent stall,overvoltage stall,phase-failure,external fault,EEPROM store abnormalities,PID feedback abnormalities,communication error,etc.
		Other functions:parameter restore,parameter self-learning,slip compensation,energy saving,etc.
Display	LED Display	Can display: setting frequency,output frequency,output voltage,output current etc.
Environmental Constraint	Protection level	IP20
	Temptemperature	-10ºC~+40ºC,it will be derated if ambient emperature exceeds 40ºC
	Humidity	Below 90%RH (no condensation)
	Vibration	≤20Hz 9.8m/s(1G), ≥20Hz 5.88m/s(0.6G)
	Altitude	Below 1000m,indoor(place without corrosive gas, liquid)
	Storage temperature	-20ºC~+60ºC
	Cooling type	Forced cooling

Selection Guide

Model No.	Rated output Power(kW)	Rated input current(A)	Rated output current(A)
3AC 220V±15% 47Hz~63Hz
BD330-0R5G-2	0.5	3.8	3.2
BD330-0R7G-2	0.7	4.9	4.1
BD330-1R5G-2	1.5	8.4	7
BD330-2R2G-2	2.2	11.5	10
BD330-3R7G-2	3.7	18	15
BD330-5R5G-2	5.5	24	23
BD330-7R5G-2	7.5	37	31
BD330-011G-2	11	52	45
BD330-015G-2	15	68	58
BD330-018G-2	18.5	84	71
BD330-022G-2	22	94	85
BD330-030G-2	30	120	115
BD330-037G-2	37	160	145
BD330-045G-2	45	198	180
BD330-055G-2	55	237	215
BD330-075G-2	75	317	283
BD330-093G-2	93	381	346
3AC 380V±15% 47Hz~63Hz
BD330-0R7G/1R5P-4	0.7/1.5	3.4/5.0	2.5/3.7
BD330-1R5G/2R2P-4	1.5/2.2	5.0/5.8	3.7/5.0
BD330-2R2G/3R7P-4	2.2/3.7	5.8/10.5	5.0/8.5
BD330-3R7G/5R5P-4	3.7/5.5	10.5/14.6	8.5//13
BD330-5R5G/7R5P-4	5.5/7.5	14.6/20.5	13/18
BD330-7R5G/011P-4	7.5/11	20.5/26	18/24
BD330-011G/015P-4	11/15	26/35	24/30
BD330-015G/018P-4	15/18.5	35/38.5	30/39
BD330-018G/022P-4	18.5/22	38.5/46.5	39/46
BD330-022G/030P-4	22/30	46.5/62	46/58
BD330-030G/037P-4	30/37	62/76	58/75
BD330-037G/045P-4	37/45	76/92	75/90
BD330-045G/055P-4	45/55	92/113	90/110
BD330-055G/075P-4	55/75	113/157	110/150
BD330-075G/093P-4	75/93	157/180	150/170
BD330-093G/110P-4	93/110	180/214	170/210
BD330-110G/132P-4	110/132	214/256	210/250
BD330-132G/160P-4	132/160	256/307	250/300
BD330-160G/200P-4	160/200	307/385	300/380
BD330-200G/220P-4	200/220	385/430	380/430
BD330-220G/250P-4	220/250	430/468	430/470
BD330-250G/280P-4	250/280	468/525	470/520
BD330-280G/315P-4	280/315	525/590	520/620
BD330-315G/350P-4	315/350	590/665	620/650
BD330-350G/400P-4	350/400	665/785	650/754
BD330-400G/500P-4	400/500	785/965	754/930
BD330-500G/630P-4	500/630	965/1210	930/1180
BD330-630G/710P-4	630/710	1210/1465	1180/1430

Applications

Metal processing, numerically-controlled machine tool, drawbench and other mechanical equipment.
Boiler fan, induced draft fan, exhaust blower underground coal mine.
Municipal engineering, energy conservation transformation for central air-conditioning.
Cyclone cluster, centrifugal fan, etc.
Circulating water pump, make-up pump, oil field injection pump, fuel delivery pump, music fountain.
Papermaking equipment, chemical industry, pharmaceutical industry, textile industry, etc.
Textile: P-jump Winders, Extruders, Tufting Machines Packaging: In-feed / Out-feed, Case Packing, Bottling & Canning, Carton Manufacturing. Beverage packing Plastics & Rubber: Extruders, Blow Molding, Thermoforming, Injection Molding. Pulp & Paper: Paper Machines, Debarkers, Winders, Saw Mills Converting: Coaters ,Laminators ,Slitters , Flying Cutters Air Handling: Supply and Return Fans ,Cooling Towers ,Spray Booths ,Dryers Oil & Gas: Top Drives, Pumpjacks, Down-hole Pumping Centrifuges Material Handling: Conveyors, Sortation, Palletizers, Coil Winding Metals: Stamping / Punch Press, Wind /Unwind, Cut-to-length, cable drawing. Wire Draw Construction Materials: Kilns, Planers, Flying Cutoff, Mixers Laundry: Dryers, Extractors, Folders, Washers Food & Beverage: Conveyors, Fillers, Mixers, Centrifuges Automotive: Stamping, Test Stands, Indexing, Metal Cuttin.Pumping: Metering, Irrigation, Chillers, Positive Displacement, Dye Pumps Fans: blower, Exhaust fans, suck fans,etc

Zhejiang New Folinn Electric Co.,Ltd

One of earliest AC Drives (frequency inverter) manufacturer of China since 1994.
China Top 10 Brand of Low-voltage Inverter
CEEIA Council Member of Inverter Industry
National Torch Program Item
Zhejiang High-tech Enterprise
Zhejiang Famous Brand

Why choose Folinn?

1. One of earliest inverter (AC Drive) manufacturer in China since 1994

(more than 20 years history)

2.TOP 10 inverter manufacturer in China many years continuous

3. CEEIA Council Member of Inverter Industry in China

4. National Torch Program

5. National High-tech Enterprise

Our customer

LSIS Co., Ltd -(Top of industrial electrical automation products manufacturer in Korea)

2008 Beijing Olympic stadium (National stadium)

SLOF ( Shengli Oil Field---Second largest oil production base in China)

Tsingtao Beer-(one of the global top 500 companies)

Shanghai East Pump(Group)-(Top pump brand in china)

etc......

Our AC drive have export to all over the world.Such as USA,Canada,Malaysia,Russia,Australia,Portugal,

Switzerland,Korea,Poland,United Arab Emirates,Viet Nam,Korea,,Pakistan,Kazakhstan,India,

Mexico,etc.

1. Payment

For small order by air or by express, it is 100% T/T in advance. For large order by sea, 30% deposit of the order value should be paid, 70%

of the balance payment should be done against the copy of bill of lading.

2. Delivery terms
Sample order: 3-7 working days for delivery. Large order: 14-20 working days for delivery.

3. Packing
Folinn standard packing (carton or wooden case), OEM packing (≥10,000usd per order)

4. Warranty
24 months from shipping date of B/L and lifetime technical support services.

Main component:

IGBT: Infineon-Germany (We are Infineon Technologies Global "best strategic partner"), Fuji Electric-Japan

Capacitor: Nichicon-Janpan,EPCOS-Germay,Jianghai& Yipin(World-class brand in China)

CPU: Texas Instruments-Germany,Avago Technologies-USA,SHARP-Japan,TOSHIBA-Japan

Bridge rectifier: SEMIKRON-Germany,SanRex-Japan,Microsemi-USA,SILING(World-class brand in China)

Contact person:

Daisy
Sales department

Zhejiang New Folinn Electric Co.,Ltd

Add: No.2.Jinhuan Road,Chengbei Street,

Wenling City,Zhejiang,China
Mobile:+86-15757626107
Tel:+86-576-86421218

Fax:+86-576-86421168

web:http://www.chinafolinn.com

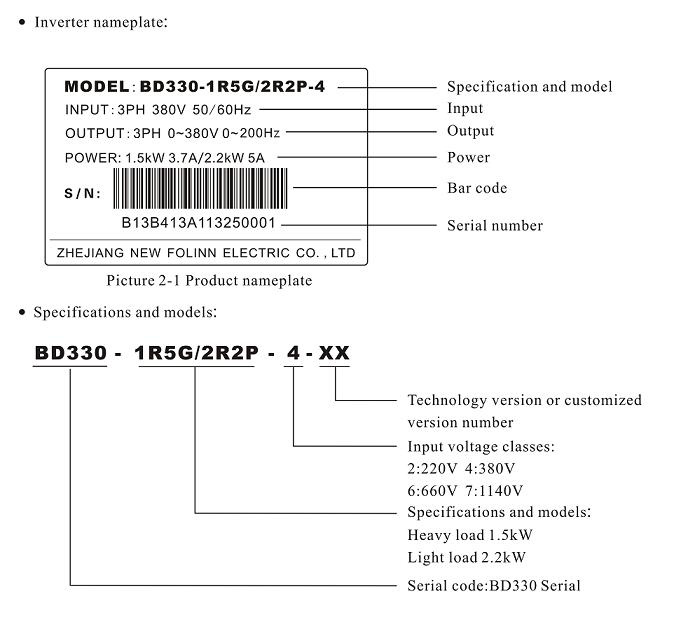

Prod Model:	BD330
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Dark Grey
Communications:	RS485
Certifications:	ISO9001:2008, CE
Motor Control:	Sensorless Vector Control
Enclosures:	IP20
OEM Service:	Accept
Export Markets:	Global
Application:	Single-phase Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Folinn
