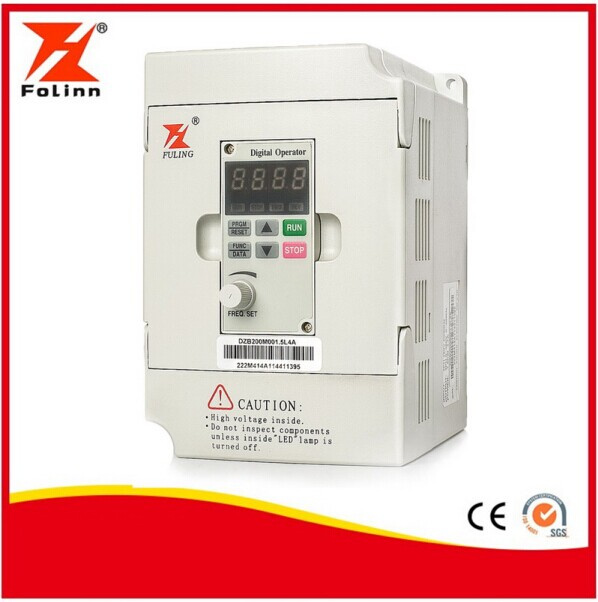

DZB200M Series High Performance Mini Economy General Purpose Inverters
Specification
1AC220V±15% 0.5kW~0.75kW
3AC220V±15% 0.55kW~0.75kW
3AC380V±15% 0.75kW~2.2kW
| Technical Features |
I/O
Features | Input Voltage Range |
| 1AC220V±15% 3AC220V±15% 3AC380V±15% 3AC660V±10% 3AC1140V±15% |
| Input Frequency Range |
| 47-63Hz |
| Output Voltage Range |
| 0~rated input voltage |
| Output Frequency Range | 0~300Hz (>600Hz can be produce as request) |
I/O
Terminals | Input Terminals |
| 8 programmable digital inputs,can be extended to 1 high speed pulse input;
2 programmable analog input: 1 volatge input 0~10V or current input 4~20mA |
| Output Terminals |
| 1 open collector output
1 relay outputs
1 analog output: it can be extended to current output 0/4~20mA or voltage output 0/2~10V |
| Control Mode |
| V/F Control |
| Frequency Reference Source |
| Digital,analog,pulse frequency,serial communication,multi-step speed simple PLC and PID,
The combination of multi-modes and the different modes can be switched. |
| Overload Capacity |
| 150% rated current-60s,180% rated current-10s |
| Start Torque |
| 1.5Hz/150% |
| Speed Adjusting Range |
| 1:100 |
| Speed Accuracy |
| ±0.5% |
| Carrier Frequency | 1.0 to 15.0kHz;automatically adjust carrier frequency according to the load characteristics. |
| Resolution of Frequency setting | Digital setting:0.01Hz Anolog setting:maximum frequency x 0.1% |
| Torque Boost | Automatic torque boost;manual torque boost 0~30% |
| Acc/Dec Mode | Linear,2 types Acc/Dec times |
| DC Braking | Supports starting and stopping DC braking |
| Jogging control | Jog frequency range:0.0Hz to max.frequency; Jog Acc/Dec time:0~3600.0s |
| Simple PLC and Multi-speed operation | Built-in PLC or control terminal 8 steps speed can be set |
| Built-in PID | Easy to realize closed-loop control system for the process control. |
| Automatic voltage regulation(AVR) | Automatically maintain a constant output voltage when the voltage of electricity grid changes |
| Other Functions | Traverse control function:multiple triangular pulse frequency control |
| Over-torque and under-torque detection function |
| None-stop when instantaneous power off |
| Common DC bus function: multiple inverters can use a common DC bus |
| Speed traking function: Smoothly start the running motor |
| Jump frequency function,which prevents mechanical resonance and makes the system more stable and reliable; |
| Protection function: overvolatge,undervoltage,overcurrent,overload,overheat,overcurrent stall,overvoltage stall,phase-failure,external fault,EEPROM store abnormalities,PID feedback abnormalities,communication error,etc. |
| Other functions:parameter restore,parameter self-learning,slip compensation,energy saving,etc. |
| Display | LED Display | Can display: setting frequency,output frequency,output voltage,output current etc. |
|
|
|
|
|
|
| Environmental Constraint | Protection level | IP20 |
| Temptemperature | -10ºC~+40ºC,it will be derated if ambient emperature exceeds 40ºC |
| Humidity | Below 90%RH (no condensation) |
| Vibration | ≤20Hz 9.8m/s(1G), ≥20Hz 5.88m/s(0.6G) |
| Altitude | Below 1000m,indoor(place without corrosive gas, liquid) |
| Storage temperature |
| -20ºC~+60ºC |
| Cooling type |
| Forced cooling |
Why choose Folinn?
1. One of earliest inverter (AC Drive) manufacturer in China since 1994
(more than 20 years history)
2.TOP 10 inverter manufacturer in China many years continuous
3. CEEIA Council Member of Inverter Industry in China
4. National Torch Program
5. National High-tech Enterprise
Our customer
LSIS Co., Ltd -(Top of industrial electrical automation products manufacturer in Korea)
2008 Beijing Olympic stadium (National stadium)
Coca Cola Company Qingdao branch
SLOF ( Shengli Oil Field---Second largest oil production base in China)
Tsingtao Beer-(one of the global top 500 companies)
Shanghai East Pump(Group)-(Top pump brand in china)
etc......
Our AC drive have export to all over the world.Such as USA,Canada,Malaysia,Russia,Australia,Portugal,
Switzerland,Korea,Poland,United Arab Emirates,Viet Nam,Korea,,Pakistan,Kazakhstan,India,
Mexico,etc.
1. Payment
For small order by air or by express, it is 100% T/T in advance. For large order by sea, 30% deposit of the order value should be paid, 70%
of the balance payment should be done against the copy of bill of lading.
2. Delivery terms
Sample order: 3-7 working days for delivery. Large order: 14-20 working days for delivery.
3. Packing
Folinn standard packing (carton or wooden case), OEM packing (≥10,000usd per order)
4. Warranty
24 months from shipping date of B/L and lifetime technical support services.
Main component:
IGBT: Infineon-Germany (We are Infineon Technologies Global "best strategic partner"), Fuji Electric-Japan
Capacitor: Nichicon-Janpan,EPCOS-Germay,Jianghai& Yipin(World-class brand in China)
CPU: Texas Instruments-Germany,Avago Technologies-USA,SHARP-Japan,TOSHIBA-Japan
Bridge rectifier: SEMIKRON-Germany,SanRex-Japan,Microsemi-USA,SILING(World-class brand in China)
