SZ CABLE mainly supply:
1-Enameled Wire( CCA wire, Al. wire, Copper wire)
2-Electric wire( CCA wire, Al. wire, Copper wire)
3-Electric cable( CCA wire, Al. wire, Copper wire)
4-Bare/tinned conductor wire( CCA wire, Al.-alloy wire, Copper wire)
5-Enameling machine(size from 0.02-8.00mm wire)
Advantages of enameled CCA wire:
As envelope alternatives of pure enameled copper wire, it has good performance of high frequency transmission, originally it was applied in various types of high-frequency electromagnetic induction coil; now in order to save more production cost, ECCA wire has been widely used in various types of electronic coils, transformers, inductors, rectifiers, and all kinds of large and small motors, and has excellent soldering performance. Its density is low, the weight of the unit product can at least save 40% of the copper wire, it can save a lot of cost of production material.
Specifications :
Enameled Copper clad aluminum(CCA) wire
Conductor:Copper clad aluminum(CCA)
Diameter: 0.10-8.00mm round enameled aluminum wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
Enamelled types : UEW,PEW,EIW,EI/AIW,AIW
Certification:UL Approved, iso9001, iso14001,RoHS,REACH
Product details:
Enameled Type | Polyester | Modified Polyester | polyester-imide | Polyamide-imide | polyester-imide /Polyamide-imide |
Insulation Type | PEW/130 | PEW(G)/155 | EIW/180 | EI/AIW/200 | EIW(EI/AIW)220 |
Thermal class | 130, CLASS B | 155, CLASS F | 180, CLASS H | 200, CLASS C | 220, CLASS N |
Conductor | CCA | CCA | CCA | CCA | CCA |
Size(mm) supply | 0.11-8.0 | 0.11-8.0 | 0.11-8.0 | 0.11-8.0 | 0.11-8.0 |
Enamel thickness | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) |
Standard | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
Product Features:
High breakdown voltage
Good adhesion
Tin soldering
Few pinhole
Sustained and stable quality
nameled aluminu
Main Applications :
All kinds of household electric motors, vacuum cleaner motor, electric motor
All kinds of transformers, inductors, rectifiers
All kinds of fan motor
All kinds of high frequency electric appliance

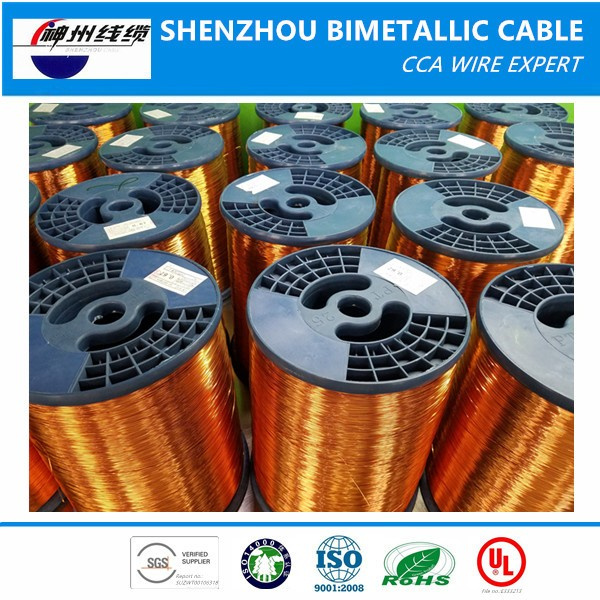

Product Pictures:
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 15 inspection personnel. Quality inspection team including incoming material, process and finished product inspection
4. Q: How large the scale of your company?
A: Our Company covers almost 40,000 square meters, Including 8 standard factory buildings.
5. Q: What's the main market of your company?
A: We have customers all over the world.
6. Q: What's your company 's product scope?
A: We have many kinds of products ,such as enameling machine, copper clad aluminum wire, enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire, copper rod, power wire and cable, communication cables.
7. Q: What's your company 's product scope?
A: We have many kinds of products ,such as enameling machine, copper clad aluminum wire, enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire, copper rod, power wire and cable, communication cables.
8. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Wujiang Dis. SuzhouCity, Jiangsu Province, China,
Near Shanghai Hongqiao Airport(90kms). We offer transportation service
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
