Enameled Aluminum ECCA Wire
SZ CABLE mainly supply:
1-Enameled Wire( CCA wire, Al. wire, Copper wire)
2-Electric wire( CCA wire, Al. wire, Copper wire)
3-Electric cable( CCA wire, Al. wire, Copper wire)
4-Bare/tinned conductor wire( CCA wire, Al.-alloy wire, Copper wire)
5-Enameling machine(size from 0.02-8.00mm wire)
Advantages of aluminum wire:
Due to much lower density than copper clad aluminum wire, weight per unit product can save at least 60% than the copper wire. Using aluminium wire will save much more cost of production materials.
Disadvantages of aluminum wire:
Tensile strength is about 30%-40% of the copper wire, the conductor is easy to stretch during production; The surface of the aluminum conductor is not easy to direct solder, special treatment of welding joints is required.
Specifications:
polyester-imide enamelled aluminum wire
Conductor:aluminum
Diameter: 0.11-8.00mm round enameled aluminum wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 180centigrade
Enamelled types : EIW(QZY)
Certification:UL Approved, iso9001, iso14001,RoHS,REACH
Product details:
Enameled Type | Polyester | Modified Polyester | polyester-imide | Polyamide-imide | polyester-imide /Polyamide-imide |
Insulation Type | PEW/130 | PEW(G)/155 | EIW/180 | EI/AIW/200 | EIW(EI/AIW)220 |
Thermal class | 130, CLASS B | 155, CLASS F | 180, CLASS H | 200, CLASS C | 220, CLASS N |
Conductor | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Size(mm) supply | 0.11-8.0 | 0.11-8.0 | 0.11-8.0 | 0.11-8.0 | 0.11-8.0 |
Enamel thickness | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) |
Standard | IEC60317-0-2 IEC60317-29 MW36-A | IEC60317-0-2 IEC60317-29MW36-A | IEC60317-0-2 IEC60317-29 MW36-A | IEC60317-0-2 IEC60317-29 MW36-A | IEC60317-0-2 IEC60317-29 MW36-A |
Product Features:
High breakdown voltage
Good adhesion
Few pinhole
Sustained and stable quality
Application Description
For polyester-imide enamelled aluminum wire
Polyester-imine enameled wire, Thermal class 180.
Thermal shock performance of the product is good, resistance to softening breakdown at high temperature, is excellent in mechanical strength, resistance to solvent and refrigerant resistance were better, the weakness is in a closed condition is easy to hydrolysis, widely used in high heat resistant requirements of the motor, electric appliance, instrument, electric tools, dry type power transformer windings.
Main Applications :
All kinds of household electric motors, vacuum cleaner motor, electric motor
All kinds of transformers, inductors, rectifiers

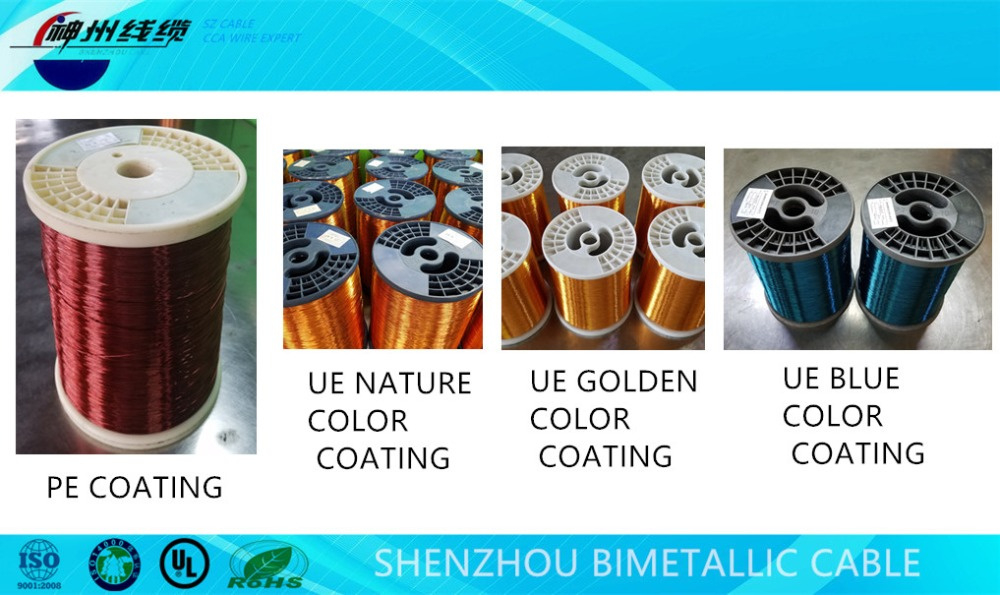

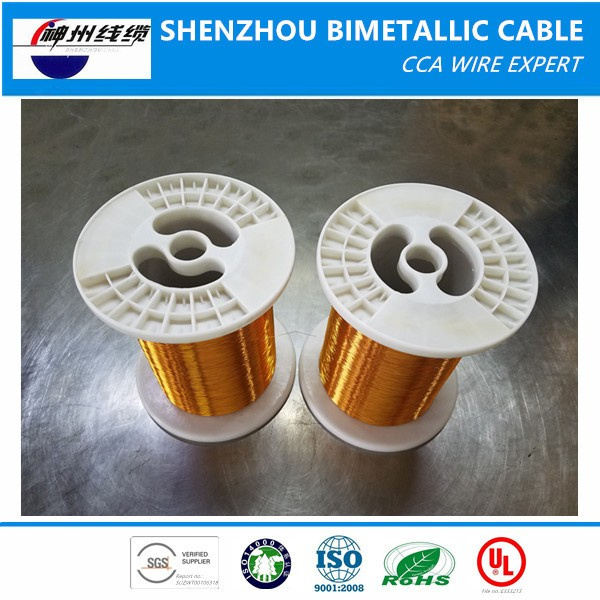

Product Pictures:
Company Information:
Suzhou Wujiang Shenzhou Bimetallic Cable Co., Ltd. parent company is located in Qidu Town,which is well known as the cable capital in China. Our company was set up in 2005, and now is the largest enameled copper clad aluminum wire production enterprise. The main products are enameled copper clad aluminum wire, enameled aluminum wire and copper clad aluminum wire. Enameled wire specifications include polyurethane (QA/UEW), (130,155,180) polyester QZ/PEW, class 180 polyester imide QZY/EIW, 200 grade polyamide-imide compound polyester imide QZY/XY/EI/AIW. At present, we are supplying size from 0.100 mm - 4.60 mm. Products are widely used in various types of electronics, (air conditioners, refrigerators, washing machines, electric tools) motor, large, medium and small transformer, electromagnetic induction coil, the motor of the car, charger, ballast, relays, etc. products. Strict quality control and long-term stable supply of products is the cornerstone of SHENZHOU's long-term stable development.
Certificate:
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
Enamelled types : UEW,PEW,EIW,EI/AIW,AIW
Certification:UL Approved, iso9001, iso14001,RoHS,REACH
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 15 inspection personnel. Quality inspection team including incoming material, process and finished product inspection
4. Q: How large the scale of your company?
A: Our Company covers almost 40,000 square meters, Including 8 standard factory buildings.
5. Q: What's the main market of your company?
A: We have customers all over the world.
6. Q: What's your company 's product scope?
A: We have many kinds of products ,such as enameling machine, copper clad aluminum wire, enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire, copper rod, power wire and cable, communication cables.
7. Q: What's your company 's product scope?
A: We have many kinds of products ,such as enameling machine, copper clad aluminum wire, enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire, copper rod, power wire and cable, communication cables.
8. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Wujiang Dis. SuzhouCity, Jiangsu Province, China,
Near Shanghai Hongqiao Airport(90kms). We offer transportation service
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
