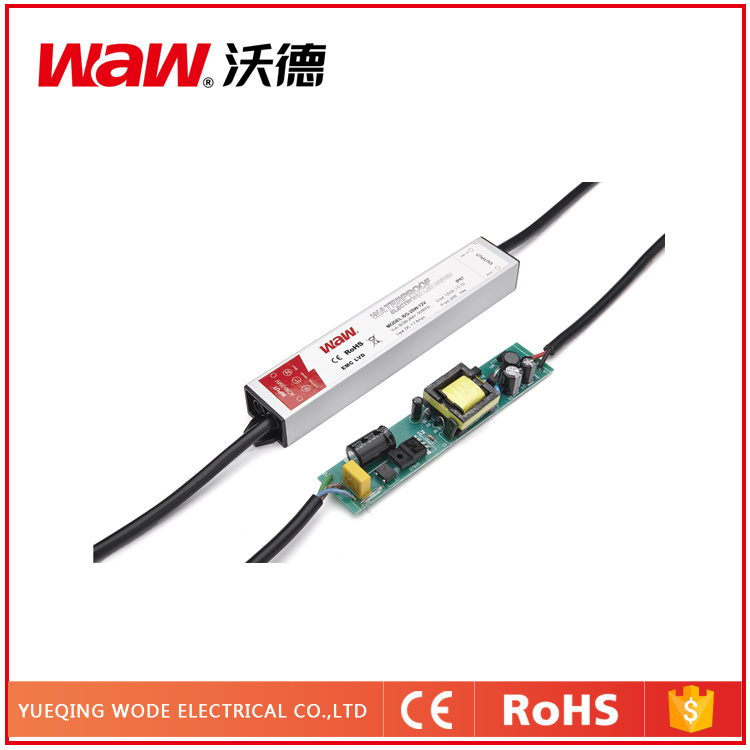

Bg-20-12 1.67A 12V 20W Waterproof CCTV Camera Power Supply

Name: Bg-20-12 1.67A 12V 20W Waterproof CCTV Camera Power Supply
Brand: all-electronics-online.com
SKU: 821061985
Availability: InStock
Rating: 4.9 (88 reviews)

Price:	US $ 2-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BG20W-12V
Output Type:	Single
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Warranty:	Lifetime Warranty
Input Voltage:	85~265VAC
Brand:	Waw

Product Description

Product Description
20w 12v 1.67a outdoor LED transformer with CE ROHS(BG-20-12)

Features

1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

Specifications

Model	BG-20-12	BG-20-24
DC output voltage	12V	24V
Rated output current	1.67A	0.83A
Wave and noise	100mVp-p	100mVp-p
Intet stability	±0.5%	±0.5%
Load stability	±1%	±0.5%
Efficiency	81%	83%
AC voltage range	90~264VAC 47~63Hz; 250~370VDC
AC inrush current	Cold-start current 30A/250V
Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over voltage	121%~142% Rated output voltage
Short circuit	Hiccup mode, recovers automatically after fault condition is removed
Setup rise hold up time	100ms 60ms/230VAC at full load
Withstand voltage	Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10~+50°C
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	182×29×20mm 100PCS/CARTON
Weight	0.22KG
CE EMC Authenticate	EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 proved
EMC CE LVD Authenticate	EN61347-1:2008T A1:2001 EN61347-2-13:2006 EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate	EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
