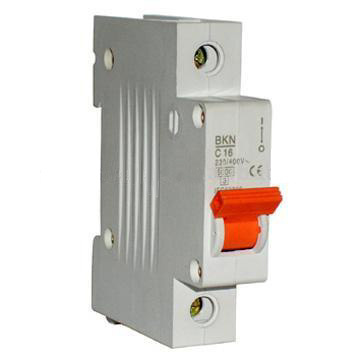

BKN Circuit Breaker 1p 32A MCB

Name: BKN Circuit Breaker 1p 32A MCB
Brand: all-electronics-online.com
SKU: 811895445
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 0.65/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description
Application
BKN series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 230V or two, three, four poles 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Number of Poles	1P, 2P, 3P, 4P
Rated Current (A)	2, 4, 6, 10, 16, 20, 25, 32, 40	50, 63
Breaking Capacity (kA)	6000	4500
Rated Voltage (V)	230/400
Rated Frequency	50/60Hz
Endurance	≥4000
Circumstance Temperature	-5ºC~+40ºC
Electrical Life	no less than 6000 operations
Mechanical Life	(O-C) no less than 20000 operations
Protection Degree	IP20

Prod Model:	BKN
BKN Mini Circuit Breaker:	1,2,3,4 P
6ka,4.5ka:	3 Years Warranty Time
OEM & ODM Service:	Ce ,CQC Certificate
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
