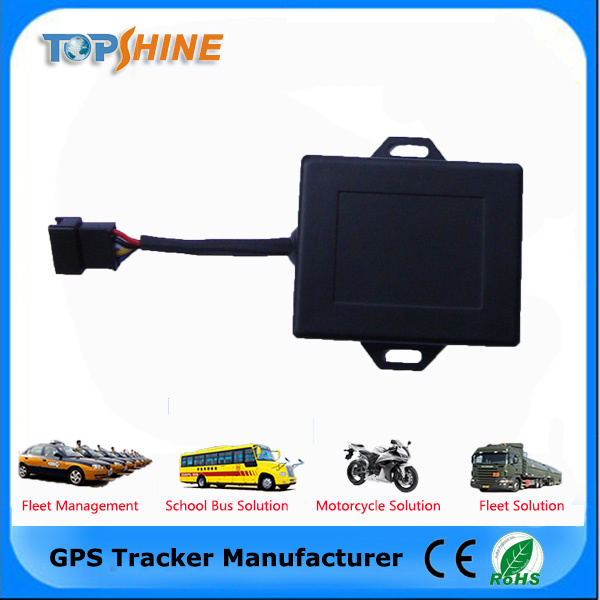

Bluetooth smart car alarm anti theft Mini internal GPS tracker(2 years warranty, Free Tracking Platfrom (PC base & Android), CE & RoHS & SGS certification)
MT08B = GPS tracker + anti theft + smart car alarm + driver ID identify + two way location + anti GSM signal jammingMT08B is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, it is highly cost-effective GPS tracking device which can achieve fully automatic anti robbery/ anti-theft alarm, driver ID identify, two way location and anti GSM signal jamming functions.How is work?1) Don't need to install any APP on phone.
2) After setting the authorized Bluetooth, if the Bluetooth of phone from driver is paired by the GPS tracker, then the vehicle is in disarmed, and you can start the engine and open the car door normally.

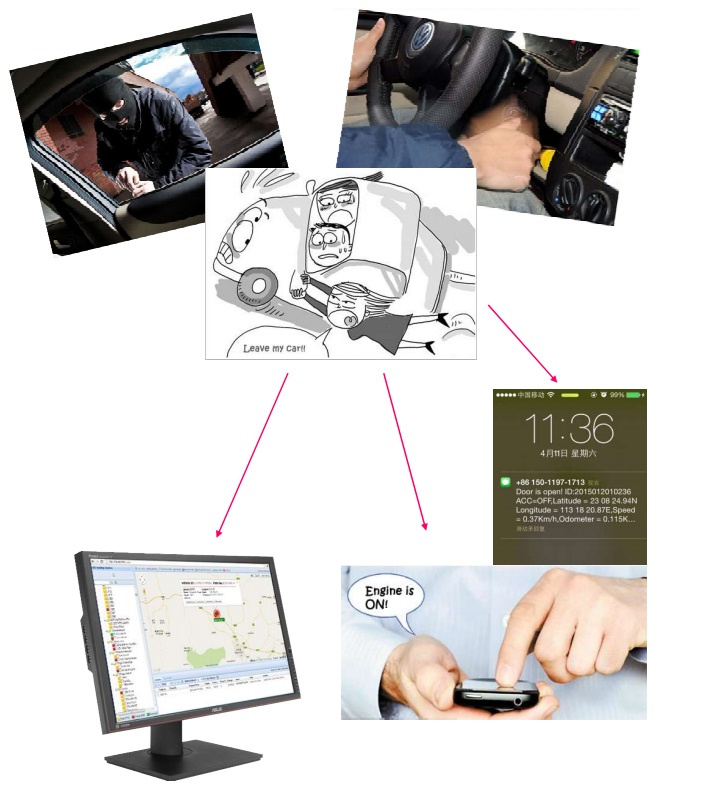

3) If without paring the Bluetooth, the vehicle is in armed status, if someone illegally opens the car door, illegally start the ignition or illegally move the vehicle, it will trigger the device to send alarm message to preset phone number and call the preset phone number for notification.
4) When leaving the car about 10 meters, the tracking system will armed automatically
5) When you close to the car around 5 meters and your phone is recognized, the system will be disarmed, it won't send out alert;
6) It support cut off the power of fuel pump automatically when illegal start the car, so that the theft can't drive the vehicle run away.
7) As driver ID identification - the GPS data will send the phone ID ( driver ID ) to server, so management will know whose drive which vehicle.
Applications- Vehicle real time tracking
- Smart car alarm system
- Motorcycle/ Car security/ Anti-hijack- Fleet management Features of GPS tracker MT08B
1. Arm/ disarm automaticaly without carry any remoter or ID card.
2. Driver ID identify, illegale driver cant drive the vehicle, manager can see who driving the vehicle by tracking platform.
3. Anti GSM signal jamming. When detect there have jamming device, it wont allow to drive the vehicle.
4. Two way location (Track the vehicle even when it drive into tunnel or parking underground)
5. In the arm status, if illegal people open the door/ start ignition / move the vehicle, it will trigger alarm.
6. Superior cost-effective product and easy installation.
7. Remote cut off engine to stop the vehicle in the safe confition.(Optional)
8. 100% industrial grade components, not MTK solution hardware made.
9. Tracking by SMS/GPRS (TCP/UDP)
10. Tracking by time/distance interval
11. Compact size with waterproof design

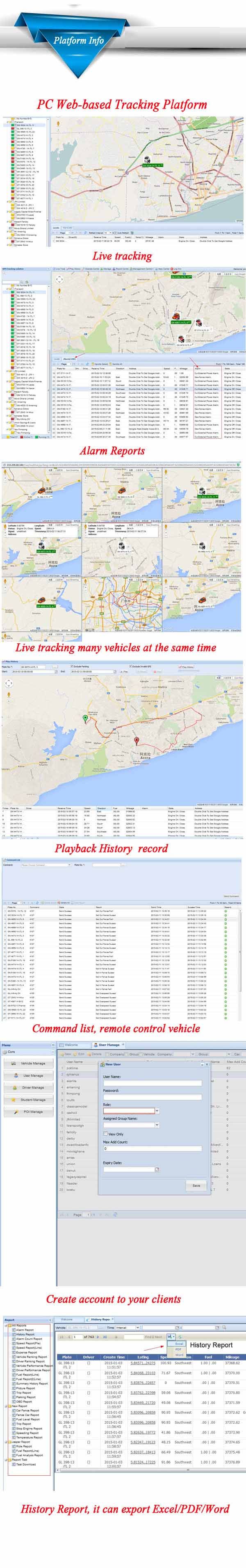

12. Real time tracking via the web-platform
13. Get position location via call/SMS
14. Get location physical name via SMS & from the web-platform
15. Google Map link for location via SMS, it shows your location on map via mobile phone.
16. Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system.
17. Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
Alerts and some optional functions
* Over speed alert
* Geo-fence alert
* Movement alert
* Power failure/low power alert
* Doors detection (optional)
* Fuel monitoring (optional)
* Engine on/off detection (optional)
* SOS Panic button, SOS alert (optional)
* Accident alarm (need crash sensor support) (optional)
* Wiretapping/remote listening (optional)
* Two way communication (speaker and microphone) (optional)
Technical Specifications of MT08B | Items | Specifications |
| Dimension | 62*50*22mm |
| Weight | 65g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up battery | 350mAh |
| Operating Temperature | -20 degree ~ 75 degree |
| Humidity | 5%~95% |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | U-blox7 |
| GPS Sensitivity | -165dBm |
| Positioning accuracy | 10 meters, 2D RMS |
| Interface | 2 Input and 1 Output |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS(optional) and 1 power on/off |
| Sensor | Motion sensor |
| Work Time | 18 hours in power-saving mode and 4 hours in normal mode |

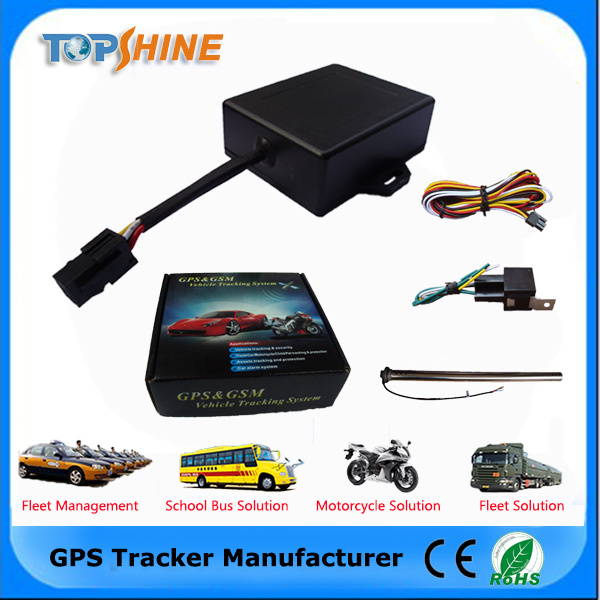

Standard PackingMain unit 1 piece
5pin wiring 1 piece
Optional AccessoriesFuel sensor
12V / 24V Relay
SOS button
Microphone
Speaker | Packing Measures |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.28 | 1 set |
| Carton | 470x340x310 | 9 | 30 sets |
Welcome to access Topshine GPRS01 trackin software
PC: www.track-car.com
Mobile Phone: www.track-car.com/M
User name: hongkong
Password: 123
TOPSHINE advantage * Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No any monthly or yearly charge.
* 2 years warranty
* All of products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform or hardware.
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.Payment & shipment Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
FAQ
Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.
Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.
Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,0.14,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage
Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
