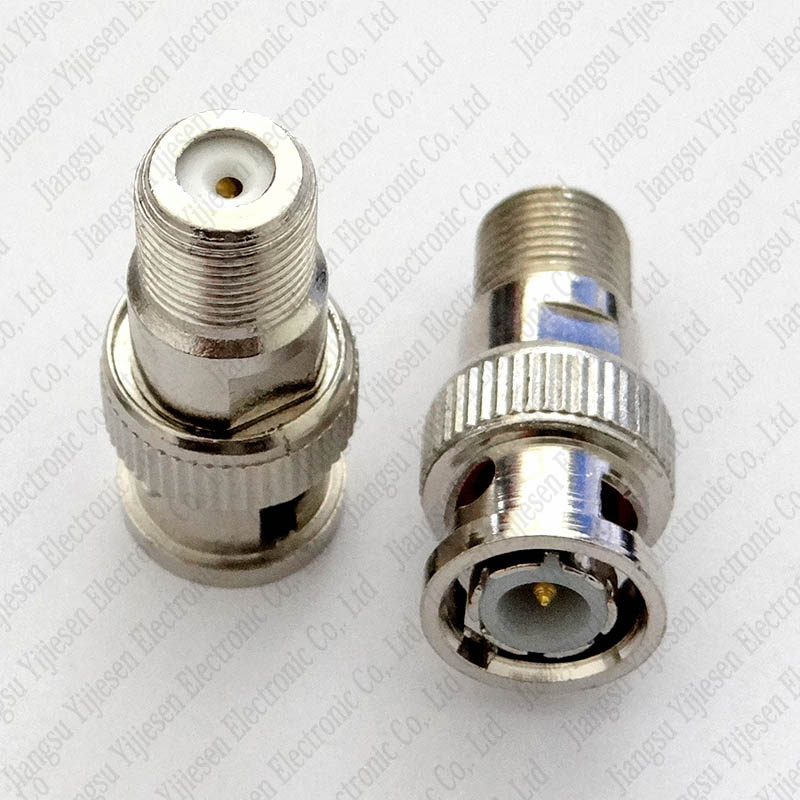

BNC Male to F Female Connector CCTV Camera RF Adapter

Name: BNC Male to F Female Connector CCTV Camera RF Adapter
Brand: all-electronics-online.com
SKU: 824405095
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 0.15-0.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

BNC male to f female connector CCTV camera RF adapter:

BNC Type is one kind of RF connectors using a bayonet type coupling mechanism. Characteristic impedance has types: 50Ω and 75Ω.They can be quick connect/disconnect, reliable lock etc. They are widely used in connection with the RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.

Temperature Range	-55~+155ºC(PE Cable -40~+85ºC)
Vibration	100m/S²(10~500Hz)10g
Impedance	50Ω,75Ω
Frequency Range	DC~1 GHz
Working Voltage	500V r.m.s at sea level
Withstand Voltage	1500V r.m.s at sea level
Contact Resistant
Center Contact	≤1.5mΩ
Outer Contact	≤1mΩ
Insulation Resistance	≥5000MΩ
Center Conductor Retention Force	≥0.57N
Voltage Standing Wave Radio
Straight	≤1.20
Right Angle	≤1.30
Durability(Mating)	≥500(cycles)

Contact Information:

Name	Lucy Yang
Tel	86-051487268115;86-0514-87268865
Fax	86-051487268115

Prod Model:	RG6
Materials:	Brass
Plating:	Nickel
Impedance:	75ohm
Frequency Range:	DC~1GHz
Temperature Range:	-40~+60
Color:	Silvery
Type:	Generally Coaxial Connector
Brand:	Yjs
Coupling Mechanism:	Crimp

Our company supplies different kinds of connectors. We stick to the principle of "quality first, service first, continuous improvement and innovation to satisfy the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality and reasonable price.
