Box Type Metalized Polypropylene Capacitor Cbb 61

Name: Box Type Metalized Polypropylene Capacitor Cbb 61
Brand: all-electronics-online.com
SKU: 810627965
Availability: InStock
Rating: 4.4 (78 reviews)

Price:	US $ 0.1-2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	cbb 61
Capacitance Range:	1-25UF
Rated Volatage:	110-500VAC
Color:	Black ,Red ,White Color Case
Terminal:	Wire Leading ,or Tap
Service:	OEM and ODM
Certificate:	UL ,Ce
Frequency:	50Hz/60Hz
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

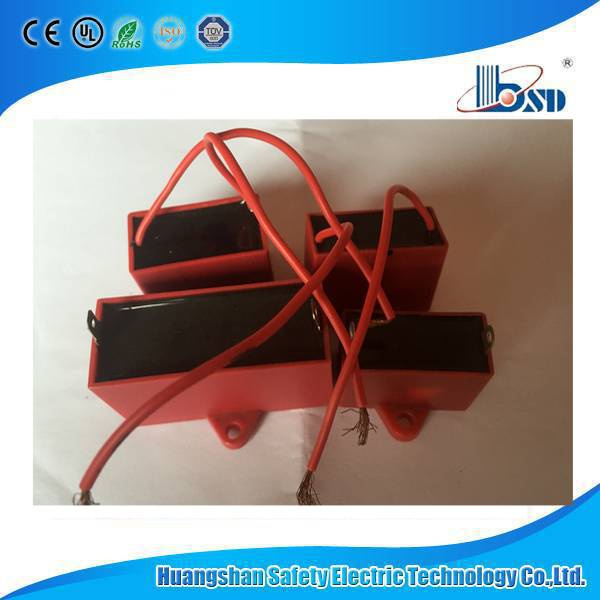

1.CBB61 TYPE Capacitor generally use the quadrate anti-flaming plastic shell, epoxy resin packing.
2.This type is of little shape and light weight, little wastage, high insulation resistance, excellent natural repair, good stability, suitable for alternating current circuit.
3.This type capacitor is suitable used in the frequency of 50Hz-60Hz, voltage from 250V -500V single phase A. C. Motors, fan, water pump etc. For starting and running.
4.1-25UF 110-500VAC,50/60HZ
5.UL ,CE ,ISO9001,IEC60252

reference standards	GB/T 366.7.1(IEC60252-1)
Climatic category	40/70/21 40/85/21
class of operation	Class B(10000h) class C(3000h)
class of safety protection	P0
voltage range	200-500VAC
capacitance range	1-35Uuf
capacitance tolerance	+-5%
Dissipation factor	20*10-4 (100HZ,20OC )
Test voltage terminal to terminal UTT	2Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC -50Hz for 60seconds
Insulation Resistance	>=3000M uf(100Hz 20 oC,1min)

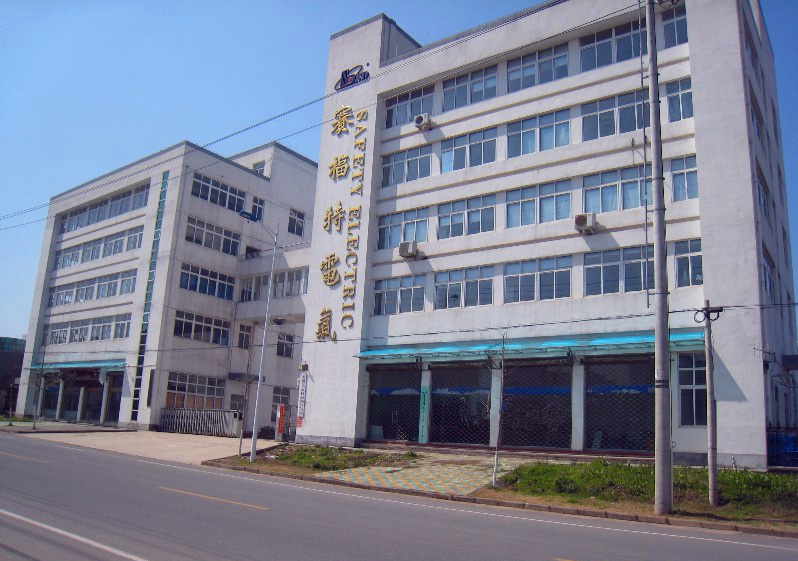

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
