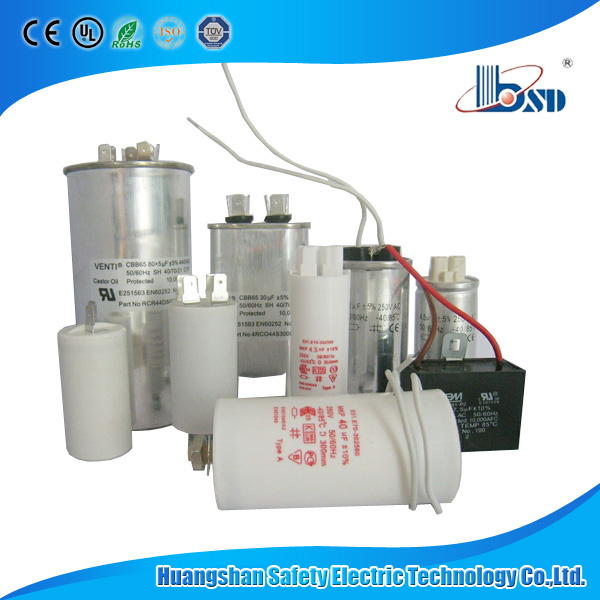

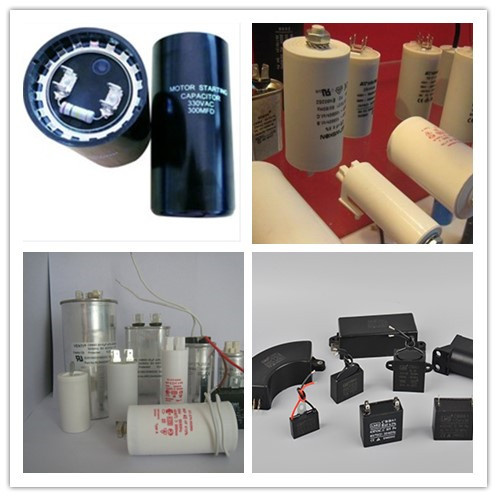

Motor run capacitor series (CBB60)
1 Main Feature
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
2 Applications
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
3 Manufacturing
Self-healing metallized polypropylene film capacitors
Non inductive winding.
Wound capacitor elements fully immersed into resin.
Self-extinguishing plastic case.
Execulions:
Flat bottom-metal fixing stud M8×1 2
faston terminals 0.8×6.35 simple or double
standard distance p=13.2mm±0.5
unipolar cable-bipolar cable
discharge resistance-Dlaslic cover
4 Techinnical Parameters

Capacitance range	1-120μf
Rated voltage Un	250v.ac/400/450V.ac
Rated frequency	50Hz;60Hz
Capacitance tolerance	±5%;±10%
Climatic category	-25+70ºC
Dissipation factor(at 50Hz-Hz and 20ºC)	≤0.002(100Hz,20ºC)
Test voltage between terminals	2×Un for 3s
Test voltage between terminals and case	2×Un+1000VDC FOR 2s
Reference standard	EN 60252-1:2001;IEC252

Capacitance and size :

Capacitance(μf)	250 V. ac-450 V. ac ΦD×H(mm)
3μf	25×57
3.5μf	25×57
4μf	25×57
4.5μf	32×55
5μf	32×55
6μf	32×55
8μf	32×55
10μf	36×58
12μf	36×70
15μf	40×70
16μf	40×70
18μf	40×70
20μf	40×70
21μf	40×70
22μf	40×70
25μf	45×70
30μf	45× 92
31.5μf	45× 92
35μf	45× 92
36μf	45× 92
40μf	45× 92
45μf	50×92
47μf	50×92
50μf	50×92
55μf	50×117
60μf	50×117
65μf	50×117
70μf	55×120
75μf	55×120
80μf	60×120
85μf	60×120
90μf	60×120
95μf	60×120
100μf	60×120

Prod Model:	CBB60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	UL ,CE ,RoHS ,ISO9001 ,IEC60252
Life Time:	30000hours and 10000 Hours
Bady Material:	Plastic Can or Al Can
Termianl:	Cable Wire Leading and Fasten-on Terminals ,
Service:	OEM and ODM Service
Warranty Time:	3 Years
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-120UF
