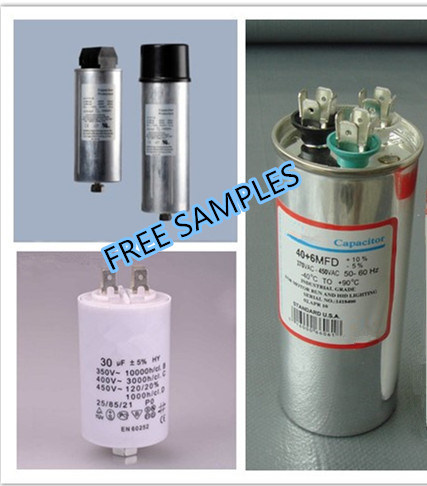

Cbb65 Air Conditioner Capacitor with Wiedly Used

Name: Cbb65 Air Conditioner Capacitor with Wiedly Used
Brand: all-electronics-online.com
SKU: 838103335
Availability: InStock
Rating: 4.6 (39 reviews)

Price:	US $ 0.55-3.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

CBB65 series Capacitor for air conditioner With UL ,CE ,ROHS ,ISO9001-2008 ,IEC60252 certificate

1 Main Feature:
Low dissipation factor small inherent temperature rise, excellent self-healing stability safety and high voltage withstand etc.

2 Applications:
Running and starting in household electric appliances air conditioner,Refrigerator which demand 50/60Hz AC power supply Havesafe protection construction.

3 Specifications:

Climatic Category	Rate voltage	Testing voltage T-T	Testing voltage T-C	Capacitance Tolerance	Dissipation Factor
40/70/21 40/85/21 40/90/21 40/105/21	110V.AC-600V.AC	1.5Un/5S 1.75Un/5S 2.0Un/5S	2000V.AC/5S	±3% ±5% ±10%	≤0.002 (50Hz/60Hz)

capacitance Range	Dimension	Reference Standard	Certifilcation	class of Operation	Safety grade
3μf ~ 120μf	D:Φ42 ~ Φ60 W:51.5(71) H:60 ~ 240 T:31.5(45)	UL810 IEC252 GB3667 EN60252	UL CE	A 30000h B 30000h C 30000h	P2

4 Outline size

Capacitance	OVAL SHAPE DIMENSION in mm
Capacitance	WIDT(W1)	DEPTH(W2)	HEIGHT(L)
2MFD	52	32	40
3MFD	52	32	40
4MFD	52	32	60
5MFD	52	32	60
6MFD	52	32	60
7.5MFD	52	32	60
10MFD	52	32	80
12.5MFD	52	32	80
15MFD	52	32	80
17.5MFD	71	45	80
20MFD	71	45	80
25MFD	71	45	80
30MFD	71	45	90
35MFD	71	45	90
40MFD	71	45	90
45MFD	71	45	90
50MFD	71	45	90
55MFD	71	45	110
60MFD	71	45	110

Capacitance	ROUND SHAPE DIMENSION in mm
Capacitance	DIA.(d)	HEIGHT(L)
5MFD	42	60
6MFD	42	60
7.5MFD	42	60
10MFD	42	70
12.5MFD	42	70
15MFD	42	80
17.5MFD	42	80
20MFD	45	80
25MFD	45	90
30MFD	50	100
35MFD	50	100
40MFD	50	110
45MFD	50	110
50MFD	50	110
55MFD	55	130
60MFD	55	130
70MFD	60	120
80MFD	60	120

Prod Model:	CBB65 Series
Voltage:	250V,370V,440V,450V
Safety Grade:	P2
Type:	Polypropylene Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	1-100UF

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
