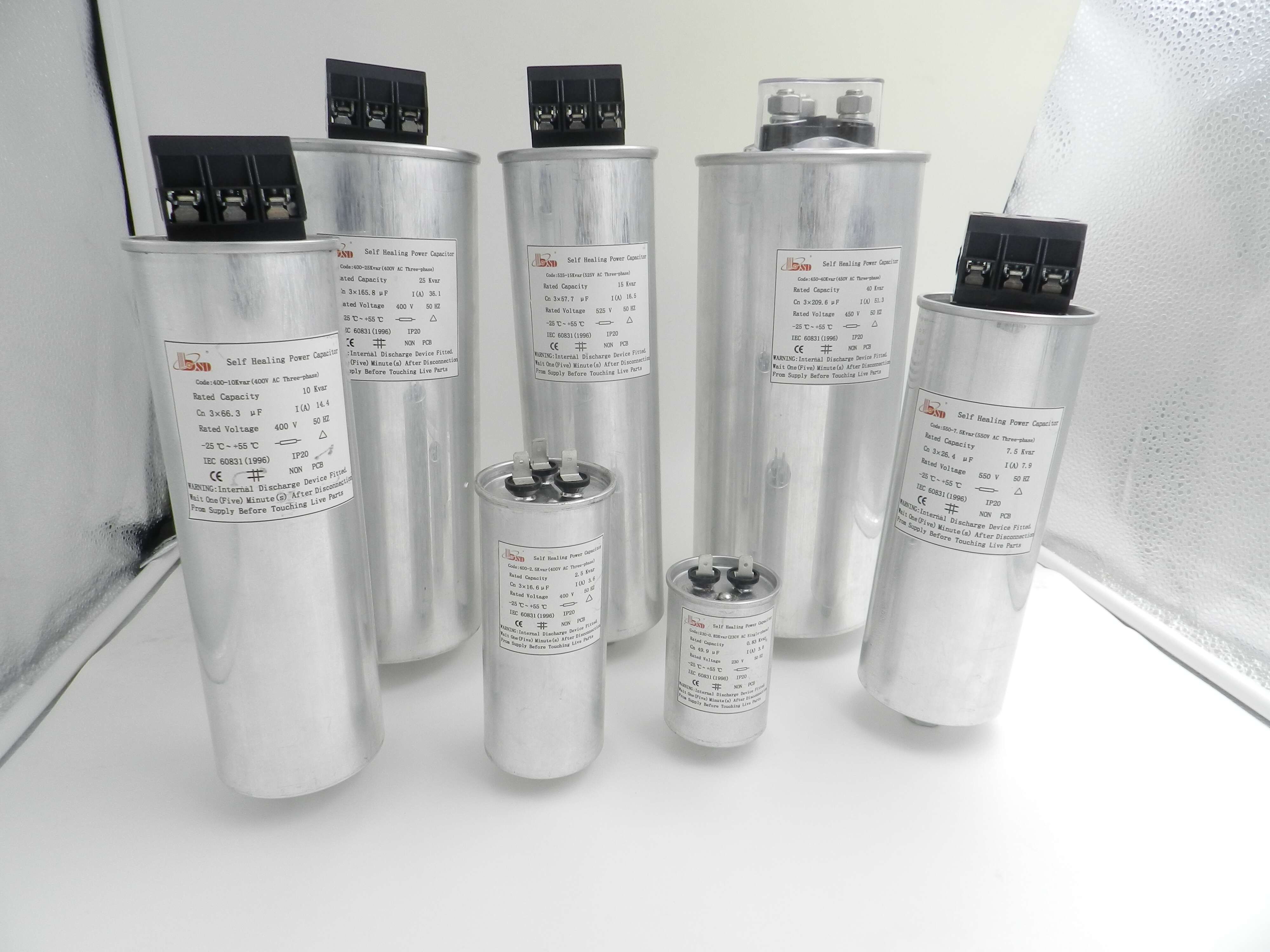

Power Capacitor, 1-60kvar at Three Years Warranty Time

Name: Power Capacitor, 1-60kvar at Three Years Warranty Time
Brand: all-electronics-online.com
SKU: 823841865
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	US $ 7.6-23.4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BKMJ
Rated Volatage:	220VAC ,370VAC ,400VAC ,440VAC ,525VAC ,690VAC
Phase:	Three Phase or Single Phase
Kvar:	1-60kvar
Frequency:	50Hz/60Hz
Features:	Small Size ,Low Loss
Warranty Time:	24 Months
Certificate:	Ce ,ISO9001,RoHS ,IEC60831
Service:	OEM and ODM
Advantage:	Dry Type Non-Pollution
Type:	Polypropylene Capacitor
Application:	Power
Package Type:	Surface Mount
Capacitance:	1-60kvar
Electrolyte:	Polypropylene

Product Description

BKMJ series power capacitor is with explode-proof! The device is mainly suitable for low voltage power network to improve power factor,reduce reactive loss and better the voltage quality.

Series	Power Factor Capacitor
Rated Voltage Range	From 220-1000 VAC
Connection	3 phase (1 phase on request)
Frequency	50/60 Hz.
PowerRange	1-30 Kvar
Dielectric	Metalized polyprolilene film
Discharge Resistors	Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor
Tolerance	±5%
Maximum Ambient Temperature	-25 ºC--50ºC (Other temperature range on request)
	Average temperature within 24 hours below 50ºC&average
	temperature with a year below 30ºC
Max. Relative Humidity	≤90%
Max. Altitude	≤2000m (Other altitude on request
Over Voltage Tolerance	1.1 UN (8 hours max. in every 24 hours)
	1.15 UN (30 minutes in every 24 hours)
	1.2 UN (5 minutes in every 24 hours)
	1.3 UN (1 minutes in every 24 hours)
Over Current Tolerance	30% permanently
Max. Surge Current	200 times of rated current
Dielectric Loss	≤0.2 Watt / Kvar
Voltage Test	Between terminals: 2.15 Un for 10 seconds.
Voltage Test	Between terminals to container: 3000VAC for 10 seconds
Safety System	Self protection device
Case Material	Rust-proof tinplate
Execution	Indoor, minimum distance between units : 50mm
Standard	IEC60831 / GBT12747

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
