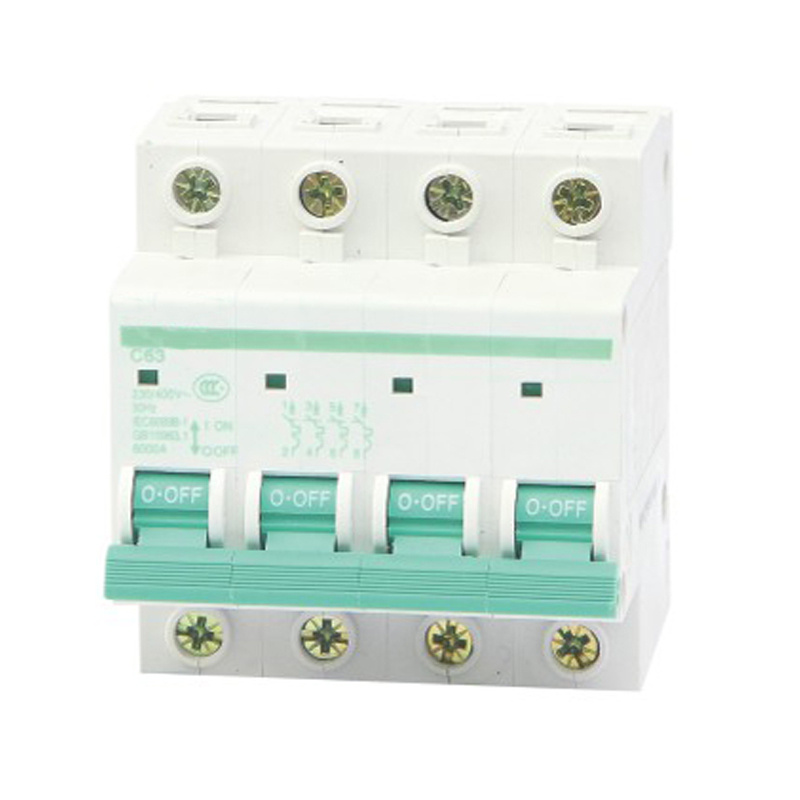

Br-63 Mini Circuit Breaker

Name: Br-63 Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 818586885
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	US $ 0.6-1/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Application:
BR-63 series Miniature Circuit Breaker is nice in appearance, advanced and reasonable in structure, sound in feature,high analytical skills and high in breaking capacity. Shell and other components are used with impact resistance, high flame retardant material composition.Installed with standard DIN rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 400V or below, and rated current to 3A - 63A as protection against overload and short-circuit. It can be used as infrequent on-and-off operation and changeover.It's primary used in office building,housing,as well as similar building lighting, electric distribution.The MCB complies with standard of GB10963 and IEC60898.

Technial parameters:

Rated operating voltage(V)	Poles number	Rated current(A)	Rated short-circuit analysis capability
Rated operating voltage(V)	Poles number	Rated current(A)	Test line expected current	Power factor
230	1,2	3,6,10,20	4000	0.65~0.70
230/400	1,2	25,32,40	4000	0.65~0.70
400	2,3,4	50,63	4000	0.65~0.70
230	1,2		4000	0.75~0.8
230/400	1,2		4000	0.75~0.8
400	2,3,4		4000	0.75~0.8

Note:
Mechanical life:20,000times(break-connect)
Electrical applicance life:4000times
Moisture&heat resistance:temperature 55ºC,relative humidity 95%

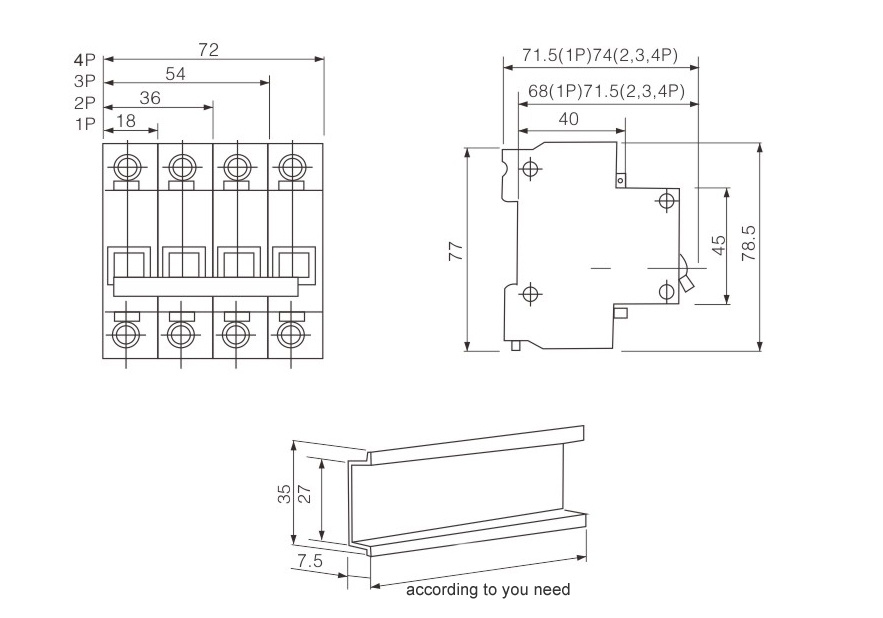

Outline and installation size graphic:

Prod Model:	BR-63
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CCC
Operation:	Electric Type or Manual Type
Poles Number:	1,2 or 3
