Permanent Magnetic Outdoor High Voltage Vacuum Circuit Breaker

Name: Permanent Magnetic Outdoor High Voltage Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 819394165
Availability: InStock
Rating: 5 (88 reviews)

Price:	US $ 700-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

ZW10-12M series of high-voltage vacuum circuit breaker is a three-phase AC outdoor high voltage switchgear, mainly for 12kv, rated frequency 50Hz power distribution system, especially for outdoor overhead lines, divided load current, overload protection, short circuit current
protection. The circuit breaker can be equipped with disconnector, the circuit breaker is installed on the side of the circuit breaker body, through the angle steel chassis combine circuit breaker together, the drive shaft with the interlock between the device and circuit breaker which can prevent misoperation.
The circuit breaker can be equipped with a compound controller type intelligent circuit breaker. And PT, coincidence controller with current flow control, over current protection and short circuit speed three sections of composite protection and 1 to 3 times reclosing, small current grounding protection, limited remote control, and also in the rod under the wireless remote control and other Function, and the controller parameters can be continuously set. It is the ideal choice for rural power grid substation, station outside point switch and simple metering switch.

Main technical parameters:

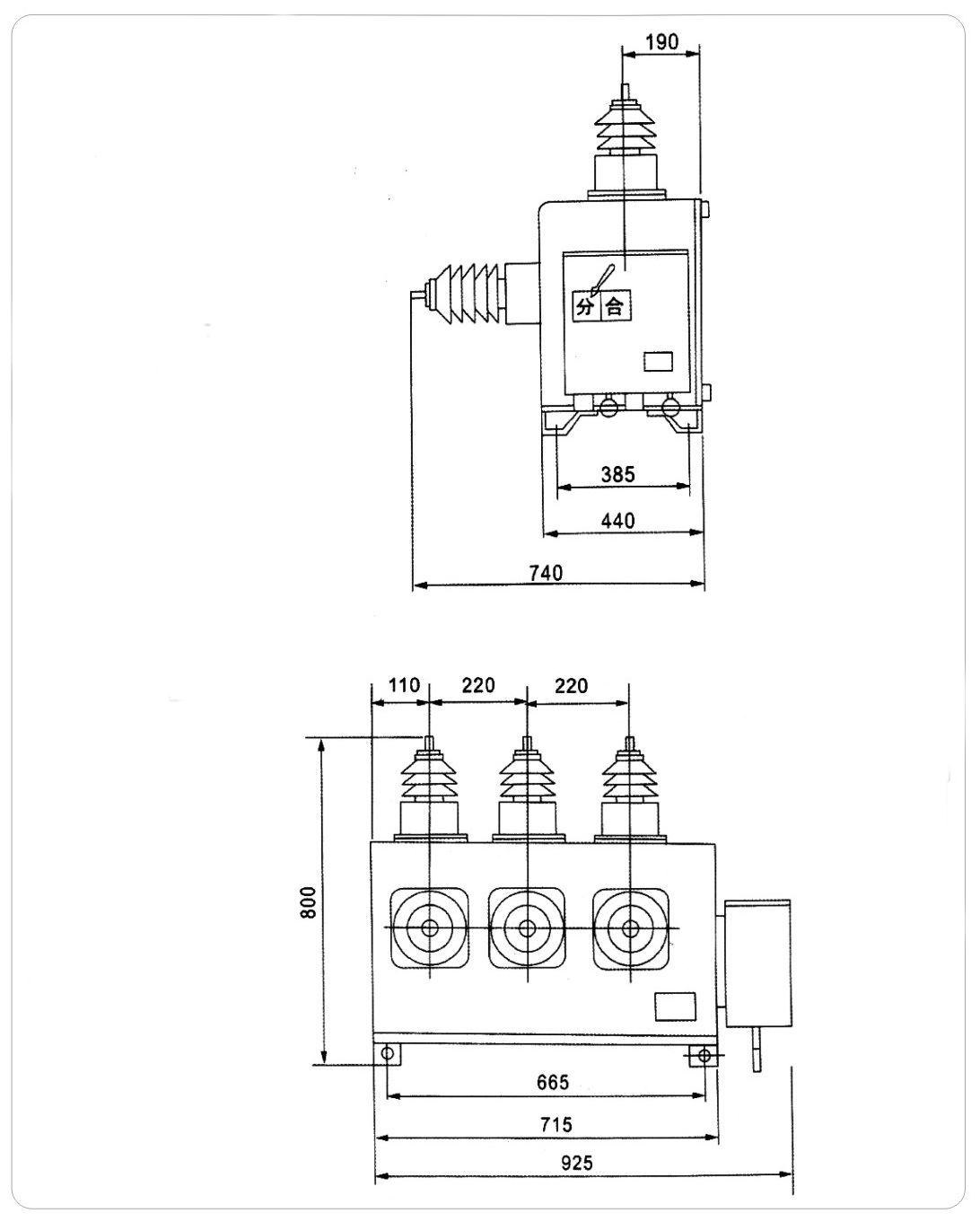

Outline and drawings:

Prod Model:	ZW10-12M
Breaking Capacity:	High Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Poles Number:	3
Certification:	ISO9001-2000
Operation:	Permanent Magnetic Operating Mechanism

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
