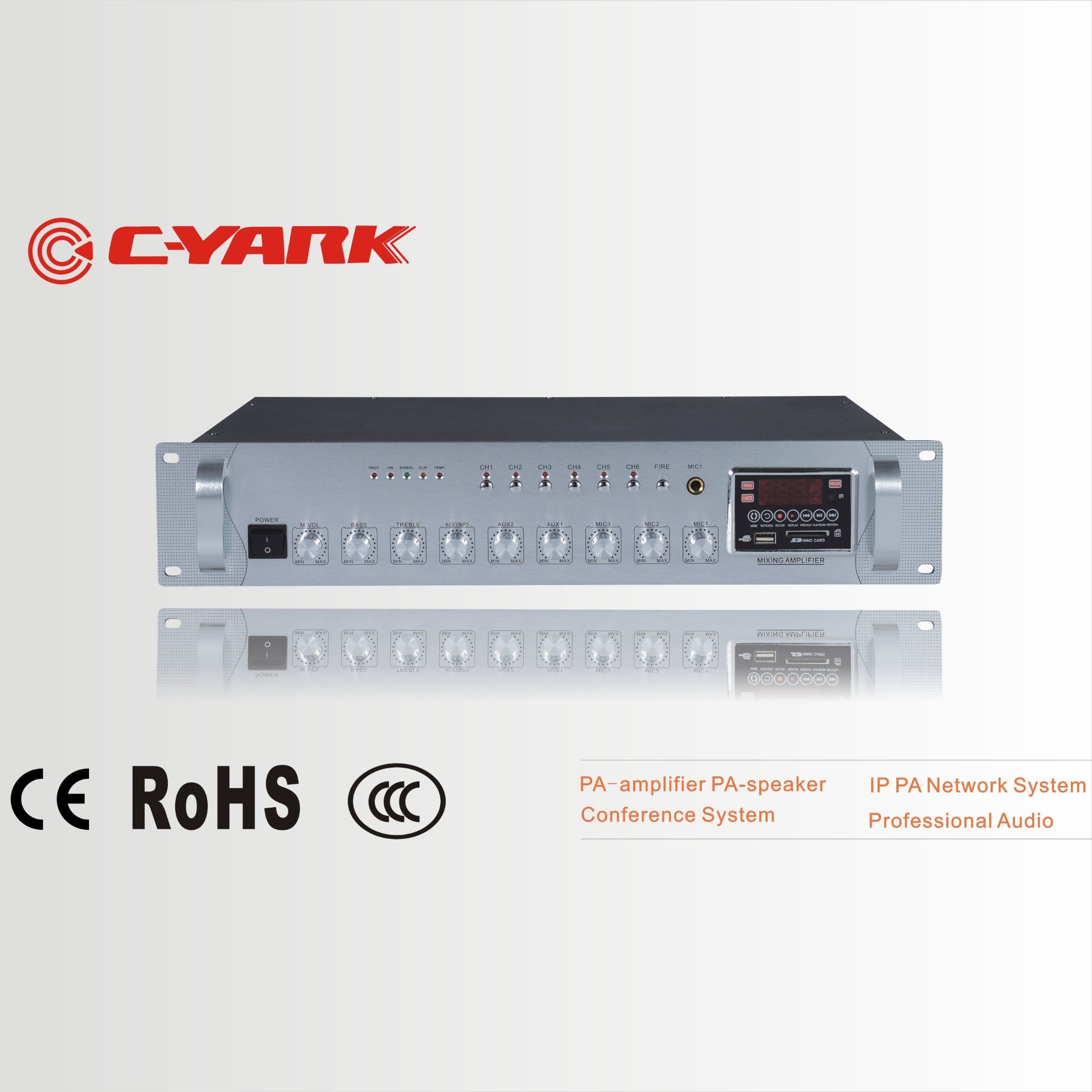

C-Yark High Standard Audio Amplifier For PA System
Specifications
| Model | CA-606BL | CA-1006BL | CA-1506BL | CA-2006BL | CA-2506BL | CA-3506BL | CA-5006BL |
| Rated Power | 60W | 100W | 150W | 200W | 250W | 350W | 500W |
| Output model | 70V 100V 4-16 |
| Input Sensitivity | 500mv |
| S/n Radio | >85db |
| Frequency Response | 80Hz~~15KHz±3db |
| Power | AC 220V~~240V/50Hz~60Hz |
| Dimension(mm) | 60-250W:485*370*90mm; 350W(Include 350W): 485*390*90mm |

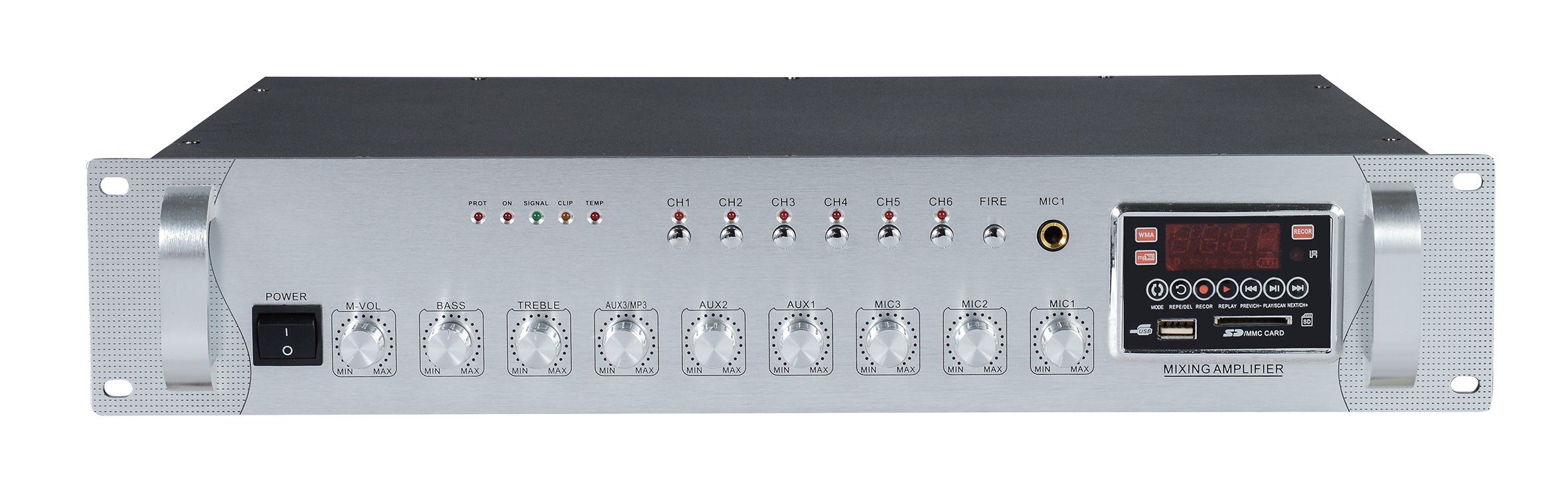

Descriptions| 2U rack mount design with high quality aluminium alloy panel. |
| Including 6 buttons to control ON or OFF of each zone. |
| Unique referred Bluetooth name for easy recognition when there are many Choices of Bluetooth. |
| Powerful self developed APP allow you to choose all your company's Cloud products. |
| It can connect to all smart phones no matter Android system or IOS system. |
| The digital module includes USB port and SD card slot |
Bluetooth Control System:
1).Installing the APP by scanning our unique QR code;
2).A key source switch trigger/ The device of audio source selection/Audio input selection/MIC input selection/FM radio, recording and playback selection/Mobile phone internal music player selection
3).File format: MP1/MP2/MP3/WMA/WAV/APE/FLAC
4).File system types: FAT12/FAT16/FAT32, each medium can feature a 32GB storage capacity
5).FM(Tuner) function
6).Can read the songs in USB by APP and choose directly on APP |
| Internal recording function and name automatically by system |
| Mute function: Input has priority level ( Front MIC 1 overrides all other inputs). |
| Applying newest separation circuit design for convenient repairing and maintenance. |
| Output module has a cover to prevent it from damaging by other machines. |
| Excellent device of radiator cooling fan that ensures working effectively. |

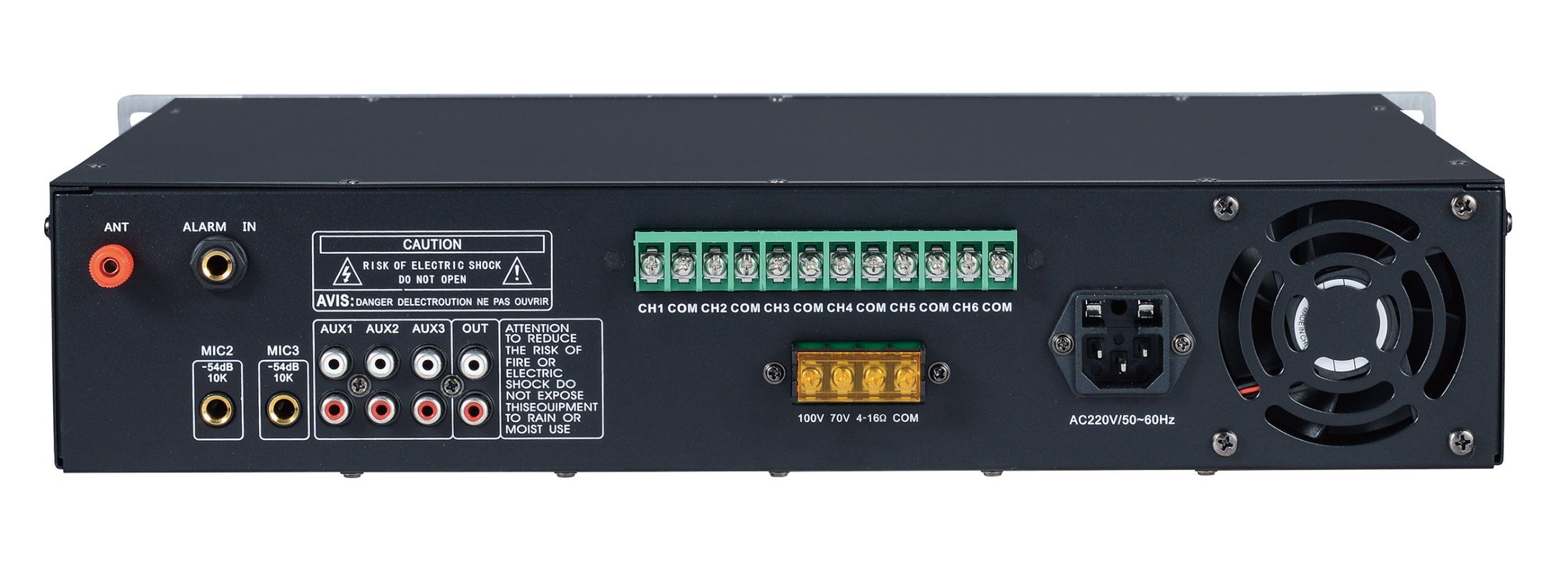

| The perforated back panel and a high-speed fan keep the amp cool. |
| It supports Bluetooth and is with LED to display status. |
| It has 3 AUX inputs, 3 MIC inputs, internal MP3 player and FM. |
| Master volume control are provide for overall tone control. |
| Treble and bass volume control. |
| Output module has a cover to prevent it from damaging by other machines. |
| Built-in MP3 and FM function to play background music directly and no need for another audio facility. |
| Mute function: Input has priority level (Front MIC1 overrides AUX). |
Features
| Power: 60W/100W/150W/200W/250W/350W/500W |
| Input: 3 AUX inputs, 3 MIC inputs(MIC 1 has Mute function for emergency input),1 MP3 input |
| Output: 1 AUX output |
| 5 point LED indicator |
| 6 Zones control and 1 Fire Alarm switch |
| Decoder module supports USB / SD Card / Bluetooth playback/ FM radio |
| Cloud player: USB/ SD Card/Mobile phone music file |
| Bluetooth Control System |
| File format: MP1/MP2/MP3/WMA/WAV/APE/FLAC |
| File system: Support FAT12/FAT16/FAT32 and 32G Large Capacity Storage Medium |
| Multi-player mode:repeat; play/pause; prev/next; vol+/vol-;EQU(equalizer) |
| Phone system: Apple(ISO)and Android System and other market mainstream phone system software |
| FM function |
| Master Volume control |
| Treble and bass control |
| Cooling fan and heat sink for over-heat protection |
| Power transistor: Samsung brand |
| Short-circuit/Over-load/Over heat protection |
| A single machine is a complete P.A System |
Our factory:
Our Company:
Our Canton Fair:
Our Certifications:
FAQ:1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 24 months. We will give 1% easy-worn accessories to you before shipment.
4. What's your payment terms?
We accept Western Union and Bank Transfer. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Our main customers are from Southeast Asia, South America, North America, Western Europe, Africa and other countries.
6. How many days do you need to prepare the goods?
We need about 30 working days for large order.
Our Mission:1.Your time is as valuable to us as it is to you.
2.We will treat you and your business with the utmost respect.
3.We will always keep you informed and answer any questions you may have.
4.We will immediately resolve any issues.
5.We will help you find the best product for your needs, even if we don't carry it.
6.Feel free to stop by call or email us anytime. we'd be delighted to hear from you.
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Our products cover power amplifier series, ceiling speaker, indoor and outdoor speaker series, MP3 public broadcasting system, conference system and IP system. All of Our products have received CCC, CE and ISO9001 approvals
C-yark owns best equipment, normative management, professional design and technology. With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market; So, OEM or ODM order is welcomed.
With 10-year effort, C-yark has achieved great successful in domestic and foreign market. Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects, such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade
We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
