Capacitance Proximity Switch Cm30

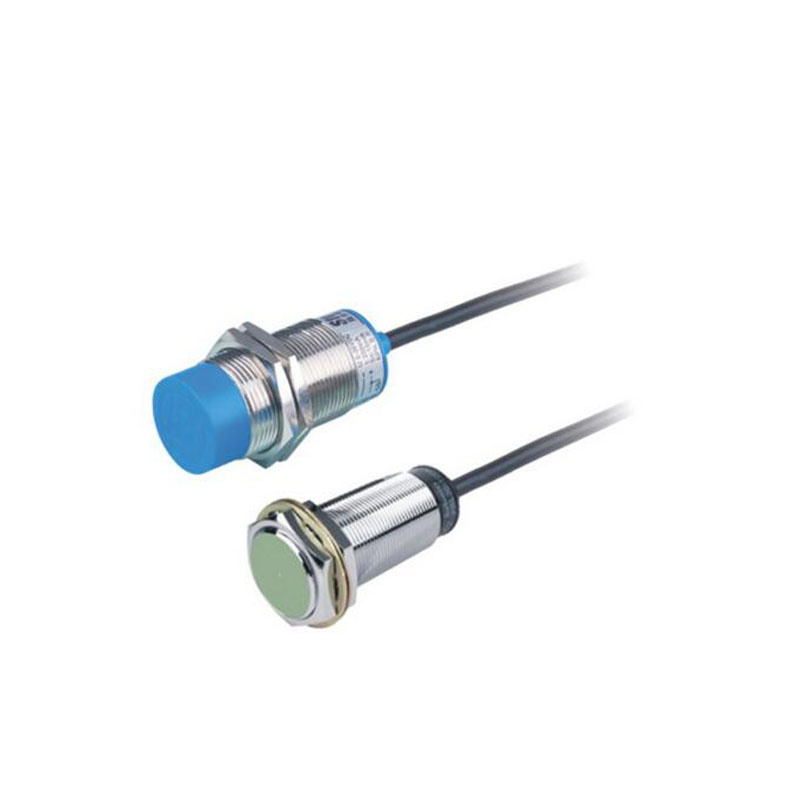

Name: Capacitance Proximity Switch Cm30
Brand: all-electronics-online.com
SKU: 834427145
Availability: InStock
Rating: 5 (95 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

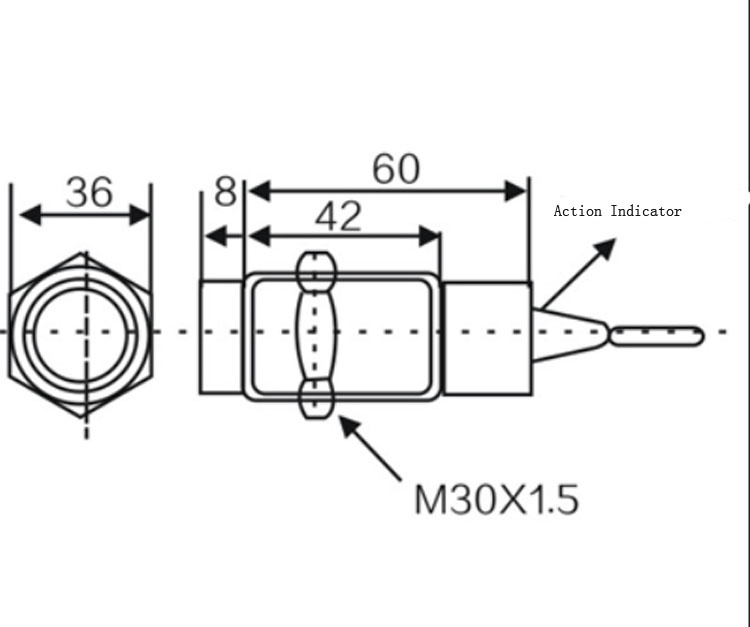

Prod Model:	CM30
Detection Distance:	0-10mm/0-15mm
Working Voltage:	DC6-36V/AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Flush:	Flush / Non-Flush
Type:	Proximty Switch
Production Process:	Flush or Non-Flush

Product Description

Proximity Sensors are available in models of capacitive sensor and inductive sensor using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Sensors are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model NO.	Detection distance	Working voltage	Output		Flush
Model NO.	Detection distance	Working voltage	Form	State	Flush
CM30-3010NA	0 -10mm	DC6-36V	NPN	NO	Flush
CM30-3010NB	0 -10mm	DC6-36V	NPN	NC	Flush
CM30-3010NC	0 -10mm	DC6-36V	NPN	NO+NC	Flush
CM30-3010PA	0 -10mm	DC6-36V	PNP	NO	Flush
CM30-3010PB	0 -10mm	DC6-36V	PNP	NC	Flush
CM30-3010PC	0 -10mm	DC6-36V	PNP	NO+NC	Flush
CM30 -2010A	0 -10mm	AC90-250V	SCR Control lable silicon	NO	Flush
CM30-2010B	0 -10mm	AC90-250V	SCR Control lable silicon	NC	Flush
CM30-3015NA	0 -15mm	DC6-36V	NPN	NO	Non-flush
CM30-3015NB	0 -15mm	DC6-36V	NPN	NC	Non-flush
CM30-3015NC	0 -15mm	DC6-36V	NPN	NO+NC	Non-flush
CM30-3015PA	0 -15mm	DC6-36V	PNP	NO	Non-flush
CM30-3015PB	0 -15mm	DC6-36V	PNP	NC	Non-flush
CM30-3015PC	0 -15mm	DC6-36V	PNP	NO+NC	Non-flush
CM30 -2015A	0 -15mm	AC90-250V	SCR Control lable silicon	NO	Non-flush
CM30-2015B	0 -15mm	AC90-250V	SCR Control lable silicon	NC	Non-flush

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40
