Capacitive GPS Fuel Sensor for Liquid Level Monitoring

Name: Capacitive GPS Fuel Sensor for Liquid Level Monitoring
Brand: all-electronics-online.com
SKU: 720593145
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 75-90/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

capacitive GPS Fuel Sensor for liquid level monitoring

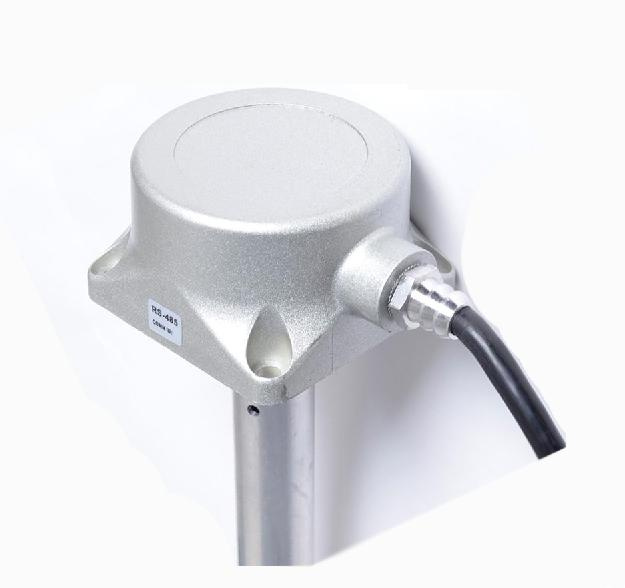

JT606X is a high precision fuel sensor for fuel consumption monitoring from Jointech.

It is a high accuracy fuel monitoring device. Which was been designed under Capactive principle, is used for fuel level monitoring in various solution. GPS Fuel Level Senser For Multi Tank, it is adjustable.

This solution provides high-precision measurement of fuel level in a fuel tank; Gives detailed informaiton about fuel tank refueling, draining, consumption; Prevents fraud or unauthorized use of fuel.

Any abnormal fuel level change, the alarm will be generated and the camera will be triggered to take pictures and upload, for you to be easily aware of it and take prompt action.

Fuel sensor JT606 has been widely applied to the remote fuel consumption monitoring and management of logistics fleet, genset, buses, coaches, construction machineries, etc.

Fuel sensor JT606 Features:

Resolution: <1mm, Accuracy: <0.5%
Cuttable on site to fit the tank height
Wide voltage input: 4-70V
Patented technology: Simple-installation flange
Multi-signal output: RS485/RS232/Voltage/Resistance/Current
On-site calibration and remote parameter configuration
Replaceable for the original fuel level sensor.

parameters:

Input:

Voltage: 4 – 70V

Consumption: 0.17W/5V, 0.24W/12V, 0.48W/24V

Output:

Current: 4 – 20mA

Voltage: 0 – 5V

Emulated resistive: 10 – 500Ω

Resolution: 0.5mm

Accuracy: 0.5%

Material:

Housing: Industrial aluminum

Electrode pole: Aluminum alloy

Medium Types:

Diesel; biodiesel; Petrol, not suitable for conducting medium

Environment rating:

Temperature operating: -40° C - +85° C

Temperature storage: -40° C - +105° C

Sealing: IP67

Weight: 40G (500mm)

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	0.5mm
Accuracy:	0.5%
Lenght:	10mm~2500mm
Digital Output:	RS232, RS485
Analog Output:	0~5V, 4~20mA
Input Voltage:	4~70V
Application:	Diesel, Oil, Biodiesel

Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
