Car Digital Tire Pressure Alarm Monitor System Bluetooth 4.0 TPMS with 4 External Sensor Support Phone APP

Name: Car Digital Tire Pressure Alarm Monitor System Bluetooth 4.0 TPMS with 4 External Sensor Support Phone APP
Brand: all-electronics-online.com
SKU: 838441905
Availability: InStock
Rating: 4.9 (113 reviews)

Price:	US $ 37-39/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Car Digital Tire Pressure Alarm Monitor System Bluetooth 4.0 TPMS With 4 External Sensor Support Phone APP

Product Description

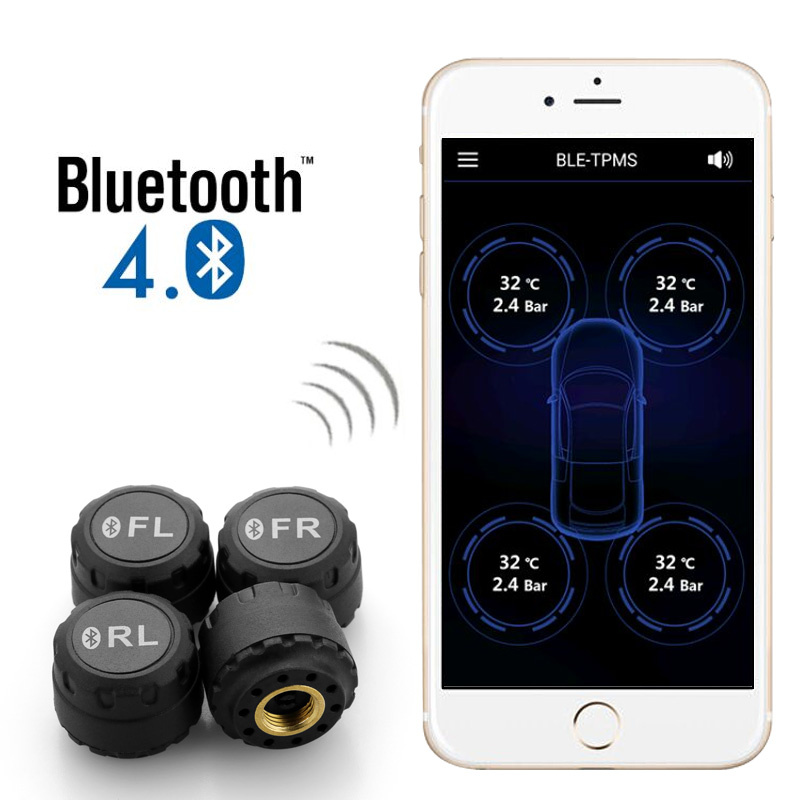

"APP Bluetooth tire pressure monitoring system" is a TPMS designed specifically for smart phones to display tire Pressure data via APP,and transfer signs through Bluetooth 4. The Bluetooth sensor transfer the pressure and temperature data of car tires during the vehicle driving process. The tire pressure and temperature data are displayed and monitored, and if the data is abnormal, the APP system will alarm timely to ensure traffic safety.
Processor:8 bits MOU/SO8, Core: ARMMO
Working Voltage: 3V
Working Current: 540uA, Sleep current:2.4uA
Bluetooth working frequency:2.4GHz, Bluetooth transmission power: 0 dBmMAX
Display mode: App mode, Response time:≤6s
Waterproof degree:IP67, Working humidity: 95%MAX
Tire pressure range:100-900kpa
Accuracy of tire pressure:±0.1Bar, Accuracy of time:±3ºC
Working temperature:-30ºC~+80ºC
Storage temperature:-30ºC~+85ºC
Battery capacity: 140mAh
Battery life: 400days(Caculating based on 4 hours of dring a day)
Weight: 8g±1g

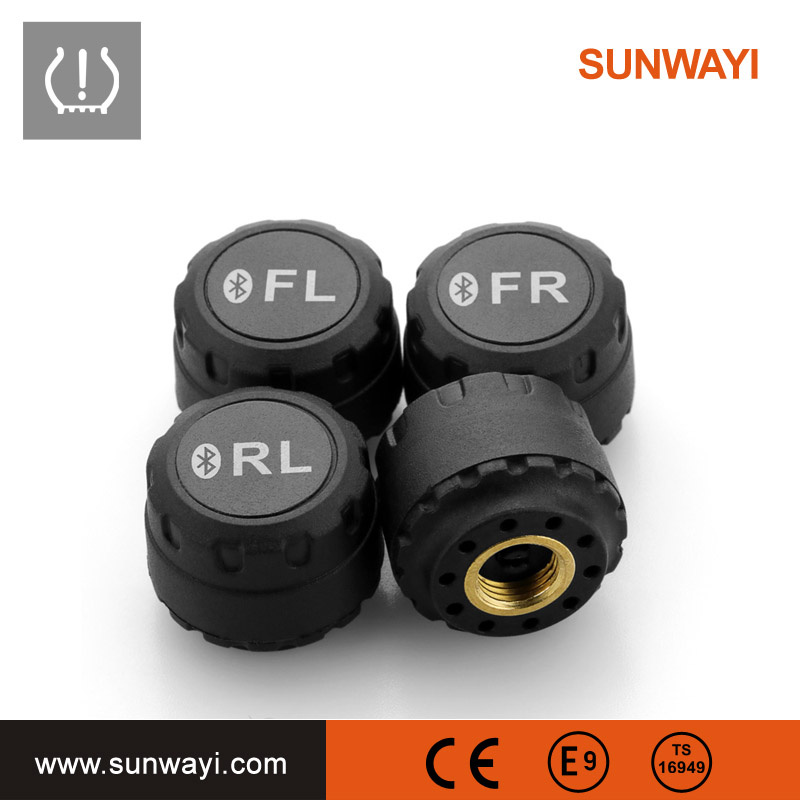

Sensor Feature

Working Voltage	3V
Working Current	540uA, Sleep current:2.4uA
Bluetooth working frequency	2.4GHz, Bluetooth transmission power: 0 dBmMAX
Display mode	App mode
Response time	≤6s
Waterproof degree	IP67
Tire pressure range	100-900kpa
Accuracy of tire pressure	±0.1Bar
Working temperature	-30ºC~+80ºC
Storage temperature:	-30ºC~+85ºC
Battery capacity	140mAh
Battery life	400days(Caculating based on 4 hours of dring a day)

Packaging Details: Gift Box Size: 170*140*35mm; Weight: 0.18 kgs

Delivery Detail: 3-7 days for sample and 15-20 business dyas for general order

Our Services

1.16 years product experience make us become a professional manufacture.

2. Abundant exporting experience

3. Patented Certificate .

4. Reply your inquiry in 24 hours

5. All the material are test by our IQC, all the PCBA are test by our workers before assembling,all the finish product must be tested at least 3 times before shipment.

6. Special material to ensure the safety

7.Since every country needs different certificates, we will make the inspection according to your need.

Notice:For more detail information,please feel free to contact us!

We are one of USA Walmart suppliers,our quality is reliable !

Prod Model:	BLEAPP-E
Processor:	8 Bits Mou/So8
Core:	Armmo
Working Voltage:	3V
Working Current:	540ua
Sleep Current:	2.4ua
Bluetooth Working Frequency:	2.4GHz
Battery Capacity:	140mAh
Battery Life:	400days(Caculating Based on 4 Hours of Dring a Day
Response Time:	6s
Keyword:	TPMS for Car
Type:	TPMS Sensor
Wiring Type:	Wireless

Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
