| Prod Model: |
TK303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Band: |
850/900/1800/1900MHz |
| Warranty: |
1 Year |
| Power Supply: |
9 V -40V |
| Software: |
Web Based Platform/APP Software |
| Work Mode: |
GSM/GPRS Work Mode |
| Feature: |
Waterproof / Mini / Build-in Antennas |
| OEM: |
Car GPS Tracker Support Customized Logo/Packing |
| Localizador GPS: |
SMS/GPRS Tracker |
| Remote Controller: |
Support |
| Type: |
GPS Tracker |
| Use: |
Insert SIM Card |
| Operating Principle: |
SMS/GPRS Tracking |
| Model: |
Tk303 |
| Screen Size: |
No Screen |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Brand: |
Coban |
Product Description
GPS tracker tk303H
Product Description
TK303 SPECIFICATION |
DIM. | 89×50×16mm |
Weight | 65g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GSM/GPRS Module | Simcom Sim340 |
GPS Module | SIRF3 chip |
GPS sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start Time | Cold status 45s Warm status 35s Hot status 1s |
Charging Voltage | 110-220V input 5V output |
Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
Storage Temp | -40°C to +85°C |
Operation Tem. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Features and functions |
-Change Password -Authorization -Single Locating -Auto track continuously -Automatic update positions of vehicle turns -GPS drift suppression -Absolute street address by SMS -Location based service (LBS) -Voice Monitor -Data logging -Data Load -Forward the third parties' message -Charges Inquiry -Alarm Function -Low battery alarm -GPS blind Spot alert -SOS -Geo-fence -Multi-area management -Movement alarm -Over speed alarm -Arm -Silent Mode -DISARM -Alarms under Arm State -Shock Sensor alarm -Check the Vehicle State -Reset Hardware -Sleep Mode -Sleep by time -Sleep by shock sensor -No sleep mode -Check IMEI -Set up Terminal (local) Time -TCP / UDP Switch -Configure parameters by USB -GPRS setting -Setting up APN -GPRS User ID and password Setup -IP and port setup -Less GPRS traffic -Modes Switch between "SMS" and "GPRS" -Set up monitor center number |
Tracking solutions |
1. SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
2. Get absolute address by SMS
3. PC Installation software tracking.

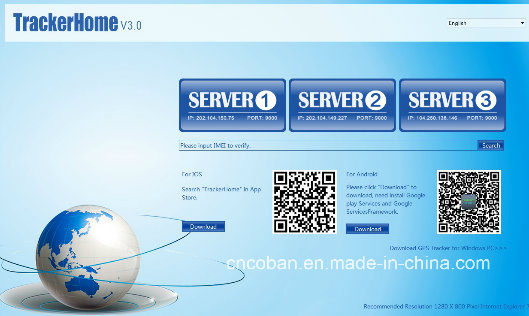

4. Web server online tracking www.gpstrackerxy.com |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory
