CAT6 Networking Keystone Module Jack
| Price: |
US $ 0.6-5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

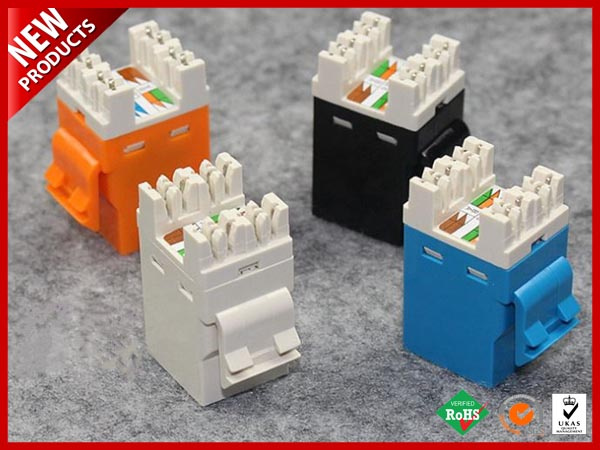

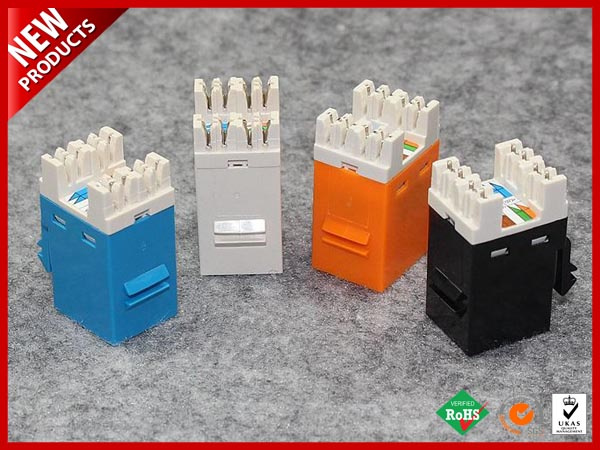

CAT6 Networking Keystone Module Jack
This Category 6 modular jack snaps into QuickPort / Keystone wall plates. The Category 6 rating means that the product is specially designed with high performance characteristics. This modular jack is used for connecting telephones, modems, fax machines, local area networks, data communications equipment and telecommunications equipment.
Item Detail
Shielded products are used to prevent the leakage of signals onto other channels in close proximity.
Toolless' jack that you can also punch down with a normal punch down tool if desired EMI/RFI Protection Noise immunity from outside electrical noise.
Data security in secure network applications.
Component rated to achieve good channel margin.
Shielded is recommended for installations in noisy environments.
Cat6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth Provides maximum performance and superior signal quality.
Includes an integrated TIA-568A/B color wiring diagram.
Backwards compatible to all lower rated category components.
Compatible with wallplates, surface mount boxes, and blank patch panels Works with all shielded Ethernet patch cables
Product Description
Cat6A RJ-45 shielded keystone jack is 8-position 8-conductor (8P8C) and is designed for networking.
Cat6A RJ-45 Jack is engineered to provide full shield protection and reliability, supporting up to Gigabit Ethernet.
Advanced printed circuit board design is tuned to provide optimum signal quality, allowing it to exceed TIA/EIA Cat6A performance standards. Use with shielded Ethernet cable.
Color Colding Information | T568B | T568A |
| 1 | White/Orange | 1 | White/Green |
| 2 | Orange | 2 | Green |
| 3 | White/Green | 3 | White/Orange |
| 4 | Blue | 4 | Blue |
| 5 | White/Blue | 5 | White/Blue |
| 6 | Green | 6 | Orange |
| 7 | White/Brown | 7 | White/Brown |
| 8 | Brown | 8 | Brown |

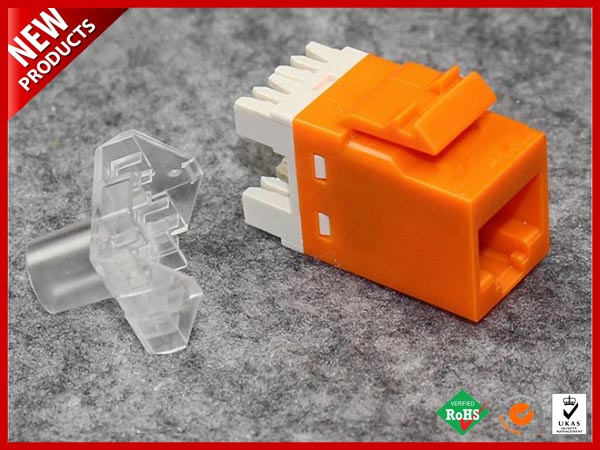

1. 3-Piece Shielded Cover Designed For Easy Cable Installation And Protection From Extemal Radiated Noise.
2. Certifications: UL Listed, ANSI / TIA / EIA-568-B.2 ,FCC.
3. Tool: Krone, AT&T(110Type). | 1 | Housing, PC UL94V-0 Rated |
| 2 | Contact Finished: 50 micro-inch Gold Over,Nickel 50-60 micro-inch |
| 3 | IDC Housing: PC UL 94V-0 White Color |
| 4 | PCB: FR4 1.6m/m thickness, 2 Layers |
| 5 | Shielded Cover |
| Prod Model: |
546 |
| Material: |
Plastic |
| DC: |
12V |
| Termination Method: |
T568A or T568B, terminated with a 110-wire tool. |
| Color: |
Blue Or Customized |
| Network Transmission: |
10Gpbs |
| Channel Bandwidth: |
250MHz |
| Matched Type: |
22 to 26AWG |
| Weight: |
0.03 lbs |
| Port: |
Single |
| Housing Material: |
Gold Plated |
| Usage: |
Mobile phone |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
