UTP CAT6A Networking Modular Keystone Jacks

Name: UTP CAT6A Networking Modular Keystone Jacks
Brand: all-electronics-online.com
SKU: 691474321
Availability: InStock
Rating: 4.6 (39 reviews)

Price:	US $ 0.1-0.65/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

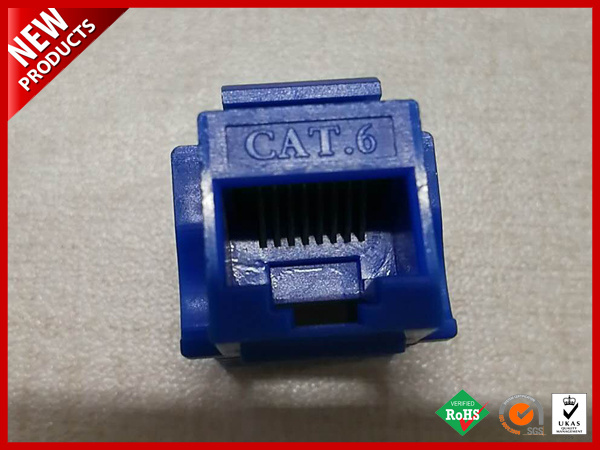

UTP Cat6a Networking Modular Keystone Jacks

Item Description

NEATEL unshielded copper keystone jack series includes high performance Category 6 jacks conforming to ANSI/TIA standard. These jacks are designed for fast and easy snap-in and out of wall plates and patch panels. The jacks are designed in 180° style for easy access and crimping.

Keyed Characteristics

• Available in White, Blue,Green,Yellow, Red & Black colours
• Robust and installer friendly design
• Exceeds Cat6 Performance
• Compatible with 22-24AWG Solid Cables
• Compatible to T568A, T568B wiring pattern
• RoHS Compliant
• UL Listed, UL/ETL verified for Channel
• ANSI/TIA-568-C.2 • ISO/IEC-11801, Class E
• Performance Characterized up to 600 MHz

Application

• Used in LAN working area, equipment, data communication, integrated wiring. (Mainly a modular device for managing front-end information points in the work area. After the front-end information point cable enters the work area, it is first wired into the module, and then the jumper is used to connect the module and the working equipment. Its application is sturdy and Easy to install, reduce installation and operating costs, easy to manage )

Product Batching

• Interoperability Requirements Interoperability with Connectors of the Same Standard Series

Benefits

ELECTRICAL CHARACTERISTICS

Voltage Rating	72V dc max
Current Rating	1.5A max
Contact Resistance	≤ 1 m max per contacts
Insulation Resistance	500M min @ 500Vdc
Propagation delay	2.5ns Max @ 1-100

MHz.MECHANICAL CHARACTERISTICS

Plug retention force	>50N for 60s±5s
IDC Termination	200 times minimum
Jack Contact Material	Phosphor bronze 50μ" gold over 100μ" nickel plating
Conductor Compatibility	22-24AWG Solid Cable
Insertion/Extraction Life with Plug	750 cycles minimum

Prod Model:	63463
Color:	Blue
Material:	PC Plastic
Port:	Single
Work Type:	Injected
Connector:	RJ45
Voltage Rating:	72V DC max
Current Rating:	1.5A max
Packaging:	500 PCS
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	GS
Condition:	New
