| Prod Model: |
NPF100-12 |
| Appearance: |
Orange |
| Type: |
Lead-Acid Batteries |
| Usage: |
UPS |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

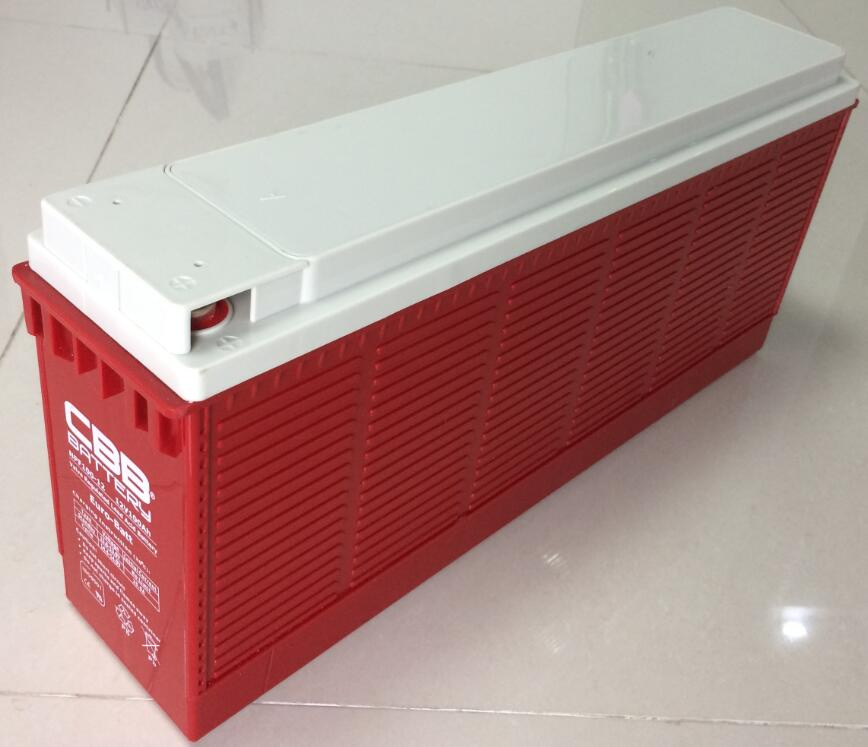

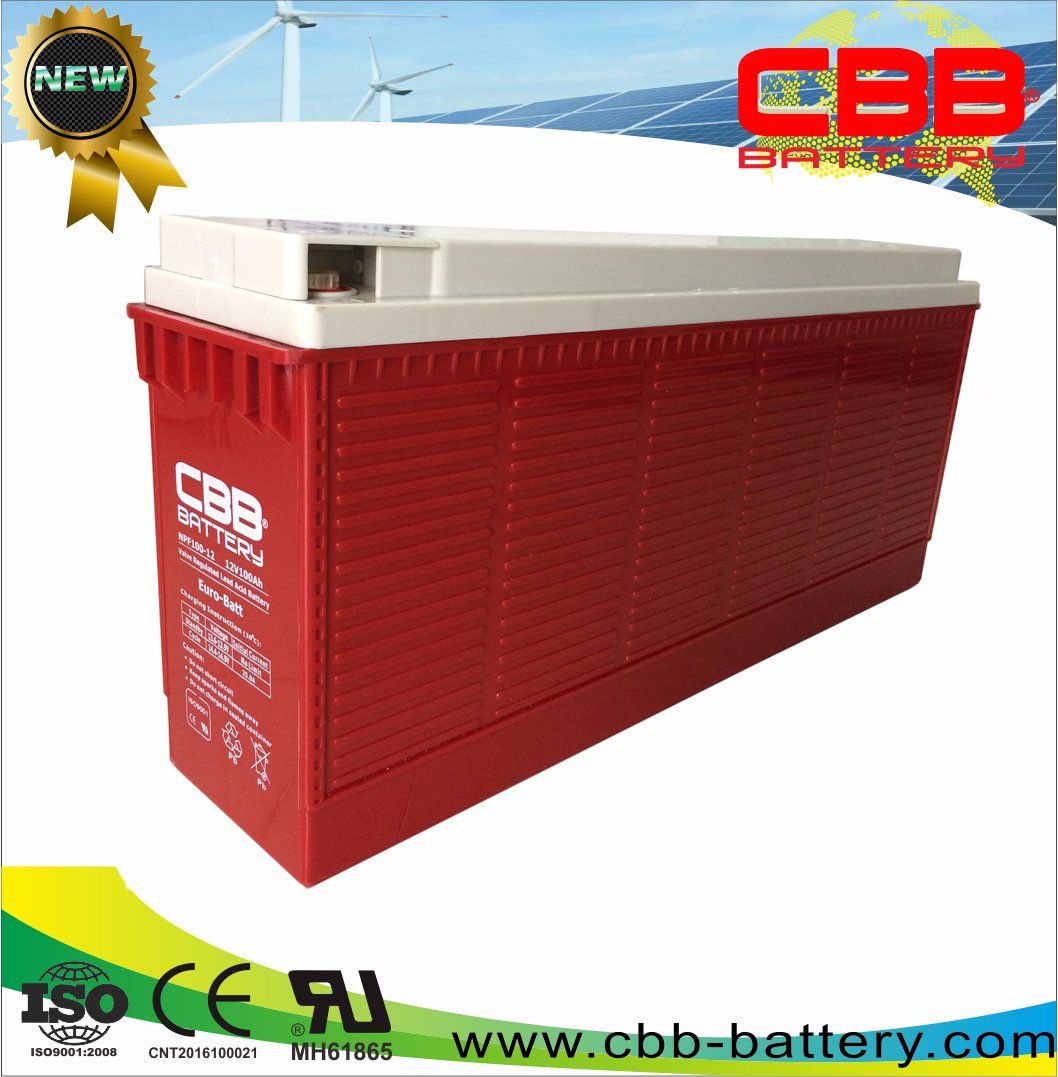

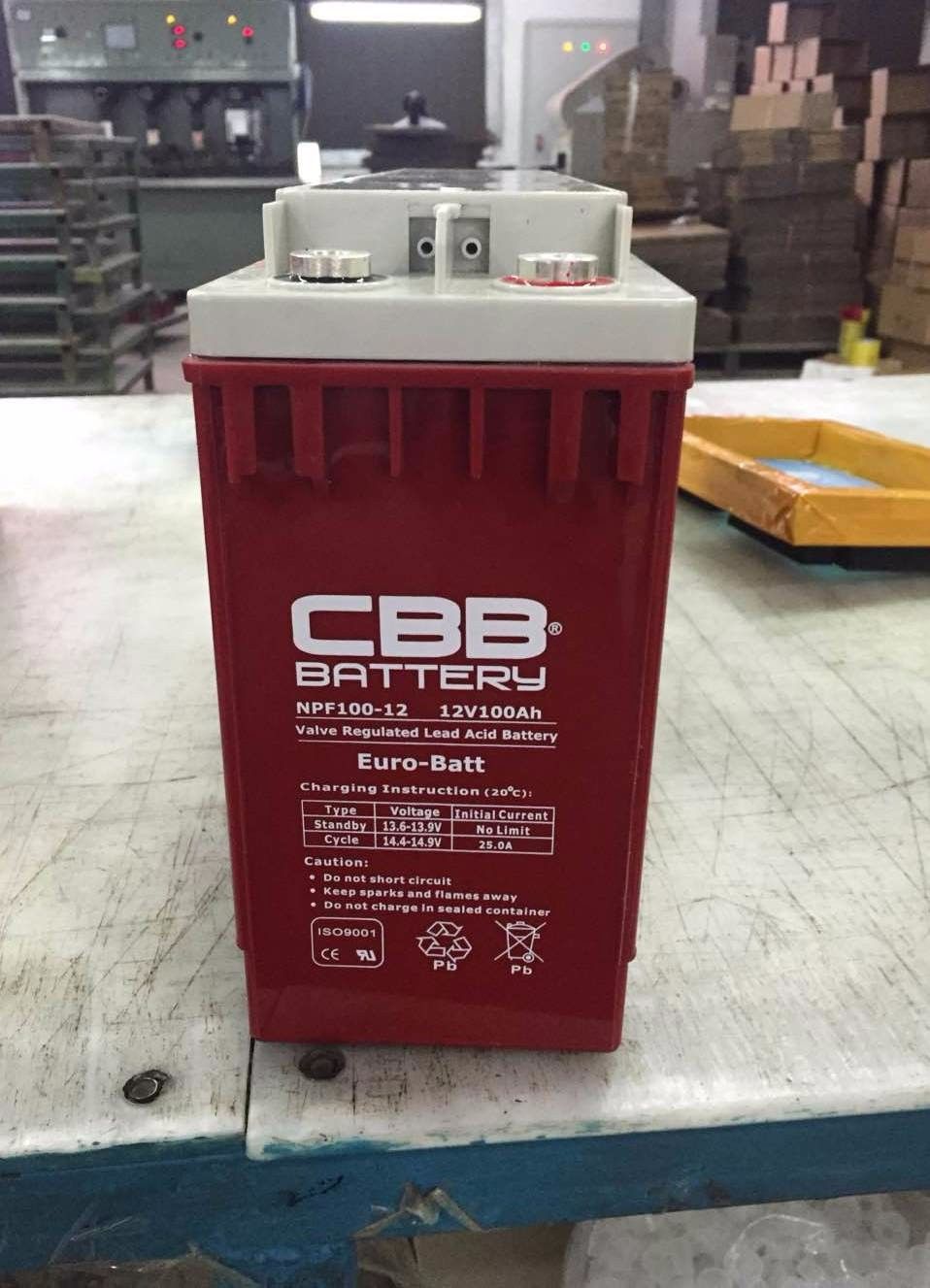

CBB® 12V 100Ah Front Access Terminal AGM Battery For Telecom, IT ApplicationsStandby battery
Eurobatt batteries
Front access Terminal battery
Front Terminal AGM battery
Lead acid battery
UPS Battery
Standby Battery

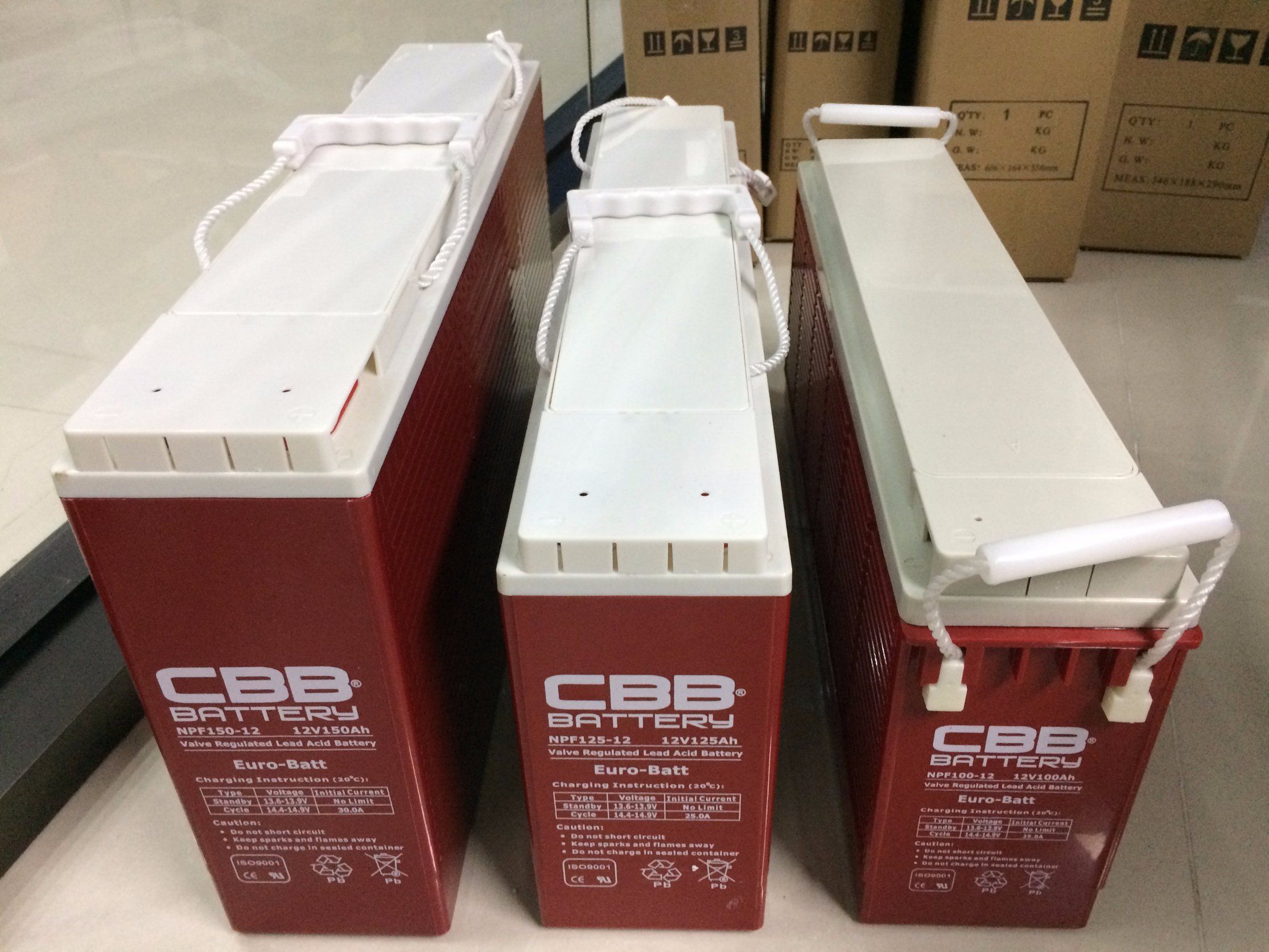

NPF SERIES Front Access Terminal Batteries for Telecom/IT ApplicationsDescriptionThe NPF (Front Access) Series is especially designed for telecommunication use with 12+ years design life in float service.
NPF series batteries use the latest Valve Regulated Lead Acid technology, yielding an expected life of 12 years under normal float charge. Front Access Terminal gives the battery more flexible installation and maintenance in 19'' & 23'' relay rack and cabinet enclosures.
Features-12 years design life at floating condition
-Wide operating temperature range from -15° C to 55° C
-Advanced paste formula with increased recharge efficiency
-Front access terminal with standard width for 19" and 23" ETSI racks
-30% decreased float current lead to excellent high temperature resistance
-Thick flat plate with high Tin low Calcium alloy
-Low self-discharge rate
-Excellent deep discharge recovery capability
Applications:-19-inch/23-inch standard power supply cabinets
-Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and
Broadcasting Stations
-Power Supply System used for Special or Local Area Network(LAN)
- Signal System & Emergency Lighting Systems
- EPS & UPS Systems
Certificates: ISO9001&14001, CE, UL
Standard: JIS, DIN, IEC & BS6290-4
Specification-Battery Type: Eurobatt Batteries-Front Access Terminal AGM batteries
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| NPF55-12 | 12 | 55 | 277 | 106 | 223 | 223 | 16.0 | T2 |
| NPF80-12 | 12 | 80 | 562 | 114 | 188 | 188 | 25.0 | T3 |
| NPF100-12 | 12 | 100 | 507 | 110 | 223 | 223 | 29.4 | T5 |
| NPF110-12 | 12 | 110 | 394 | 110 | 286 | 286 | 30.5 | T5 |
| NPF125-12 | 12 | 125 | 552 | 110 | 239 | 239 | 38.0 | T5 |
| NPF150-12 | 12 | 150 | 551 | 110 | 288 | 288 | 44.0 | T5 |
| NPF155-12 | 12 | 155 | 560 | 125 | 280 | 280 | 45.2 | T5 |
| NPF160-12 | 12 | 160 | 551 | 110 | 288 | 288 | 44.5 | T5 |
| NPF175-12 | 12 | 175 | 546 | 125 | 316 | 324 | 53.5 | T5 |
| NPF180-12 | 12 | 180 | 560 | 125 | 316 | 316 | 54.0 | T5 |
| NPF190-12 | 12 | 190 | 560 | 125 | 316 | 316 | 55.3 | T5 |
| NPF200-12 | 12 | 200 | 560 | 125 | 316 | 316 | 57.0 | T5 |
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
