Guangzhou CBB Battery Technology Co., Ltd. >> Long Life 12V 200ah Front Terminal Battery for Solar /UPS/ Telecom System

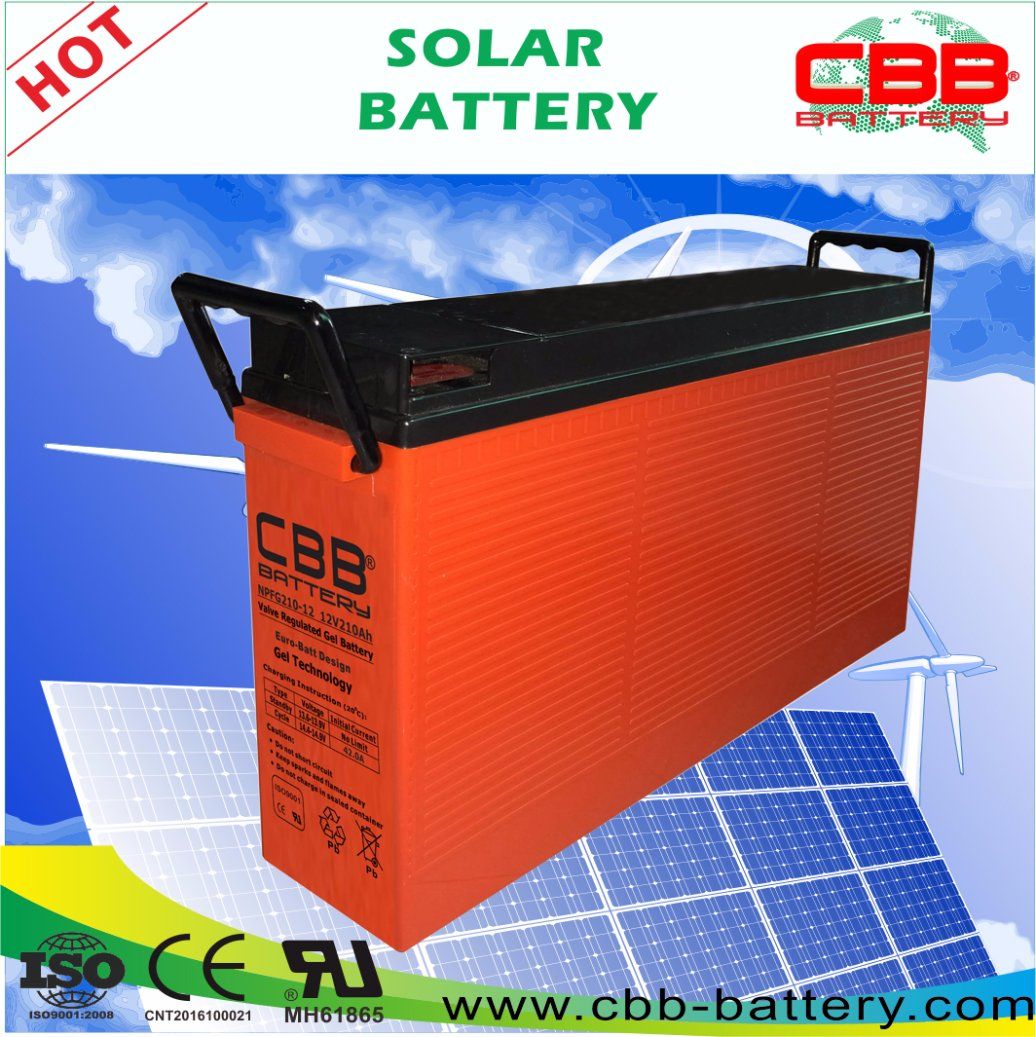

Long Life 12V 200ah Front Terminal Battery for Solar /UPS/ Telecom System

Long Life 12V 200ah Front Terminal Battery for Solar /UPS/ Telecom System
Price: US $ 215-230/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Long life 12V 200ah front terminal battery for solar power/ UPS/ telecom system

NPFG SERIES Front Access Terminal GEL Batteries for Telecom/IT Applications


Description
The NPF (Front Access) Series is especially designed for telecommunication use with 10+ years design life in float service.
By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and
Front Access connection for fast, easy installation and maintenance. This series is highly suited for telecom applications,
UPS systems and other back up applications.

Specification

-Battery Type: Eurobatt Batteries-Front Access Terminal GEL batteries
-Standard: JIS, DIN, IEC & BS6290-4
-Model No.: NPFG200-12
-Nominal Voltage: 12V
-Nominal capacity: 200Ah
-Dimension: 560*125*316*316mm
-Weight:57.2 kgs
-Terminal: Threaded post -T5


Features

-12-15 years design life at floating condition
-Wide operating temperature range from -15° C to 55° C
-Advanced paste formula with increased recharge efficiency
-Front access terminal with standard width for 19" and 23" ETSI racks
-30% decreased float current lead to excellent high temperature resistance
-Thick flat plate with high Tin low Calcium alloy
-Low self-discharge rate
-Excellent deep discharge recovery capability

Applications:
-19-inch/23-inch standard power supply cabinets
-Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and
Broadcasting Stations
-Power Supply System used for Special or Local Area Network(LAN)
- Signal System & Emergency Lighting Systems
- EPS & UPS Systems
-Broadband
-Electric Utility
-Telecom application
-Central office
-Fire Alarms and Security systems
-Replacement of open-type stationary

Certificates: ISO9001&14001, CE, UL
Standard: JIS, DIN, IEC & BS6290-4

 NPFG Series-Front Terminal GEL Batteries for Telecommunication /ITS System
Model NoRated Voltage(V)Capacity (Ah)DimensionWeightTerminal Type
LengthWidthHeightTotal Heightkg
 mmmm mm mm
NPFG55-12125527710622322316.1T2
NPFG80-12128056211418818825.1T3
NPFG100-121210050711022322329.5T5
NPFG110-121211039411028628630.6T5
NPFG125-121212555211023923938.2T5
NPFG150-121215055111028828844.2T5
NPFG155-121215556012528028045.4T5
NPFG160-121216055111028828844.7T5
NPFG175-121217554612531632453.7T5
NPFG180-121218056012531631654.2T5
NPFG190-121219056012531631655.5T5
NPFG200-121220056012531631657.2T5
Packaging & Shipping

Payment terms:

1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash
Trade terms: ex works or Fob Guangzhou/Shenzhen

Package details:
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.

Delivery time :
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.

Minimum order quantity:
1. if battery is smaller than 17ah,MOQ would be 200-1000pcs as per actual battery size if battery is bigger than 17ah, MOQ would be 50-200pcs as per actual battery size
2. if order is big quantity or 1*20'fcl load , the price would be much competitive

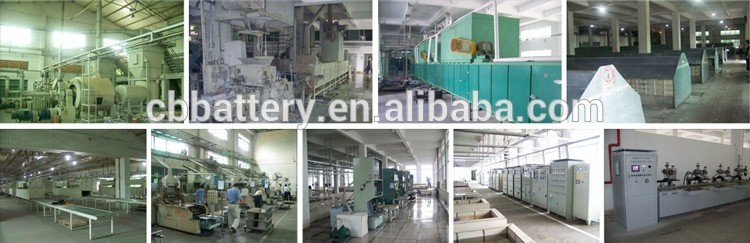

Product Process



Our Advantage

Koyama® NP Series batteries are the culmination of over three decades of battery manufacturing experience, offering:
§ High energy density
§ Sealed leak proof construction
§ Excellent performance in either float or cyclic applications
§ Maintenance free
§ Rechargeable, lead acid battery
§ Long service life
Koyama®brand NP Series batteries, the original and only true NP product, are the sought after power source for:
§ Security and alarm systems
§ CCTV's
§ UPS systems
§ Emergency energy lighting systems
§ OEM electrical equipment
§ Electronic applications

Company Information

CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery; with a factory area of 65mu and production area more than 30000m2.Our production capacity has reached more than 3 million KVAH per year.

We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.

In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.

We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.

As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, ROHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer's expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.

Customer Photo



Certificate





Prod Model: NPFG200-12
Weight: 57.2kgs
Color: Red
OEM Service: Acceptable
Warranty: 2 Years
Span Life: 12-15 Years
Certificate: Ce , UL, RoHS, ISO9001
Type: Lead-Acid Batteries
Usage: Solar Power System
Nominal Voltage: 12V
Shape: Square Battery
Rechargeable: Chargeable
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.

We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.

In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.

We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.

As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.

With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
