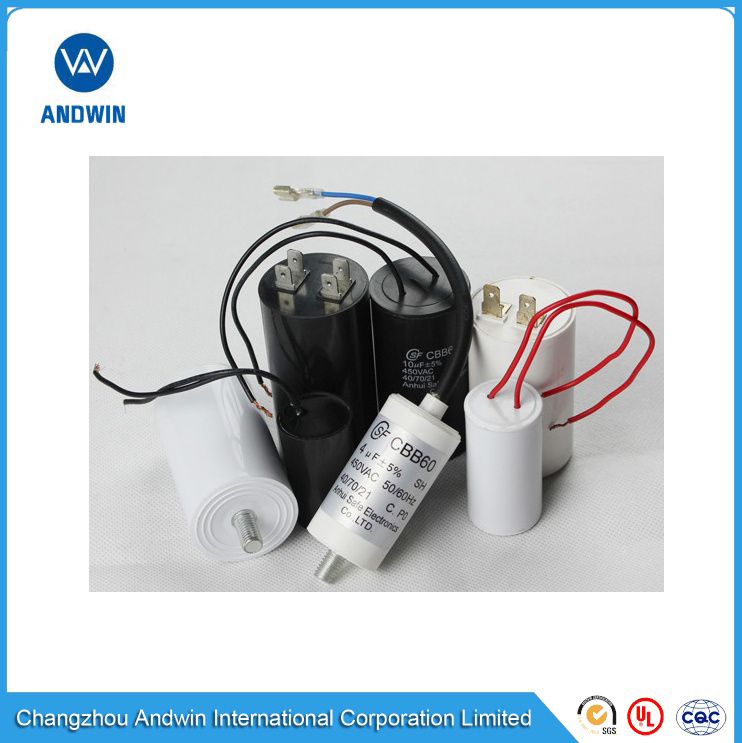

Cbb60 Capacitor for Pump
| Price: |
US $ 0.5/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CBB60 |
| AC Capacitor Capacitance Tolerance: |
+/-5% |
| AC Capacitor Security Level: |
P0/P2 |
| AC Capacitor Standard: |
IEC60252-1:2001 |
| Operating Life: |
10000h (Class B), 3000h (Class C) 30000h(Class a) |
| Operating Frequency: |
50Hz/60Hz |
| AC Capacitor Filling: |
Epoxy Resin |
| AC Capacitor Can: |
Plastic Can |
| AC Capacitor Materials: |
Metallized Film |
| Package Number: |
50PCS/Carton |
| Type: |
Polypropylene Capacitor |
| Application: |
AC / Motor |
| Package Type: |
Through Hole |
| Capacitance: |
1UF~120UF |
| Structure: |
Single Phase Capacitor |
| Manufacturing Material: |
Metallized Film |
| Usage: |
AC Motor, Water Pump;Lighting, Condenser, Refriger |
Product Description

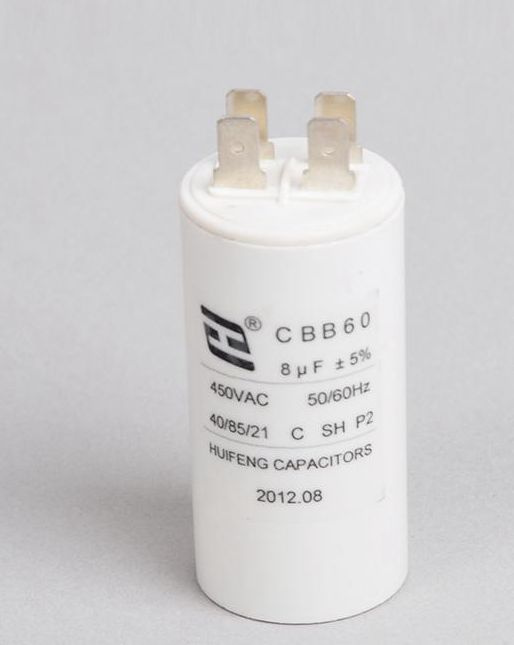

Cbb60 Capacitor for Pump
Motor capacitor, oil capacitor, IGBT capacitor, aluminum case capacitor , anti-explosion capacitor ,CBB65 motor run capacitor,CBB61 capacitor, air conditioner capacitor ,fan capacitor, inverter welding capacitor, The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability. Features:1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.2:Self-healing property.3:High stability and reliability. Specifications:| reference standards | GB/T 3667.1 (IEC60252-1) |
| Climatic category | 40/70/21, 40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | P0/P2 |
| Voltage range | 200~500VAC |
| Capacitance range | 1~60 µF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4 (100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or
2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ.µF(100Hz,20ºC,1min) |
Dimensions:| CBB60, Plastic case, plain bottom, 15cm double wires. |
| Type | value | detail |
| Capacitor | 14 μF | 250v AC ou 300v AC |
| Capacitor | 10 μF | 250v AC ou 300v AC |
| Capacitor | 8 μF | 250v AC ou 300v AC |
| Capacitor | 4 μF | 350v AC ou 400v AC |
| Capacitor | 2.5 μF | 350v AC ou 400v AC |
| Capacitor | 3 μF | 350v AC ou 400v AC |
| Capacitor | 6 μF | 350v AC ou 400v AC |
Other specifications, Size and terminal outside table are negotiable.
Applications: Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc. Technical Specifications:Standard:IEC 60252-1:2001Technical features:Climate type:40/70/21 or 40/85/21Capacitance tolerance:± 5%Insulation Resistance:≥3000S(MΩ·µF)Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)Application requirements:Altitude:≤2000mResidual voltage in application :less than 10% of rated voltage.Allowed maximum voltage: less than 1.1 times of rated voltagePermissible maximum current: less than 1.3 times of rated current
