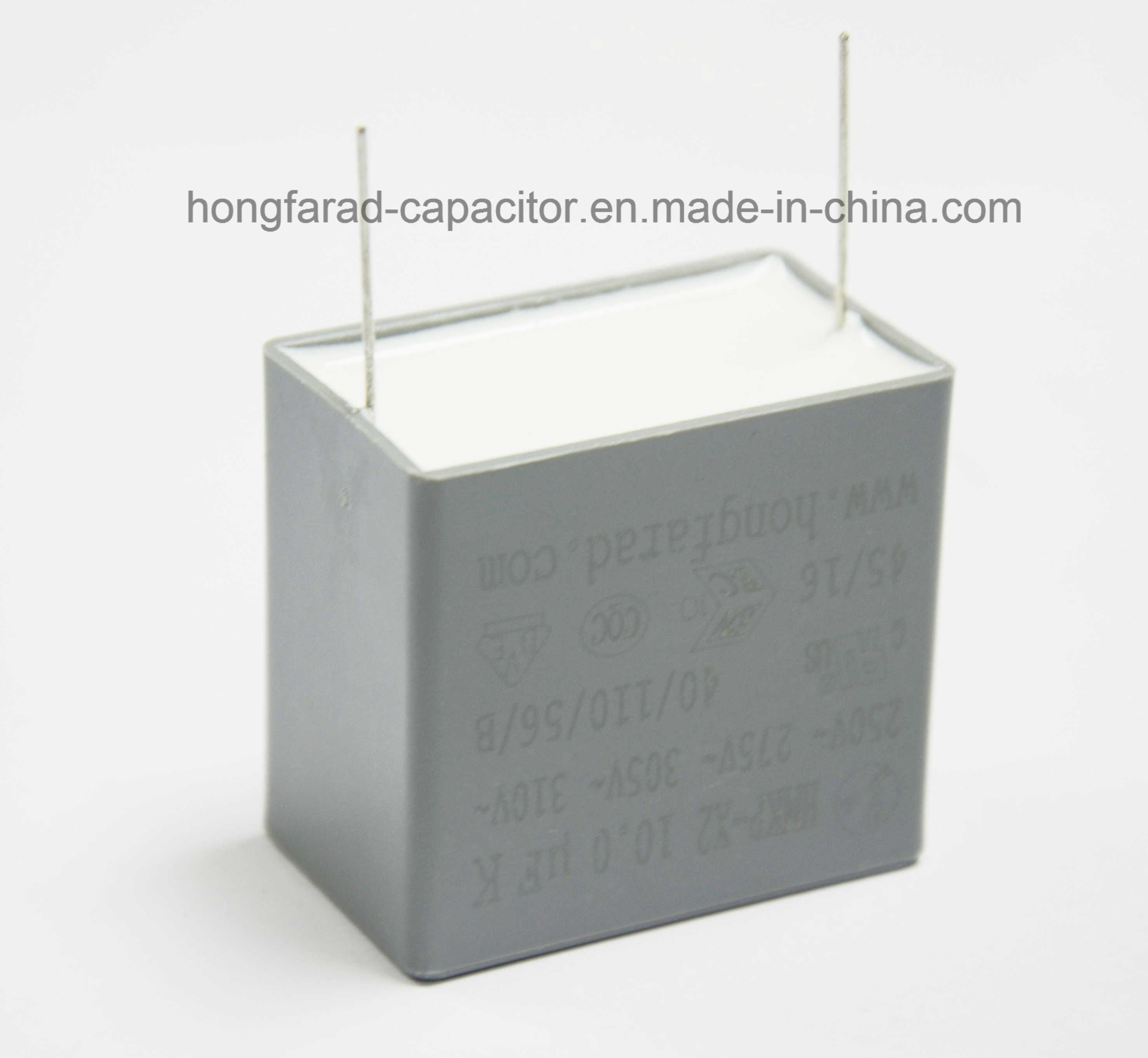

Cbb62 Capacitor X2 Class Film Capacitor High Quality MKP

Name: Cbb62 Capacitor X2 Class Film Capacitor High Quality MKP
Brand: all-electronics-online.com
SKU: 806567695
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 0.2-1.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Features

1. Metallized polypropylene structure
2. Withstanding overvoltage stressing
3. Excellent active and passive flame resistant abilities

4. Widely used across-the-line, interference supression circuit, etc.

Specifications

Climatic Category	40/110/56/B
Rated Voltage	275/305Vac, 310Vac
Capacitance Tolerance	0.0010uf~10.0uf
Capacitance Tolerance	±10%(K) , ±20%(M)

Voltage Proof : Between Terminals: 2000Vdc(2s) C≤1.0uF

1800Vdc(2s) C>1.0uF

Between Terminals to Case: 2110Vac(min)

Dissipation Factor: 0.001uF≤Cr≤0.47uF ≤0.1% (1KHz 20ºC) ≤0.2%(10kHz, 20ºC)

0.47uF≤Cr≤1.0uF ≤0.2% (1KHz 20ºC) ≤0.4%(10kHz, 20ºC)

Cr>1.0uF ≤0.3%((1KHz 20ºC)

Insulation Resistance: ≥15 000MΩ, Cr≤0.33uf

≥5 000s Cr>0.33uf (20ºC,100V,1 min)

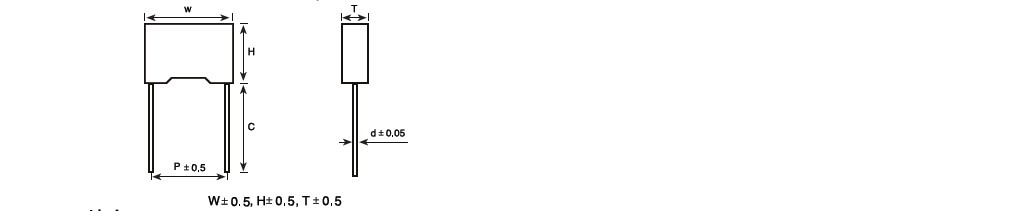

Outline Drawing

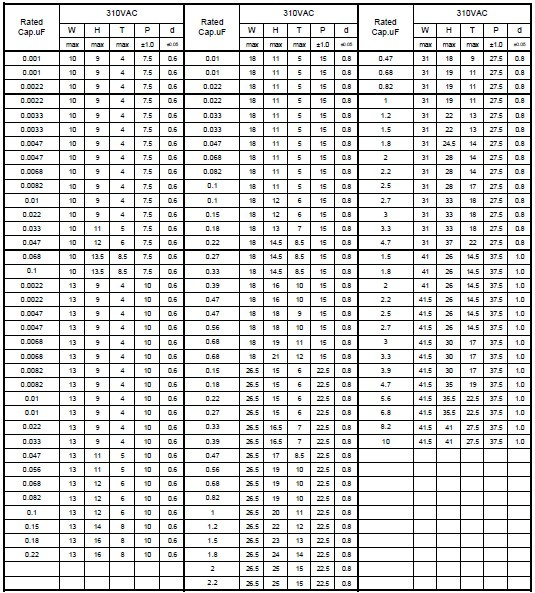

Dimension(mm)

Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

Company Information

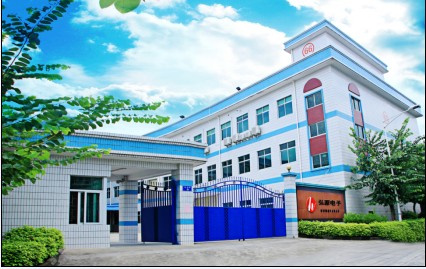

Welcome to visit our factory!

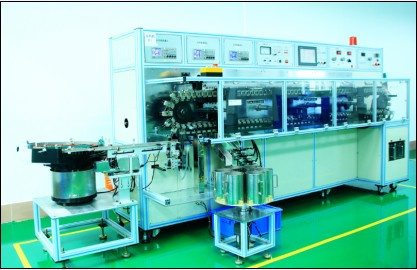

Laboratory

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.

Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.

Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.

Question 5 : What's your delivery time?
Answer : It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.

Prod Model:	MKP X2 CBB62
Rated Voltage:	250/275/305/310VAC

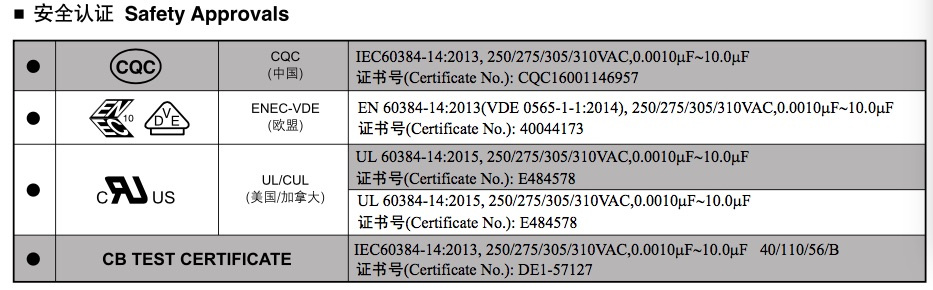

Safety Approvals:	CQC ENEC-VDE UL/cUL
Class:	X2
Type:	Polypropylene Capacitor
Application:	General Purpose
Package Type:	Through Hole
Capacitance:	0.0010UF~10.0UF

Our Capacitors can take 110C Heat

Hongfarad' capacitors can safely reach operating temperatures of up to 110C, which is 30C higher than the industry average. We ensure this durability by incorporating top-notch components from Germany, Japan and South Korea. These factors have attracted the repeat business of multinationals like Samsung, LG, GE, etc.

Offering Halogen-free and RoHS-compliant Products

All of our products are both halogen-free and compliant with the RoHS Directive, giving them added value in the eyes of environmentally conscious consumers. Our 30 QC staff members, each with over seven years of experience, ensure our defect rate remains close to zero percent. Our R&D team develops one to three new products every quarter to keep you up to speed with the latest industry innovations.

We Keep 2 Million Units In-stock

We deliver your finished orders in less than two weeks, ensuring you meet your time-to-market objectives. This speed is assured by the fact that we keep two million units in-stock at all times. It also results in sample delivery lead times as short as 24 hours. Contact us today.
