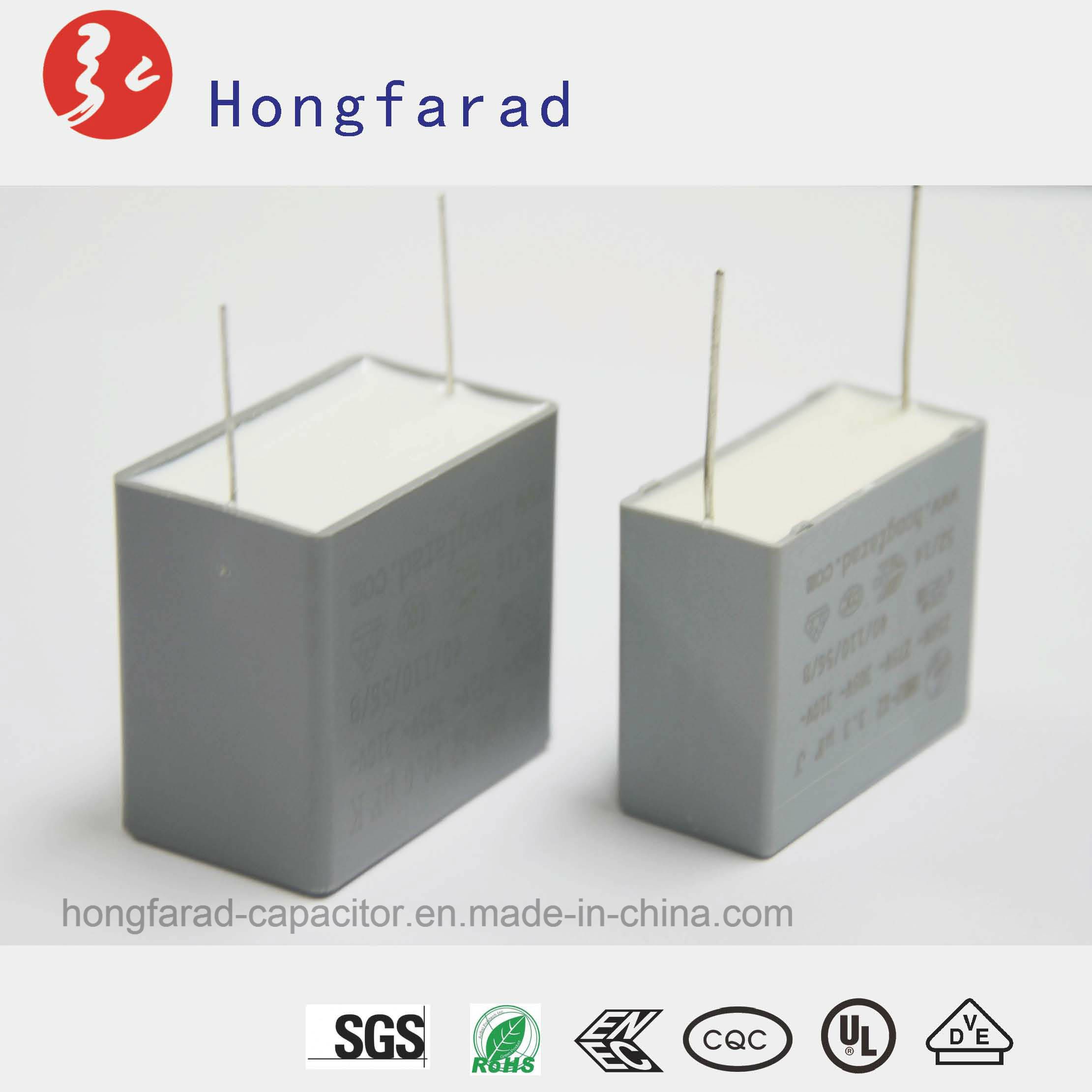

MKP X2 Metallized Polypropylene Film Capacitor with Safety Approvals

Name: MKP X2 Metallized Polypropylene Film Capacitor with Safety Approvals
Brand: all-electronics-online.com
SKU: 805625125
Availability: InStock
Rating: 5 (43 reviews)

Price:	US $ 0.0171-0.0216/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Dongguan Hongfarad Electronic Co,.Ltd

Dongguan Hongfarad Electronic Co,.Ltd established in 2003 and specialized in developing,manufacturing and selling metalized film capacitors, we built a new production base in Tangxiatown and our products widely used in white household appliances, LED lighting, comunication,

industrial control, automotive electronics, green energy resources fields. We provide an"one-stop solution" of metalized film capacitors for whole machine customers and our products are sold worldwide.

Climatic Category: 40/110/56/B

Rated Voltage : 275/305Vac,310Vac,

Capacitance Range: 0.0010uf~10.0uf

Capacitance Tolerance: ±10%(K) , ±20%(M)

Voltage Proof : Between Terminals: 2000Vdc(2s) C≤1.0uF

1800Vdc(2s) C>1.0uF

Between Terminals to Case: 2110Vac(min)

Dissipation Factor: 0.001uF≤Cr≤0.47uF ≤0.1% (1KHz 20ºC) ≤0.2%(10kHz, 20ºC)

0.47uF≤Cr≤1.0uF ≤0.2% (1KHz 20ºC) ≤0.4%(10kHz, 20ºC)

Cr>1.0uF ≤0.3%((1KHz 20ºC)

Insulation Resistance: ≥15 000MΩ, Cr≤0.33uf

≥5 000s Cr>0.33uf (20ºC,100V,1 min)

Features:
1. Metallized polypropylene structure
2. Withstanding overvoltage stressing
3. Excellent active and passive flame resistant abilities
4. Widely used across-the-line, interference supression circuit, etc.

1.High quality commitment
2.Competitive prices
3.Professional factory with more than 10 years experience
4.Fast lead time and best after service
5.Strong research center & strong sales
6.Quick response from sales representatives
7.One stop solution for all kind of customers

Contact : Miss Sophie
Mobile : 86-18576369561
Tel : 86-769-873333112
Add : Dali Industrial Zone, Qingxi Town, Dongguan, Guangdong, China

Q : Are you a manufacturer or a trading company ?
A : We are a manufactuer specialized in metalized film capacitor with over 10 year experience.

Q : How can I get some samples ?
A : We are honored to offer you samples for free, but the new clients are expected to pay the
express cost, and the charge will be deducted from the payment for formal order.

Q : Can your factory print my logo on the goods ?
A : Yes, we can print your own logo on the goods or the packing box.

Q : What's your MOQ of this product ?
A : MOQ is 3000 pcs, if less, please check with us firstly.

Q : What's your delivery time ?
A : It is about 2-3 weeks, if your goods required urgently, please contact us firstly.

Prod Model:	CBB62 MKP
Safety Approvals:	CQC ENEC-VDE UL/cUL
Class:	X2
Rated Voltage:	275/305VAC 310VAC, 40/60Hz
Type:	Polypropylene Capacitor
Application:	General Purpose
Package Type:	Through Hole
Capacitance:	0.0010UF~10.0UF

Our Capacitors can take 110C Heat

Hongfarad' capacitors can safely reach operating temperatures of up to 110C, which is 30C higher than the industry average. We ensure this durability by incorporating top-notch components from Germany, Japan and South Korea. These factors have attracted the repeat business of multinationals like Samsung, LG, GE, etc.

Offering Halogen-free and RoHS-compliant Products

All of our products are both halogen-free and compliant with the RoHS Directive, giving them added value in the eyes of environmentally conscious consumers. Our 30 QC staff members, each with over seven years of experience, ensure our defect rate remains close to zero percent. Our R&D team develops one to three new products every quarter to keep you up to speed with the latest industry innovations.

We Keep 2 Million Units In-stock

We deliver your finished orders in less than two weeks, ensuring you meet your time-to-market objectives. This speed is assured by the fact that we keep two million units in-stock at all times. It also results in sample delivery lead times as short as 24 hours. Contact us today.
