Cbb80 Lighting /Polypropylene Film Capacitor

Name: Cbb80 Lighting /Polypropylene Film Capacitor
Brand: all-electronics-online.com
SKU: 838065625
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB80
Service:	OEM and ODM
Warranty Time:	3 Years
Delivery Time:	2 Weeks
Type:	Polypropylene Capacitor
Application:	Lighting
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

Product Description:
CBB80 series Lighting capacitor ,SH ,for power factor
Capacitance: 2 to 50uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.

Small size, small loss and excellent self-healing property.
Very small dissipation factor, small inherent temperature rise.
High insulation resistance.
Good capacitance stability.
Available for fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.

Products feather	ITEM NO.	Rated Voltage (VAC)	Temperature (°C)	Rated capacitance (uf)	Diameter (D)mm	Length (L1)mm	PCS/CTN	G.W / N.W (KG)	MEASUREMENT (CM)
	CBB80-3	250	85	18	40	72	100	8.3/7.7	45.5x24.5x21
		250	105	3.4	30	67
		250	105	6	35	67
		250	105	6.3	35	67
		250	105	8	35	67
		250	105	9	35	72
		250	105	12	35	72	100	6.5/5.9	40x21x23
		250	105	14	35	72	100	6.4/6	40x21x23
		250	105	18	40	85
		250	105	20	40	85	100	7.4/7	40x21x23
		250	105	25	40	85
		250	105	32	40	85	100	9.5/9.1	45.5x24.5x25
		250	105	42	50	105
		250	105	45	50	105
		250	105	50	50	105
Products name	CBB80-3 compensation capacitor for lighting fixtures
Products type	Aluminium case cable type with stud
Technical parameter	1. Rated frequency: 50/60HZ
	2. Capacitance range: 1-50uf
	3. Capacitance deviation: +/-5%
Certificate	UL, CE ,ISO9001-2008,ROHS

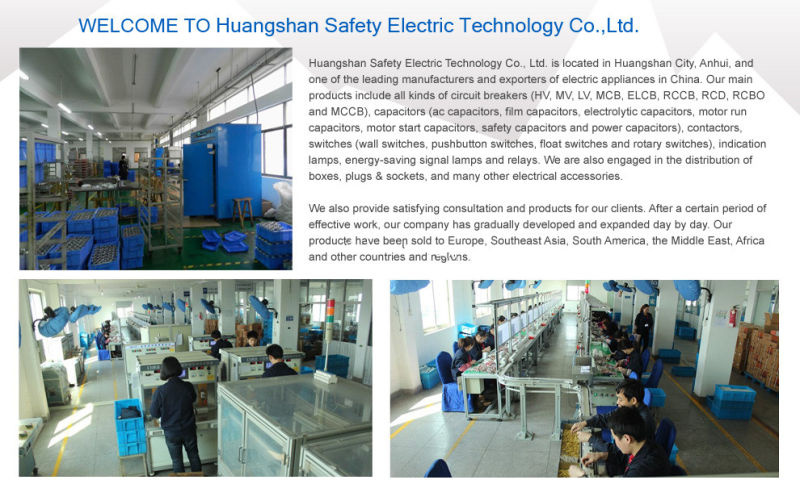

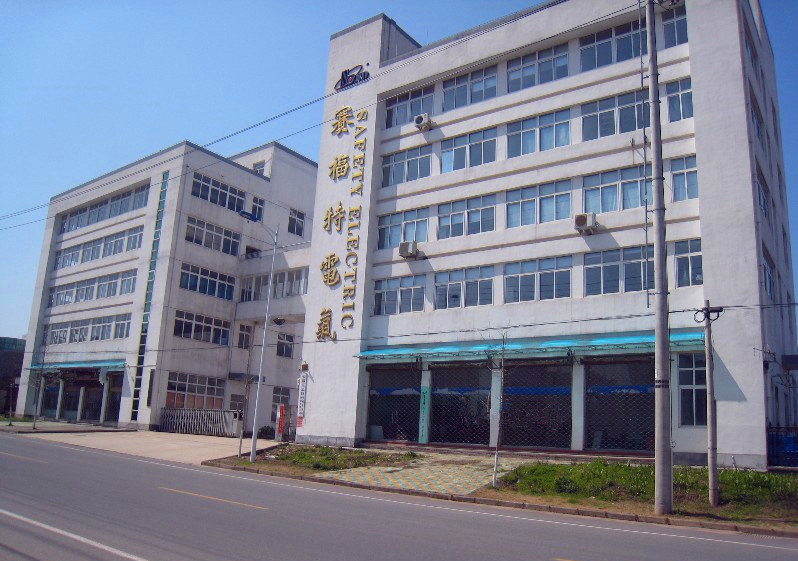

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
